TREX 150 · RH15E21X / RH15E22X

TREX T15 Combo

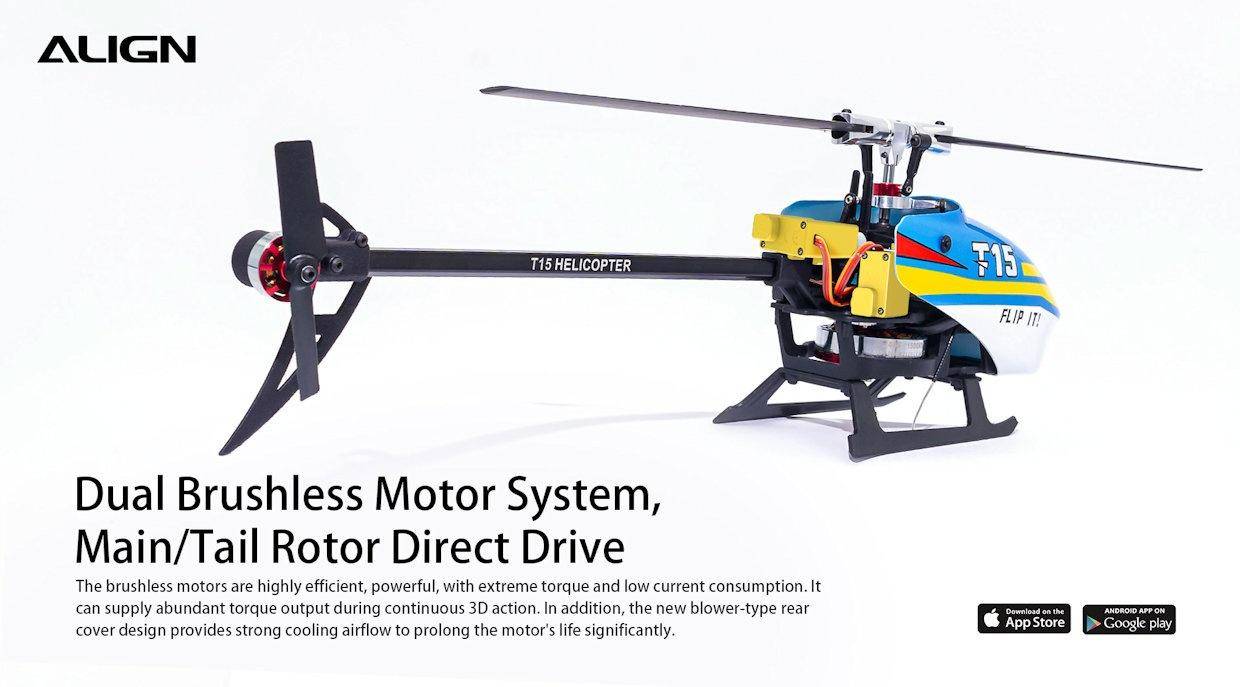

Align’s smallest and most petite 3D helicopter carries the same pedigree and design concept as the rest of the TREX line: strong power, superior flight-control stability and high-end components, with direct-drive brushless main and tail motors.

Buy nowManual (PDF)Get the app

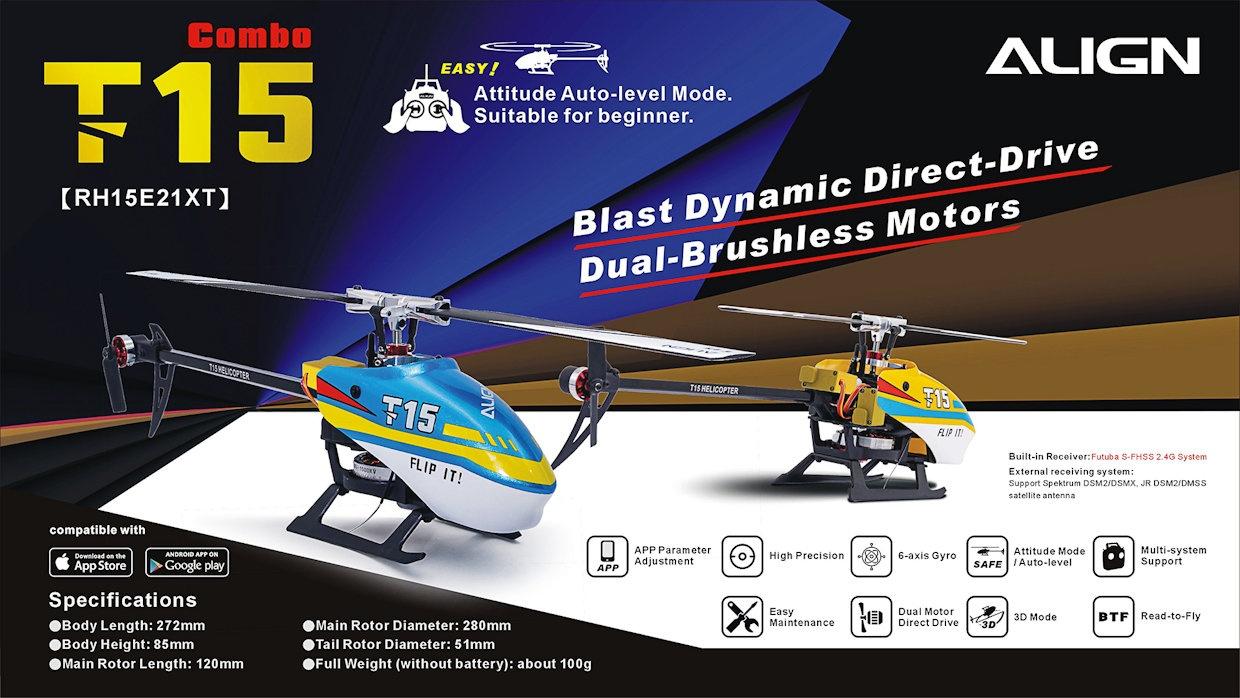

TREX T15 Combo box art: blast dynamic direct-drive dual brushless motors
Length
272mm · 10.71 in
Height
85mm · 3.35 in
Main rotor
280mm · 11.02 in
Tail rotor
51mm · 2.01 in
Weight
100g · no battery
Drive
Directmain & tail

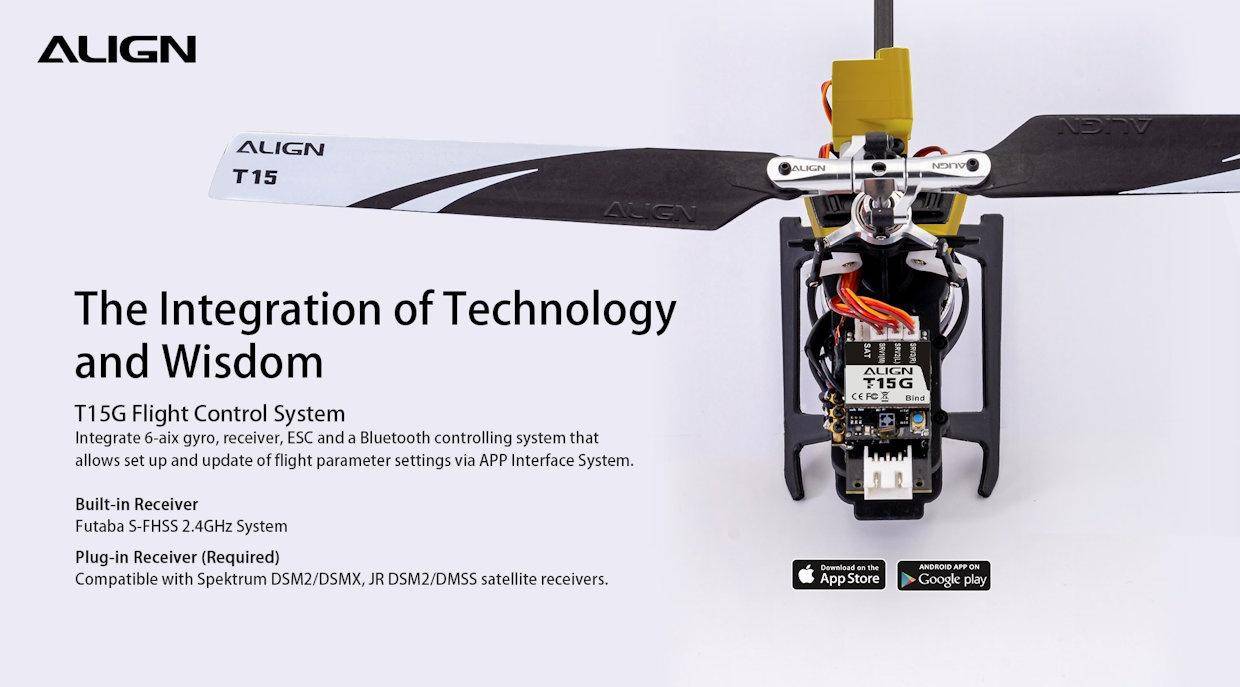

T15G FLYBARLESS SYSTEM

Big-heli brains in a 100 g airframe

  • 6-axis gyro, ARM Cortex M4 32-bit processor, ALIGN A.BUS receiver, Bluetooth and dual ESC in one unit.
  • Attitude Auto-level Mode gives beginners a fun first flight, and rescues more experienced pilots who lose orientation.
  • Set up with the free T15G app: pick a predefined flight style or fine-tune every parameter to suit how you fly.
Download the T15G app on the App StoreGet the T15G app on Google Play

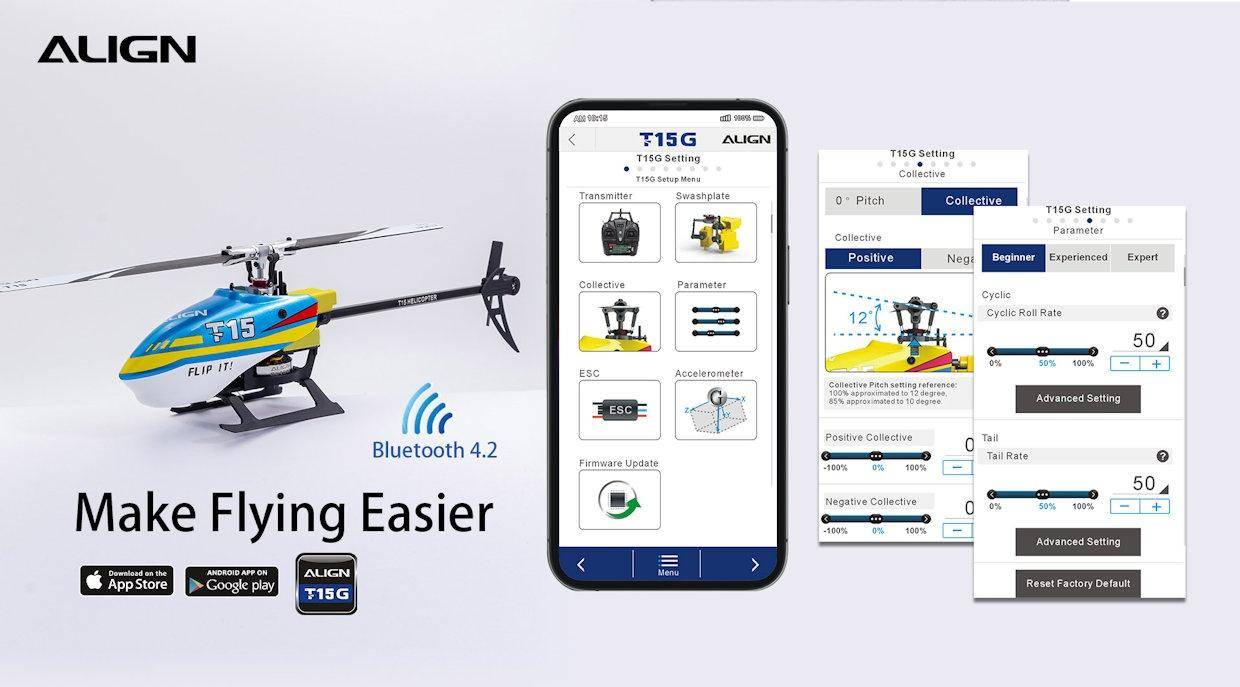

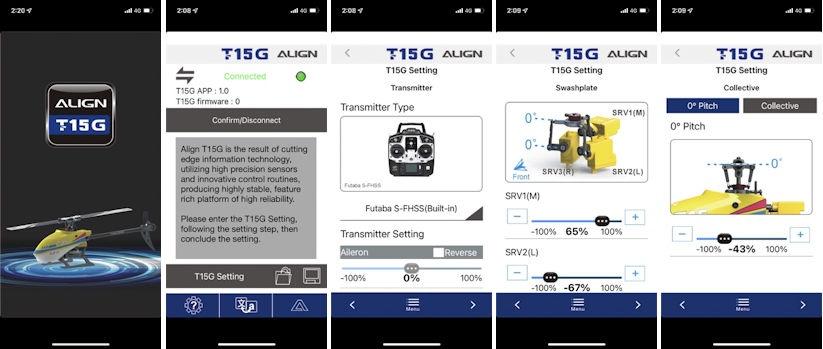

Inside the T15G app

1 · LaunchOpen the app and power up the T15.
2 · ConnectBluetooth link, app and firmware versions.
3 · TransmitterChoose your radio and set channel reverse.
4 · SwashplateLevel the swash with per-servo trims.
5 · CollectiveSet 0° pitch and collective range.
RADIO SETUP

Which receiver do I need?

Futaba S-FHSSNo extra receiver needed — the T15G talks S-FHSS directly.
Spektrum DSMX / DSM2Add a satellite: an original DSMX SPM9645 or DSM2 satellite. We haven’t had success binding any other original Spektrum satellites.
Best replacementRecommendedKensun satellite with a bind button — works with DSMX or DSM2.

Binding the Kensun satellite

This differs from the instruction manual:

  1. In the T15G app, select DSMX.
  2. Hold down the bind button on the Kensun satellite (don’t touch the button on the T15 GRS), then connect the battery to the T15.
  3. The Kensun LED blinks when it’s ready to bind.
  4. Turn on the Spektrum transmitter while holding down its bind button.

If you see “bind failed”, repeat the process and move the transmitter further away from the T15. The Kensun is also a great choice for other small helis that need a DSMX satellite, or for a BEASTX MICROBEAST on a 500-size or smaller model.

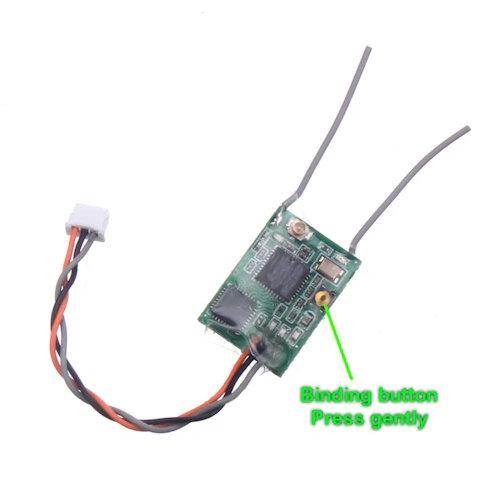

Kensun satellite receiver with bind button
Kensun receiver

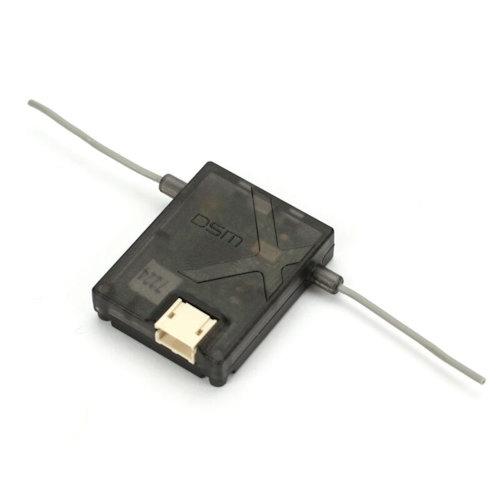

Spektrum SPM9645 DSMX satellite receiver
Original DSMX SPM9645

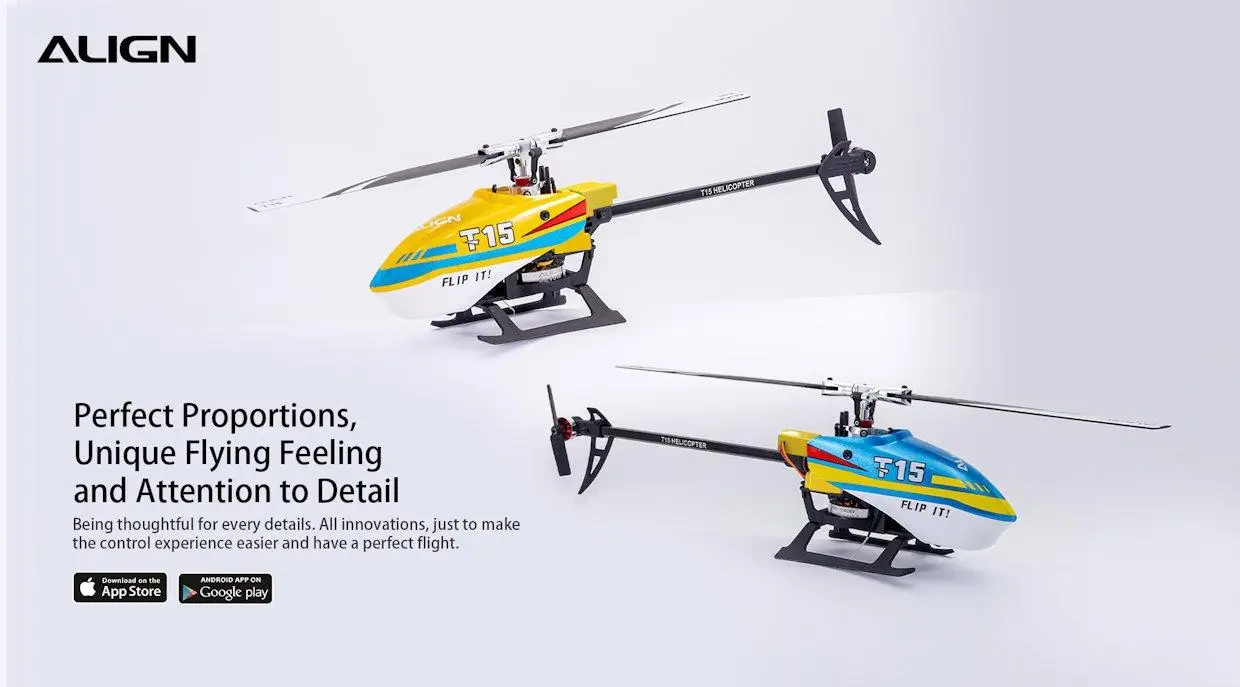

GALLERY

A closer look

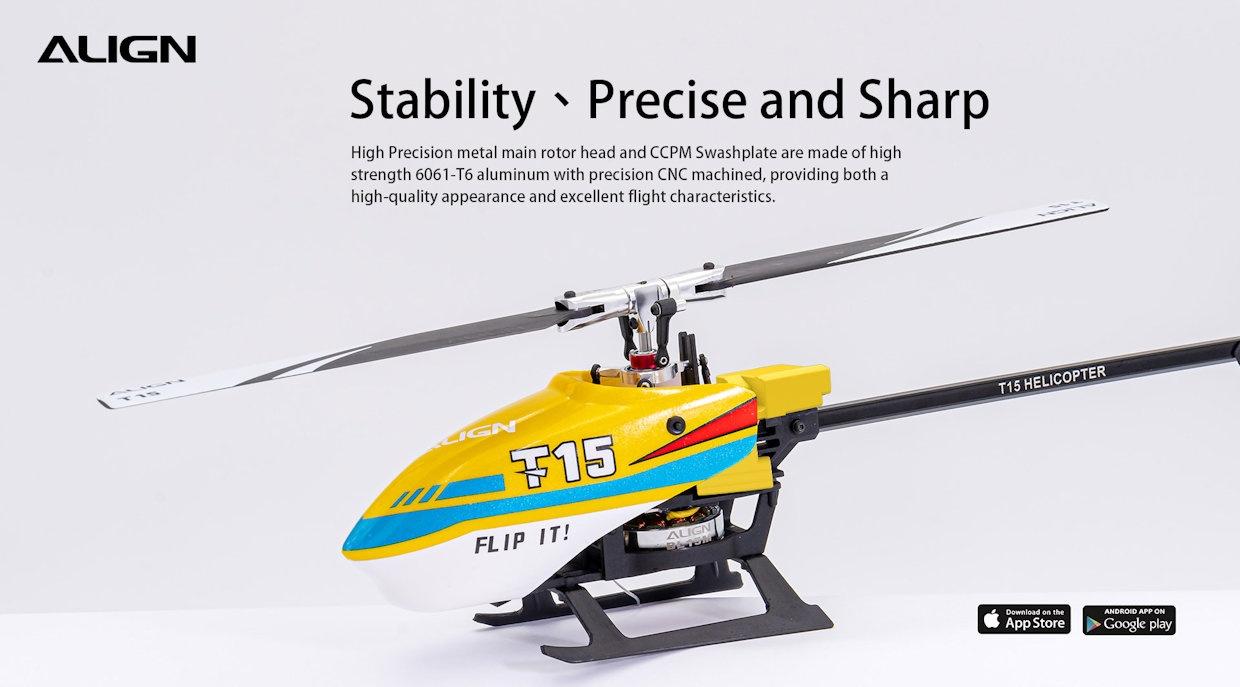

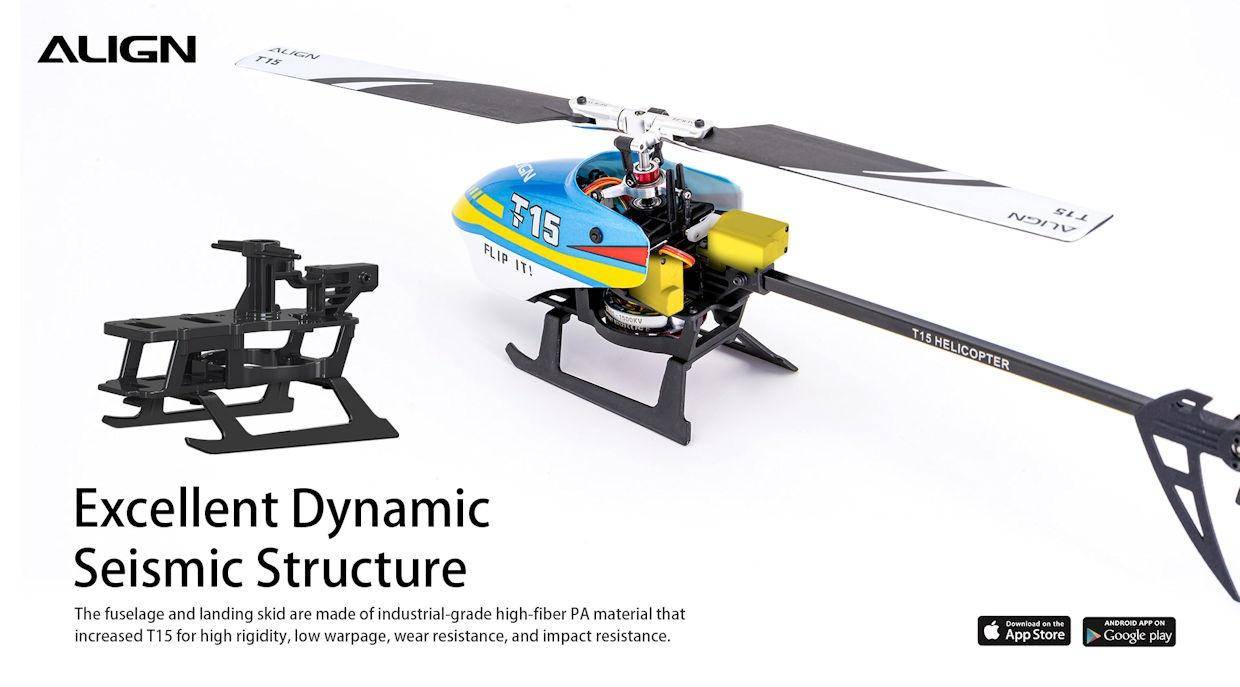

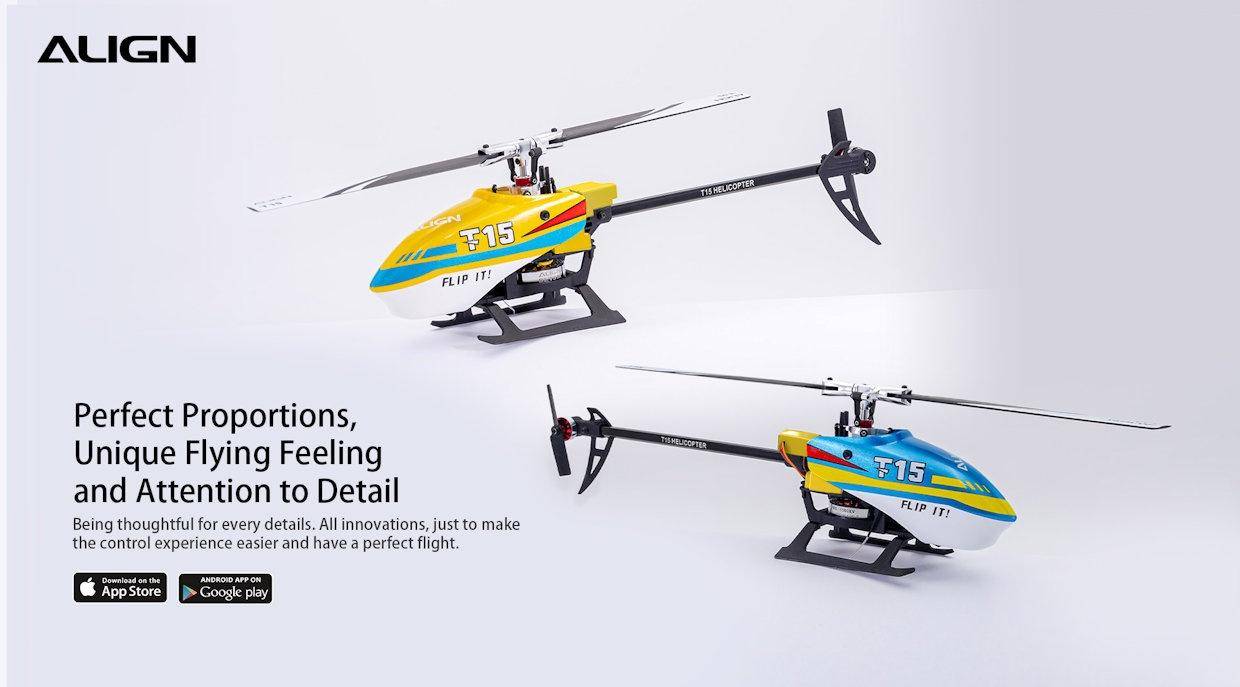

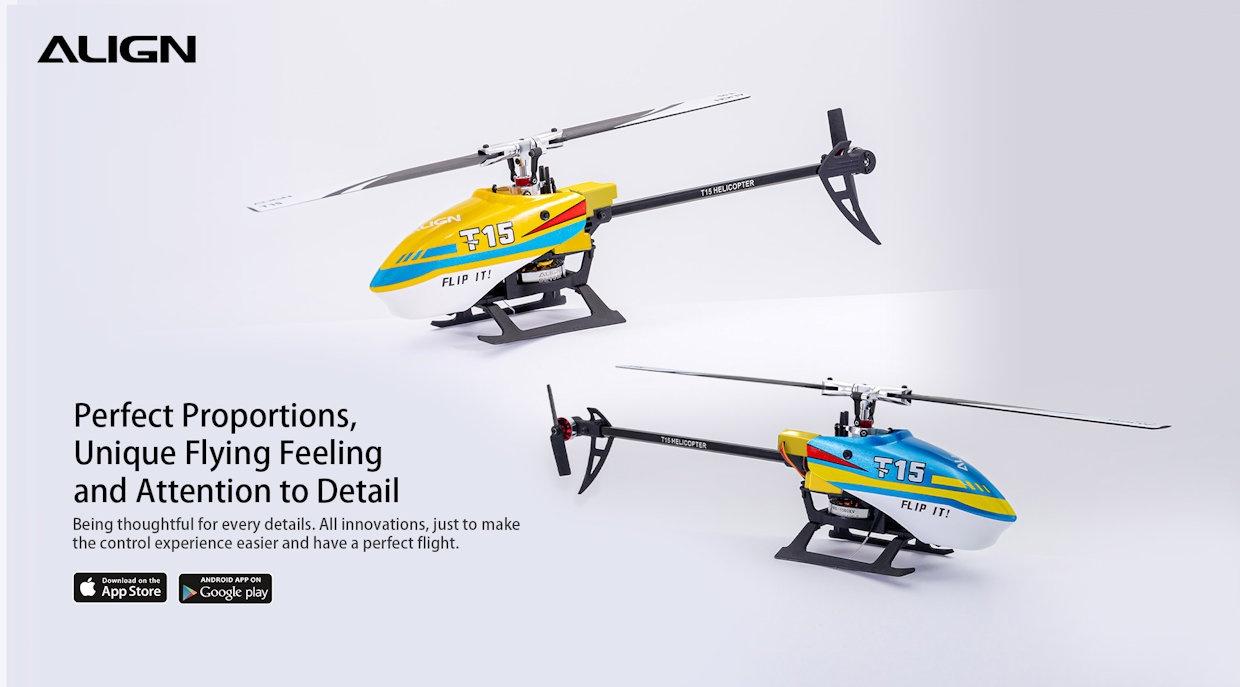

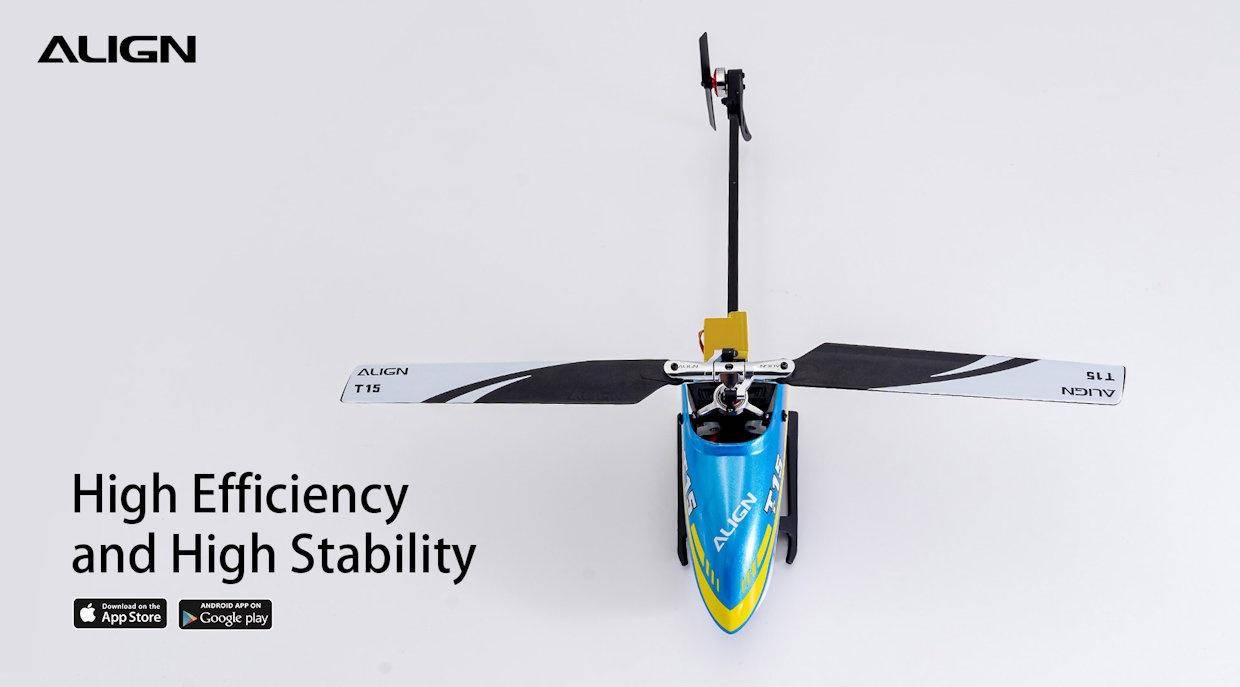

TREX T15 photo 1TREX T15 photo 2TREX T15 photo 3TREX T15 photo 4TREX T15 photo 5TREX T15 photo 6TREX T15 photo 7TREX T15 photo 8TREX T15 photo 9TREX T15 photo 10

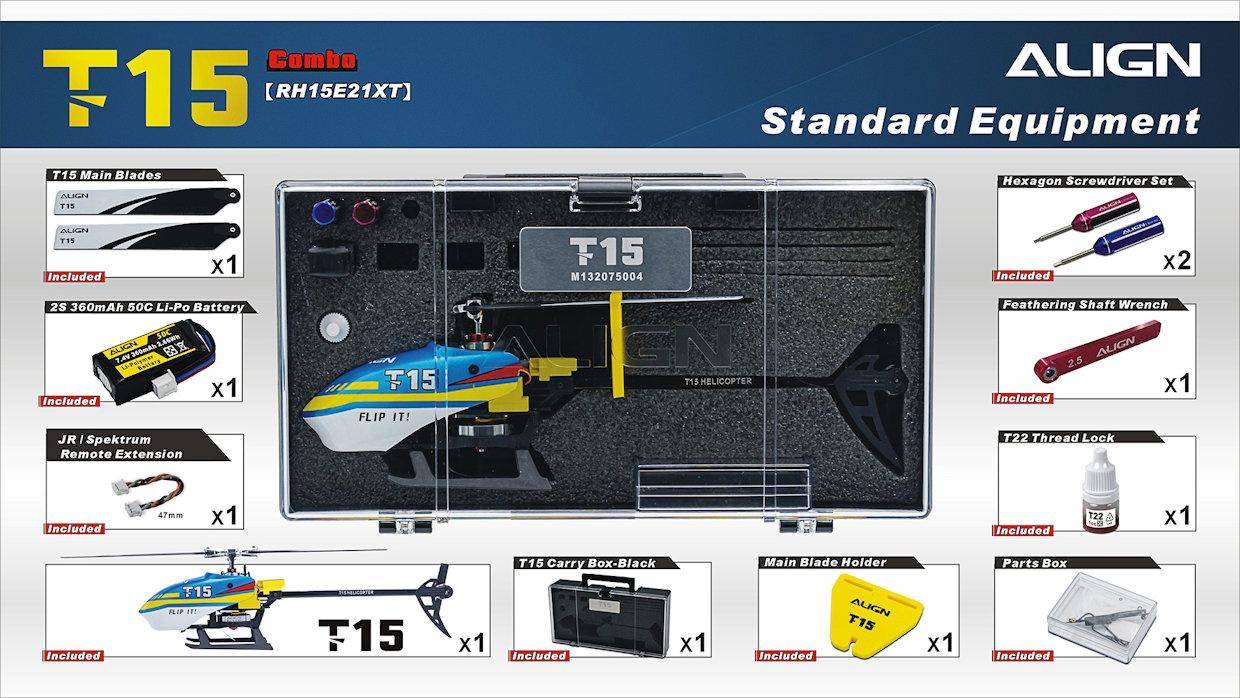

STANDARD EQUIPMENT

In the box

  • TREX T15 kit
  • T15M main brushless motor (1500KV / 2405)
  • T15M tail brushless motor (8000KV / 1103)
  • T15 digital servo × 3
  • T15 main blades
  • T15 tail rotor blade

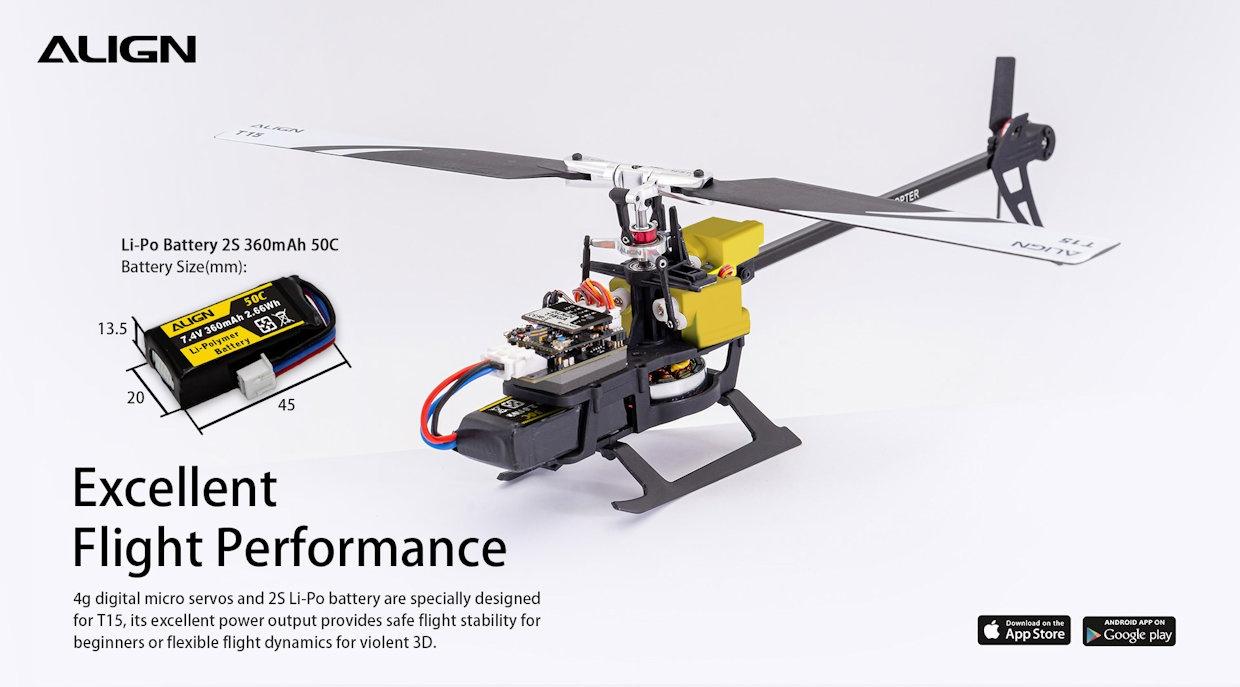

  • 7.4V Li-Po 380mAh 50C
  • Remote satellite extension
SPECIFICATIONS

Full specs

Length272 mm · 10.71 in
Height85 mm · 3.35 in
Main blade length120 mm · 4.72 in
Main rotor diameter280 mm · 11.02 in
Tail rotor diameter51 mm · 2.01 in
Motor driveDirect drive
Tail driveDirect drive
Weight (no battery)100 g · 3.53 oz
SUPPORT

Manual & parts

T15 instruction manualRH15E21-22XT · PDF
ALIGN Quick Parts FinderExploded views and part numbers
Buy the T15AlignTrexShop.com
