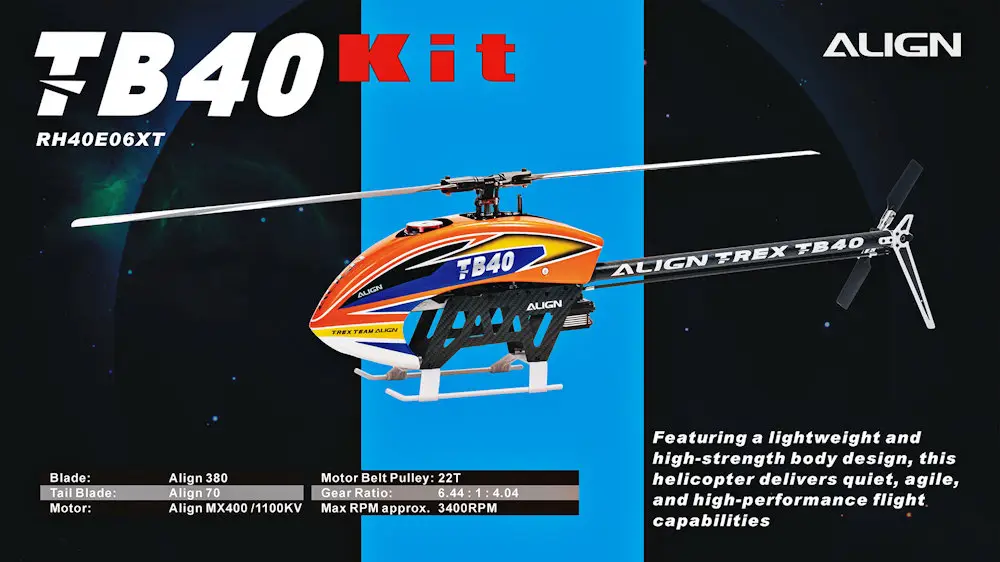

TB40 Kit RH40E06XW (T-REX)
All-New ALIGN T-REX TB40 Kit RH40E06XW is specially designed for all flying styles including extreme 3D flight.
Efficient Belt-Drive Design

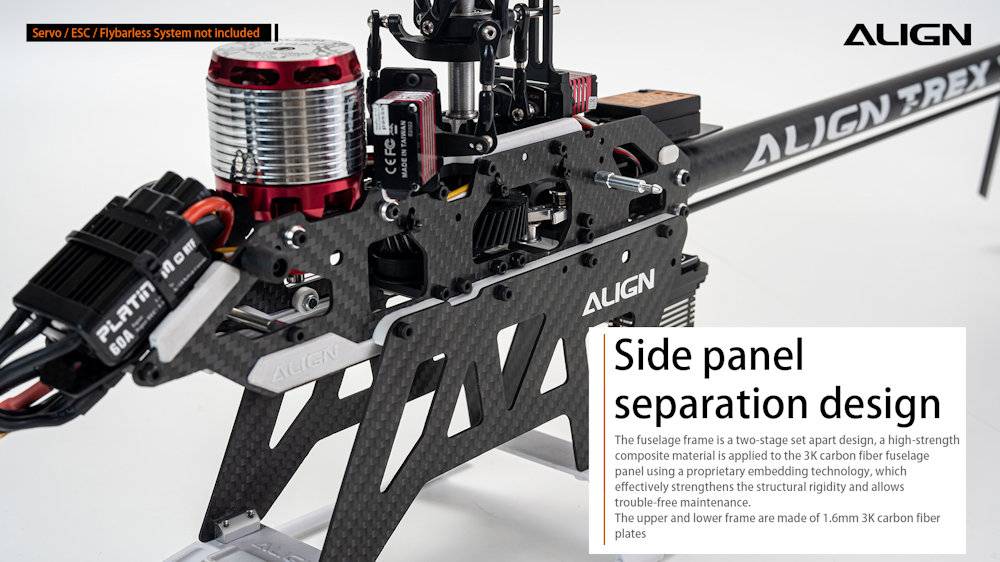

Integrated Composite Material Side Plates Engineered with Propitiatory Embedding Technology

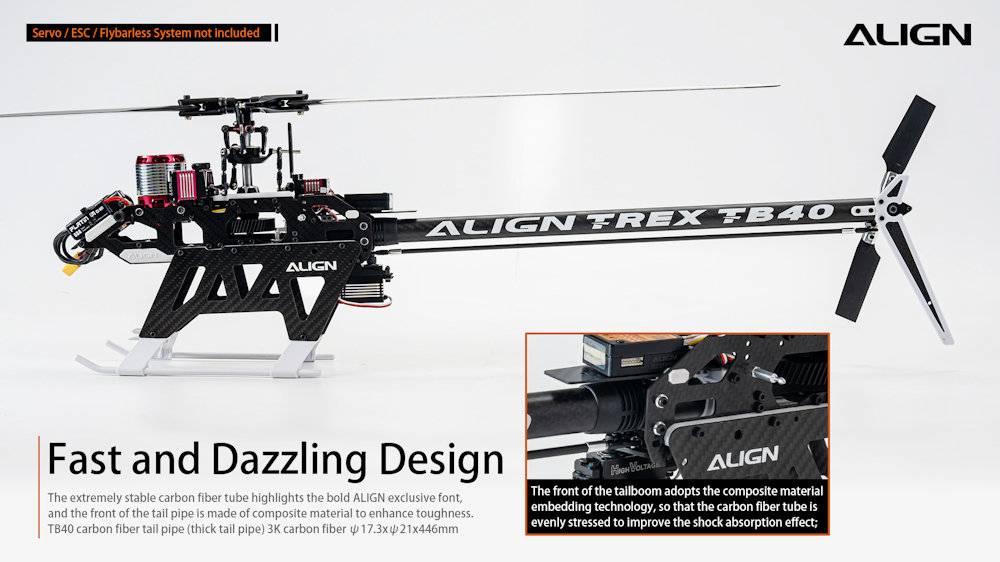

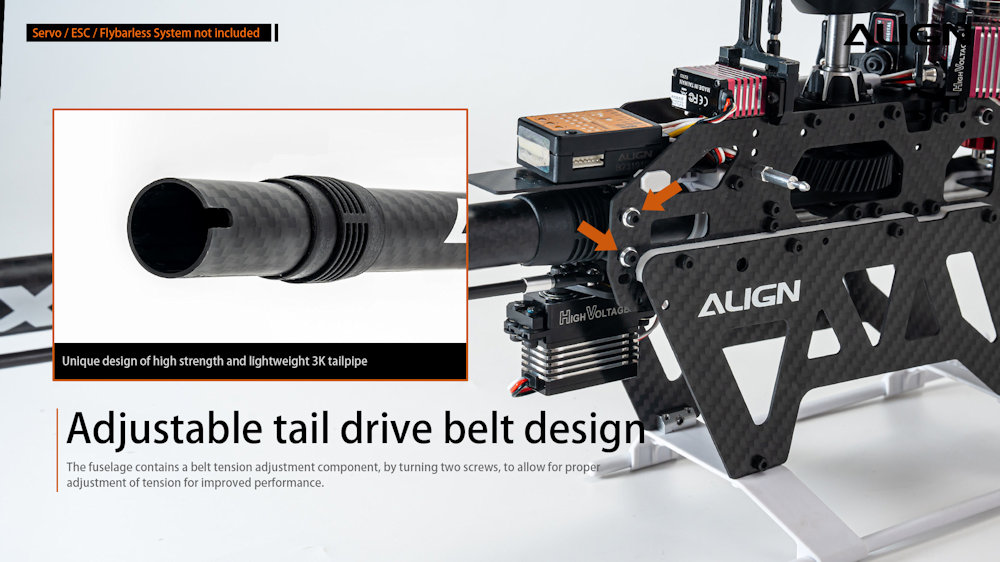

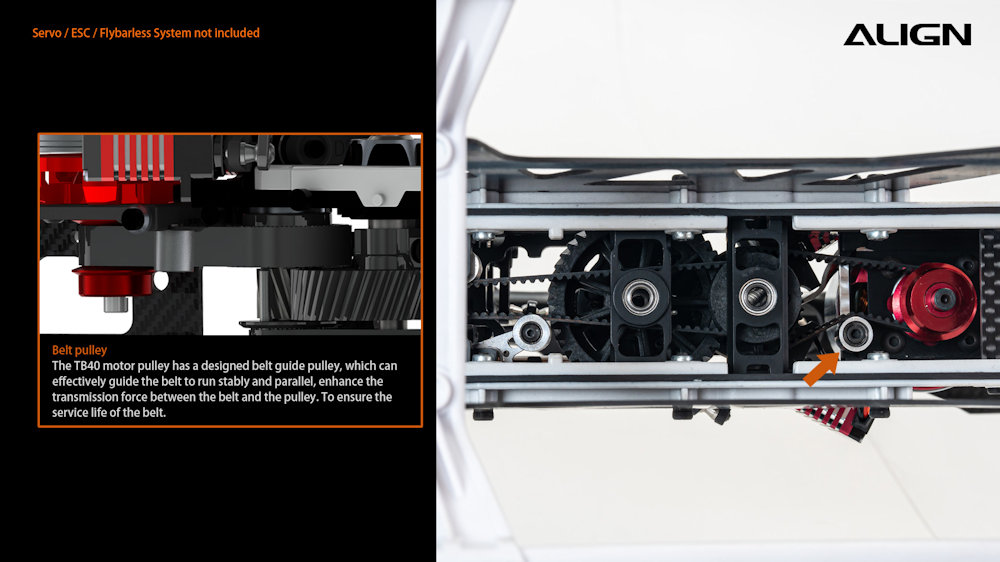

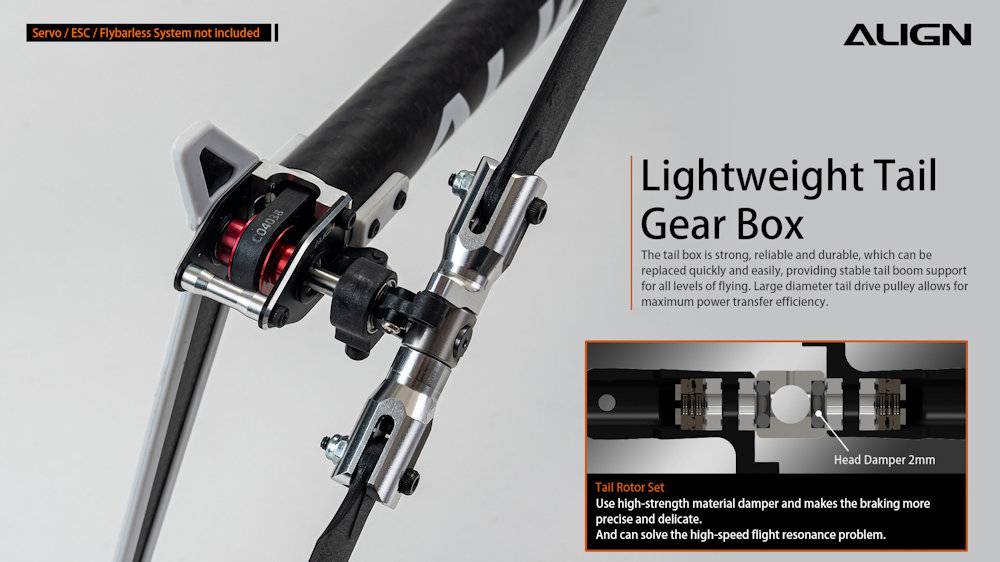

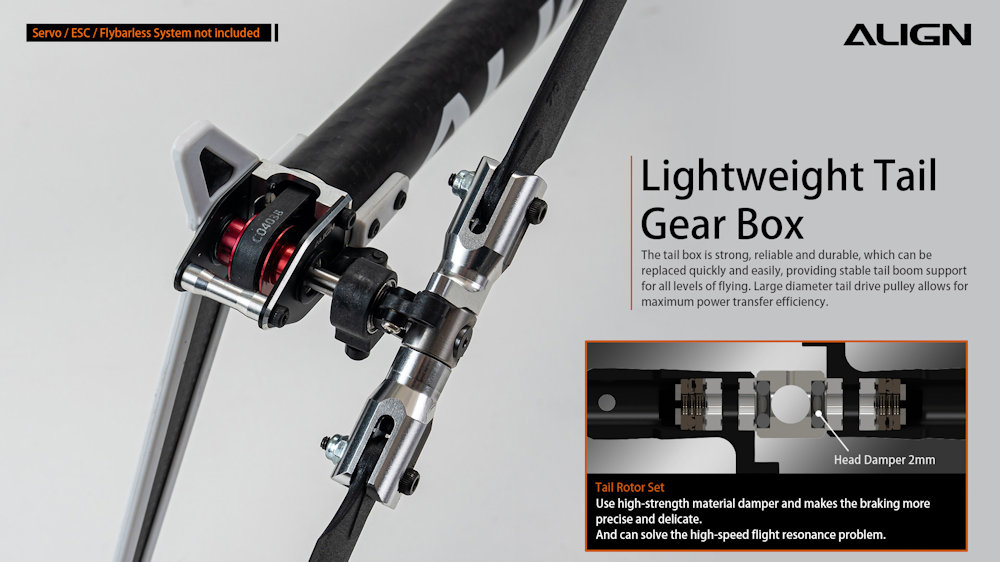

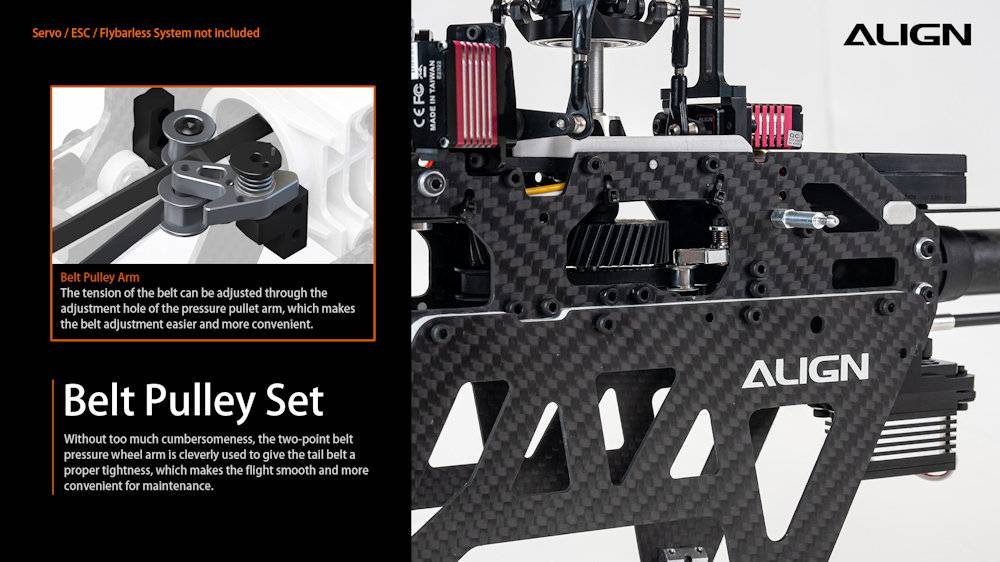

Belt Pulley, Adjustable Tail Drive Belt Design, Lightweight Tail Gear Box, and a Slick / Dazzling Design

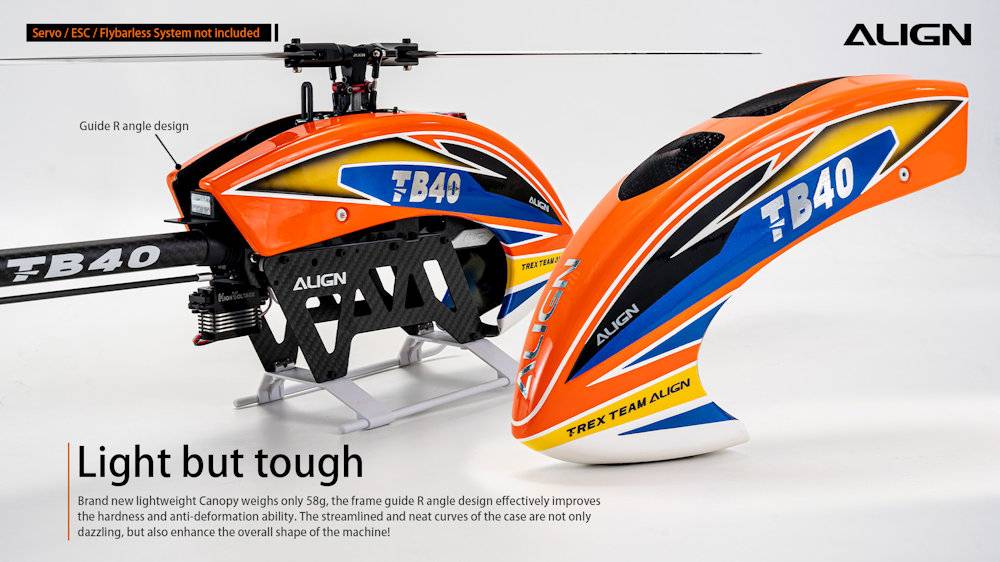

New Streamline Designed TB40 Canopy
Upgraded Canopy Mounting System
Regular Price $334.99
Now $289.99
Regular Price $334.99
Now $289.99

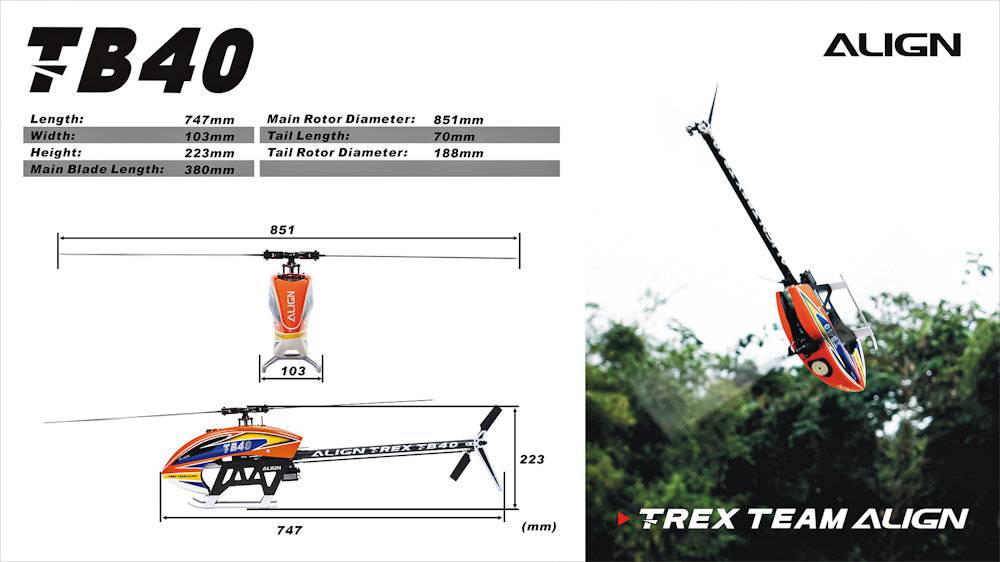

Specification
- Length: 747mm - 29.41In
- Height: 223mm - 8.78In
- Width: 103mm - 4.06In
- Main Blade Length: 380mm - 14.96mm
- Main Rotor Diameter: 851mm - 33.50In
- Tail Blade Length: 70mm - 2.75In
- Tail Rotor Diameter: 188mm - 7.40In
- Motor Belt Pulley: 22T
- Belt Pulley: 40T
- Front Drive Main Shaft: 13T

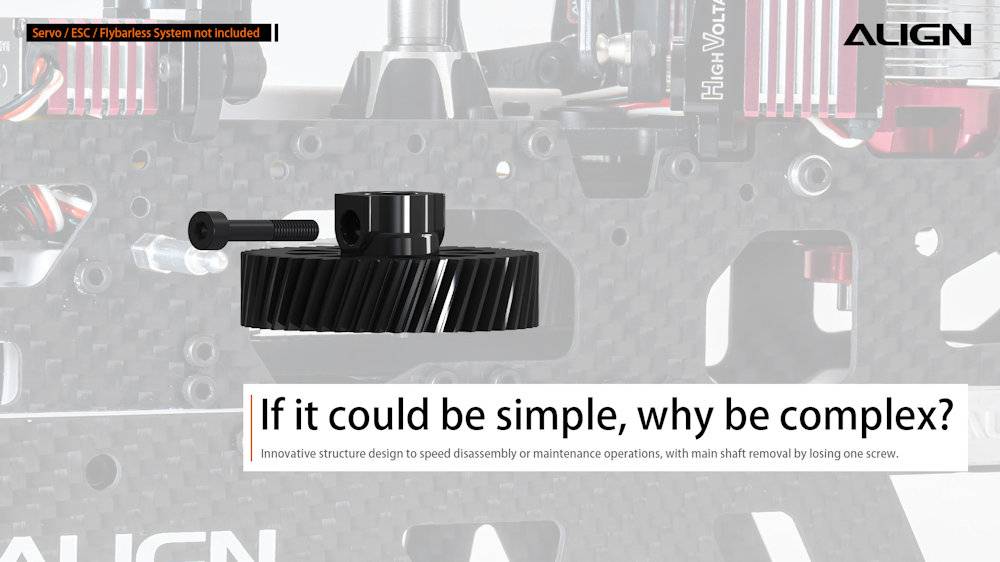

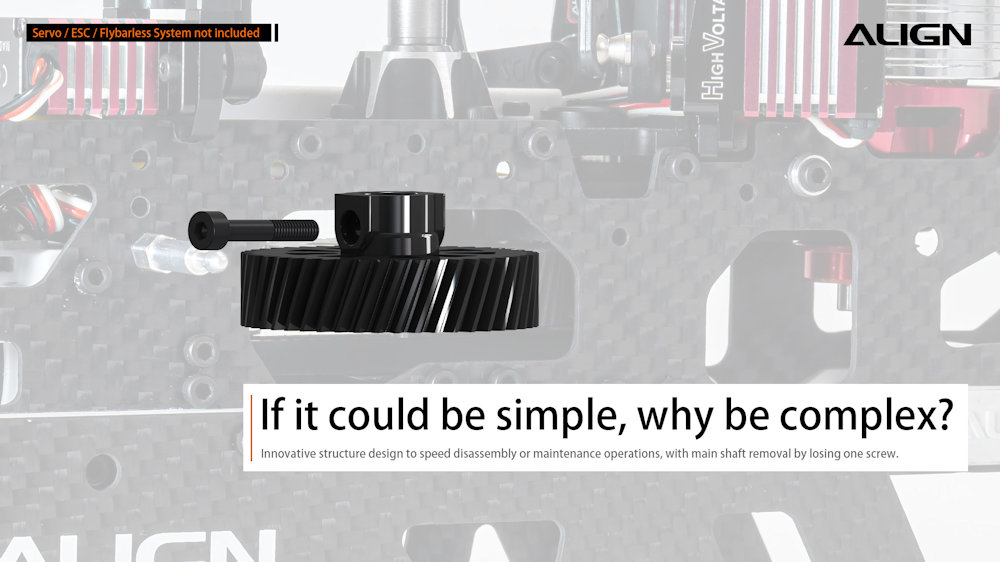

- Main Drive Gear: 46T
- Drive Gear Ratio: 6.44 : 1 : 4.04
- Max RPM (approx): 3400
- Weight (with Battery): 953g - 2.10Lbs (ALIGN 6S 2200mAh)
Electric Equipment
- T-REX TB40 Kit x 1

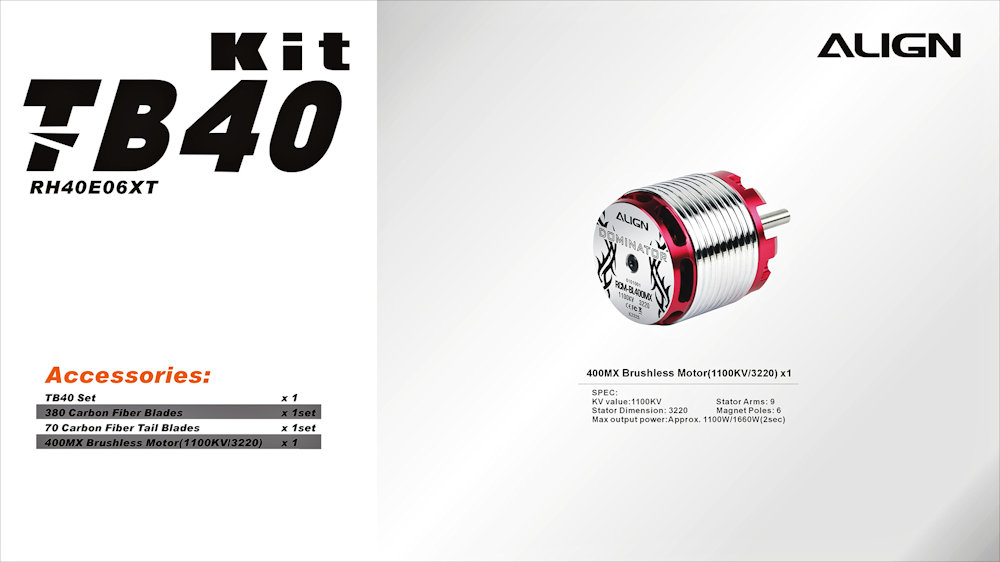

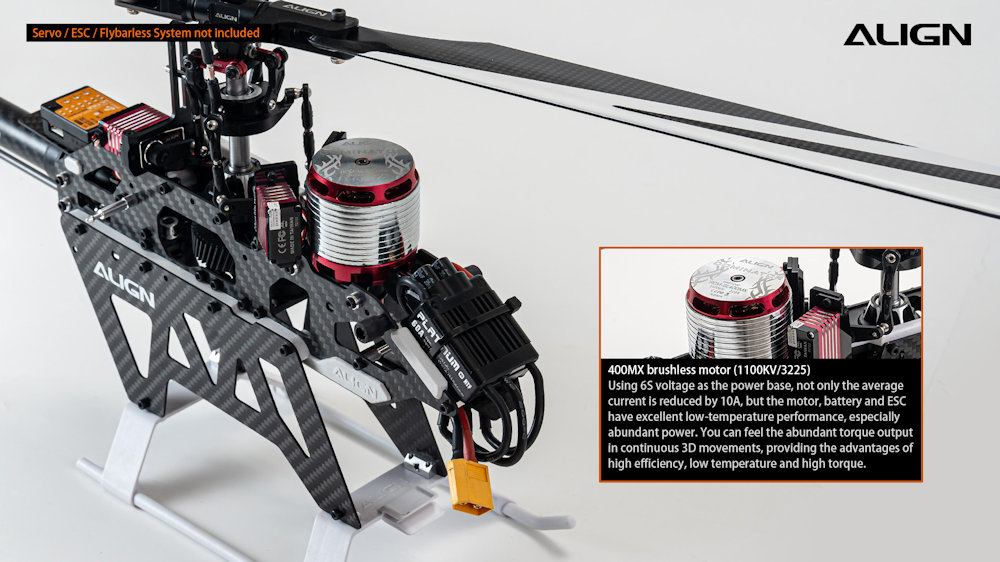

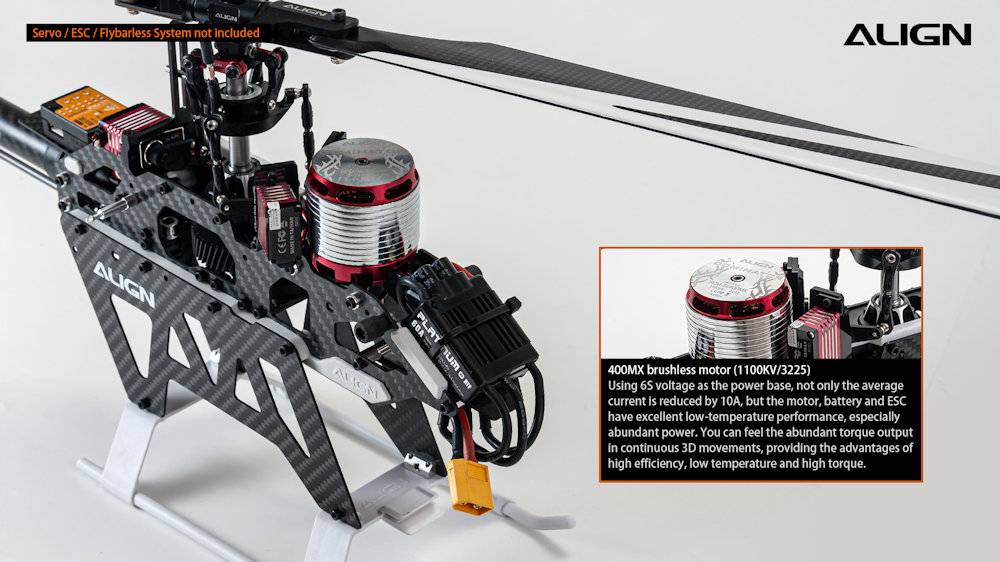

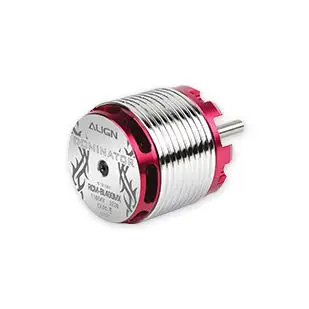

- 400MX Brushless Motor (1100KV/3220) x 1
- 380mm Carbon Fiber Blades x 1
- 70mm Carbon Fiber Tail Blades x 1
Additional Required Equipment
- Transmitter (6-channel or more, helicopter system)
- Receiver (6-channel or more)
- ESC (Recommend 60A)
- Cyclic Servos x 3 (Recommend DS450M)
- Tail Servo (Recommend DS535M)
- Flybarless Gyro (Recommend MICROBEAST²)
- 6S Li-Po 1800 ~ 2200mAh x 2 Recommend 2200mAh Part # HBP22009
- Digital Pitch Gauge Part # HET80001
- Hex Screw Driver Set
