ALIGN T-REX 470LP Super Combo Belt RH47E02

Following the release of the T-REX 450L, which introduced an innovative design and came equipped with high-end electronic equipment. ALIGN's most anticipated helicopter release in 2016 the T-REX 470LP is born. No matter whether you are a newcomer or a professional, the brand new TREX 470LP will give you the new flying feel again.

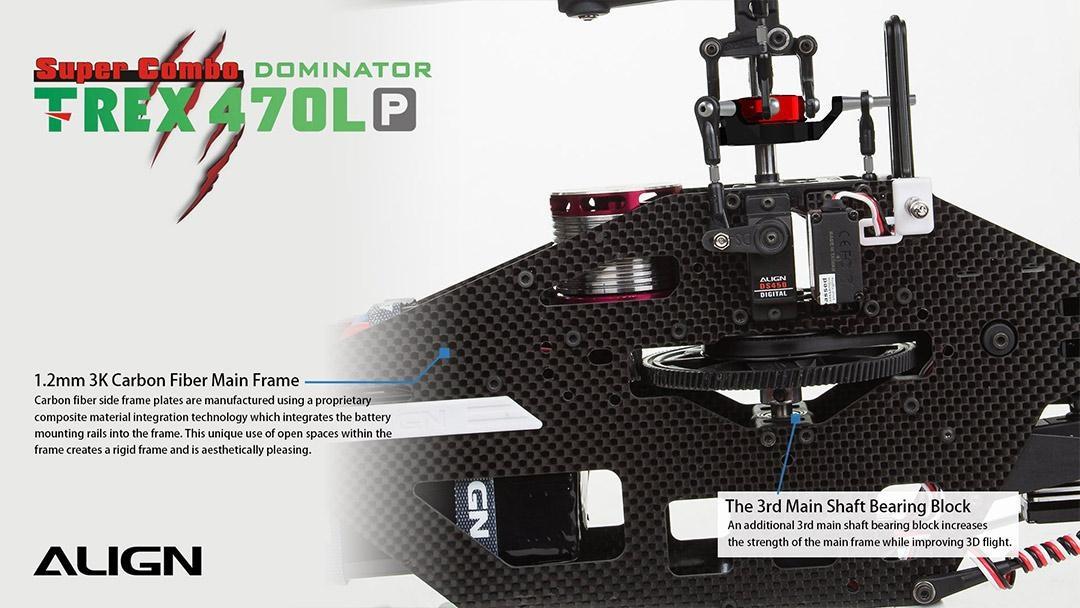

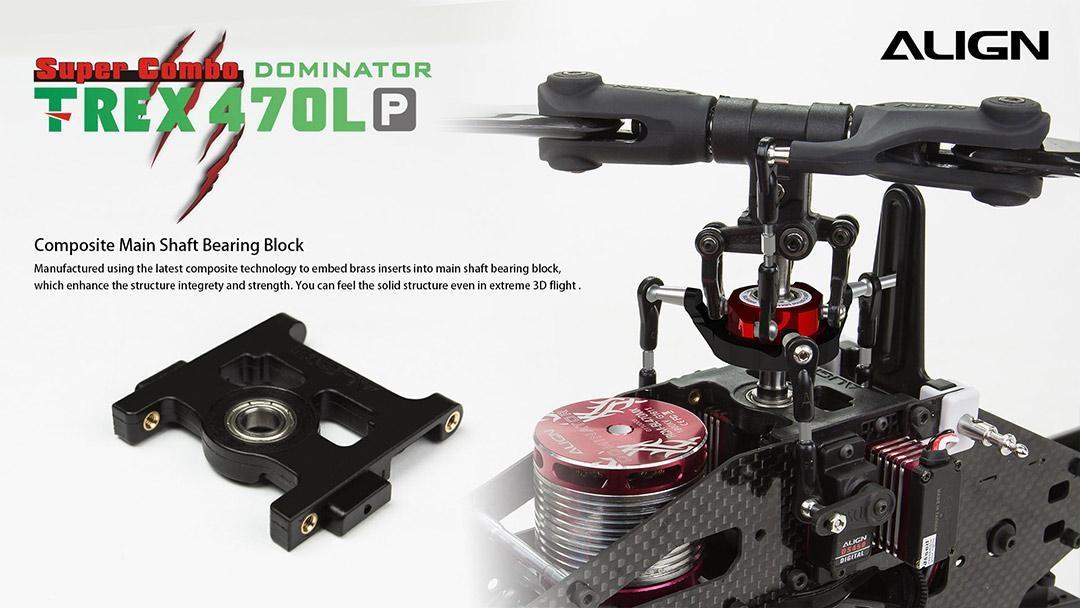

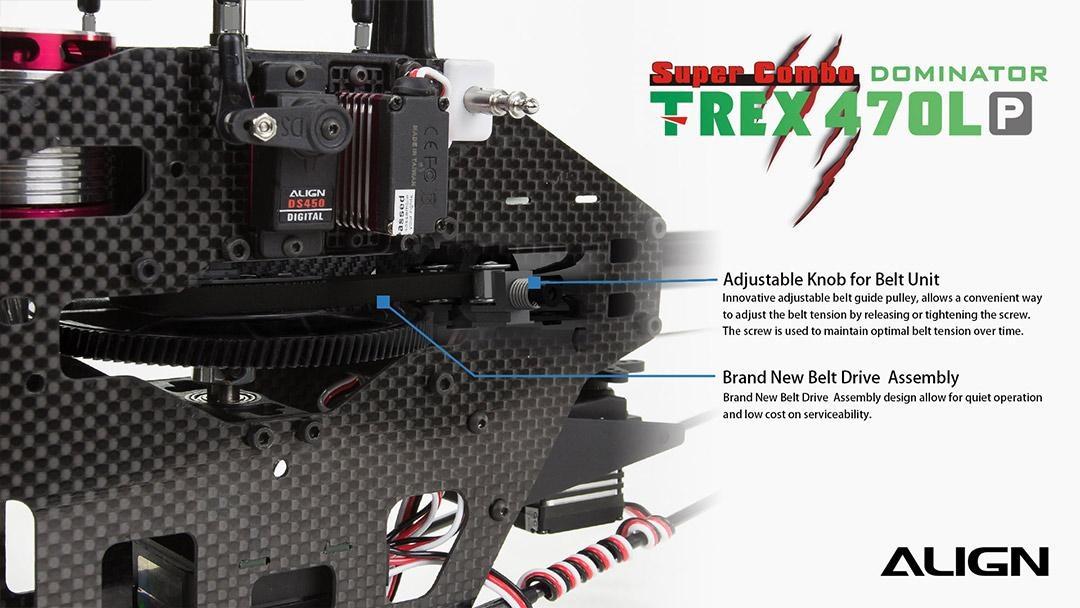

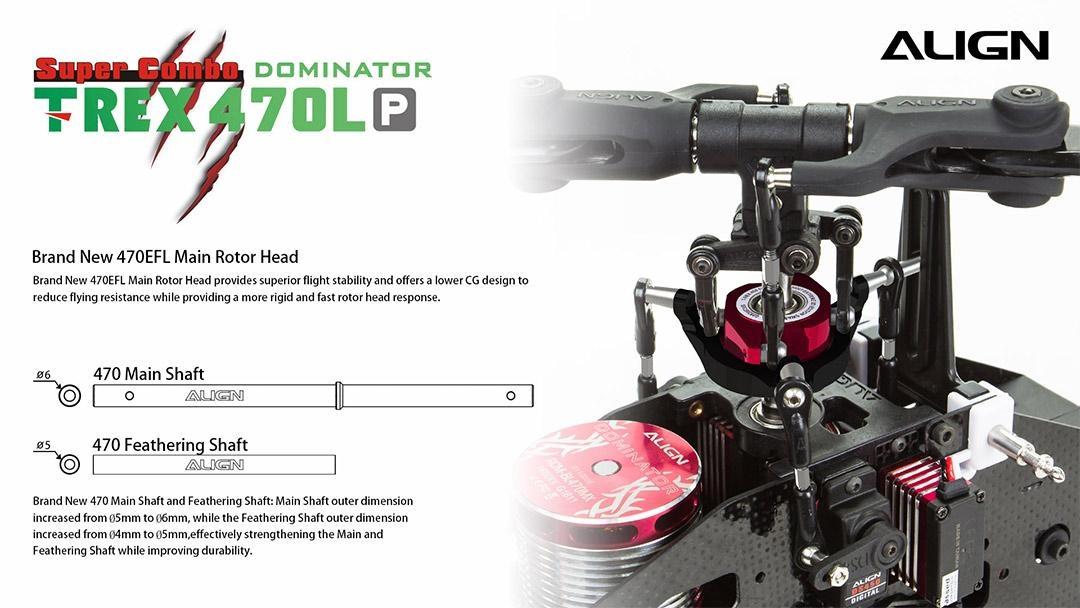

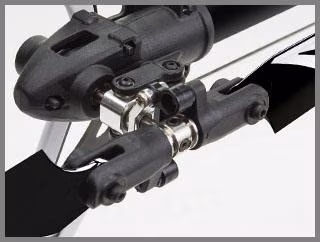

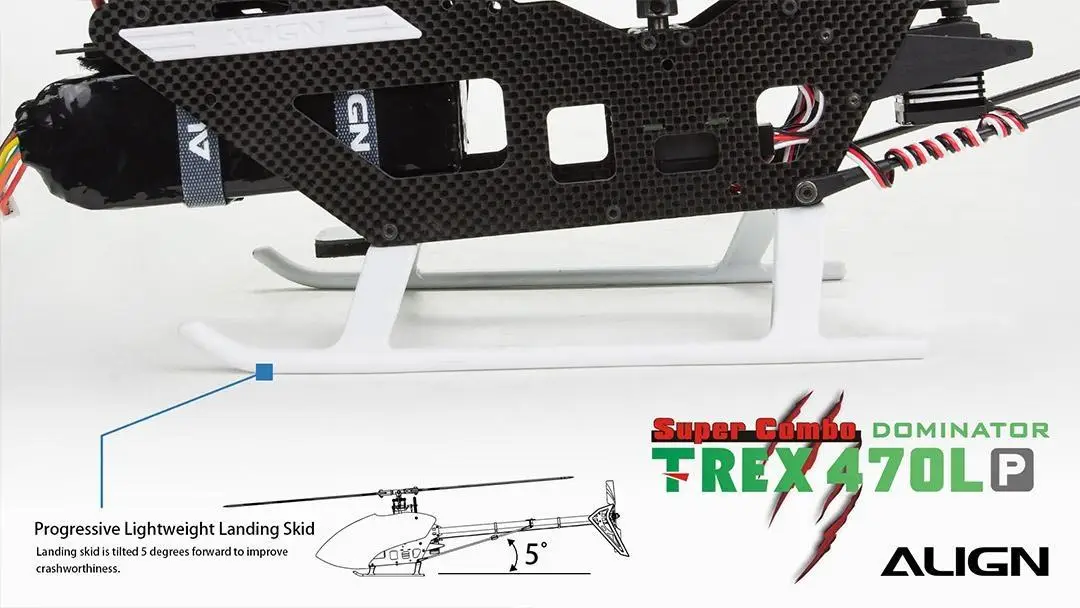

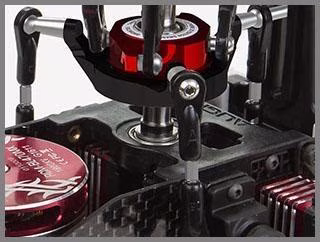

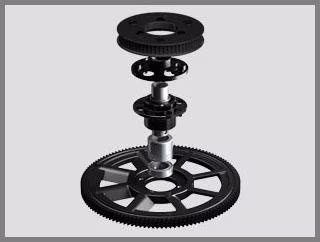

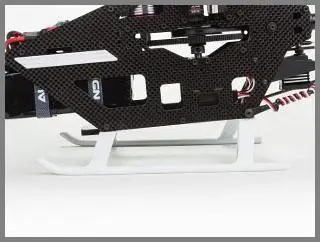

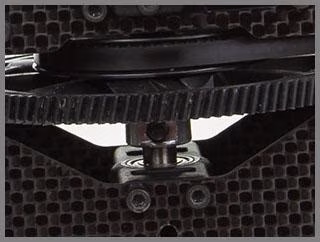

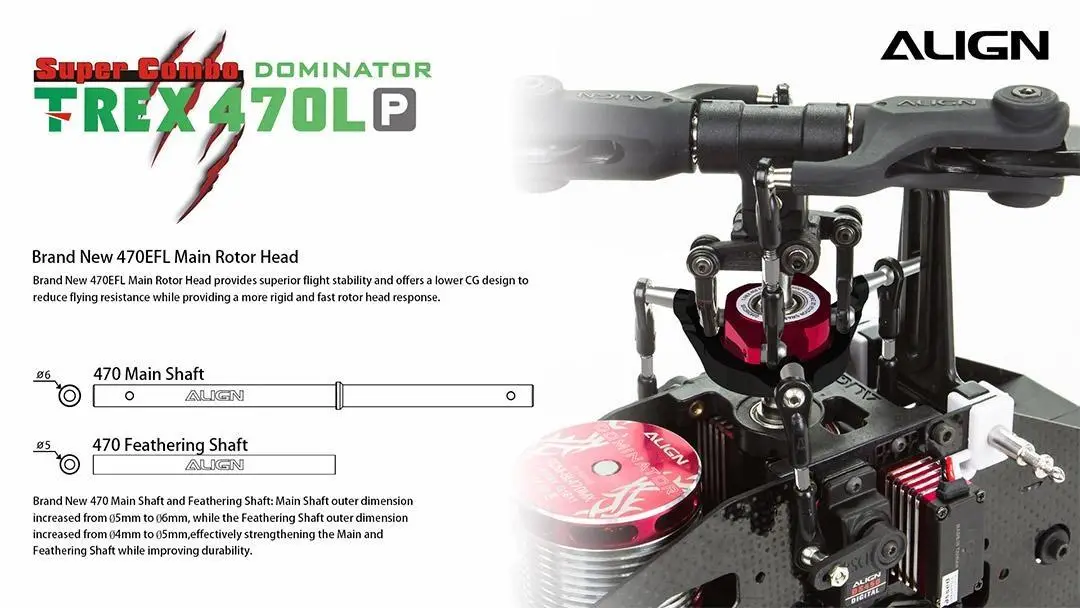

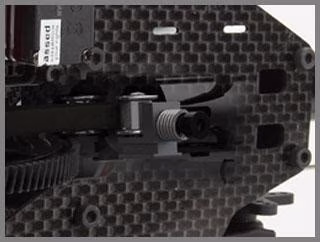

The 470EFL Main Rotor Head provides superior flight stability and offers a lower CG design to reduce flying resistance while providing a more rigid and fast rotor head response. To improve the strength and durability of the main and feathering shaft the 470 main shaft outer dimension was increased from 5mm to 6mm, while the feathering shaft outer dimension was increased from 4mm to 5mm. The 470LP adopts a high standard 1.2mm 3K carbon fiber main frame and a wider body design which increases the size of the battery compartment allowing the use of larger capacity battery. The ALIGN 470LP utilizes a high efficient belt drive assembly design with an innovative adjustable belt guide pulley, providing a convenient way to adjust the belt tension by releasing or tightening the screw. This screw is used to maintain optimal belt tension improving the life of the belt and lowering maintains costs. The landing skid is tilted 5 degrees forward to improve crashworthiness and makes TREX 470LP more avant-garde and dynamic.

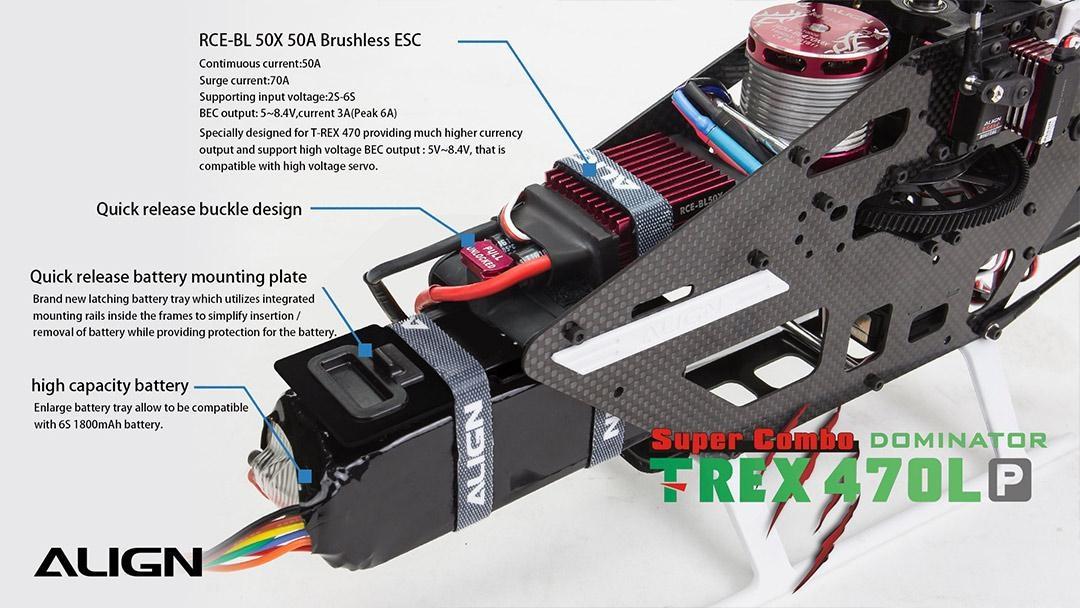

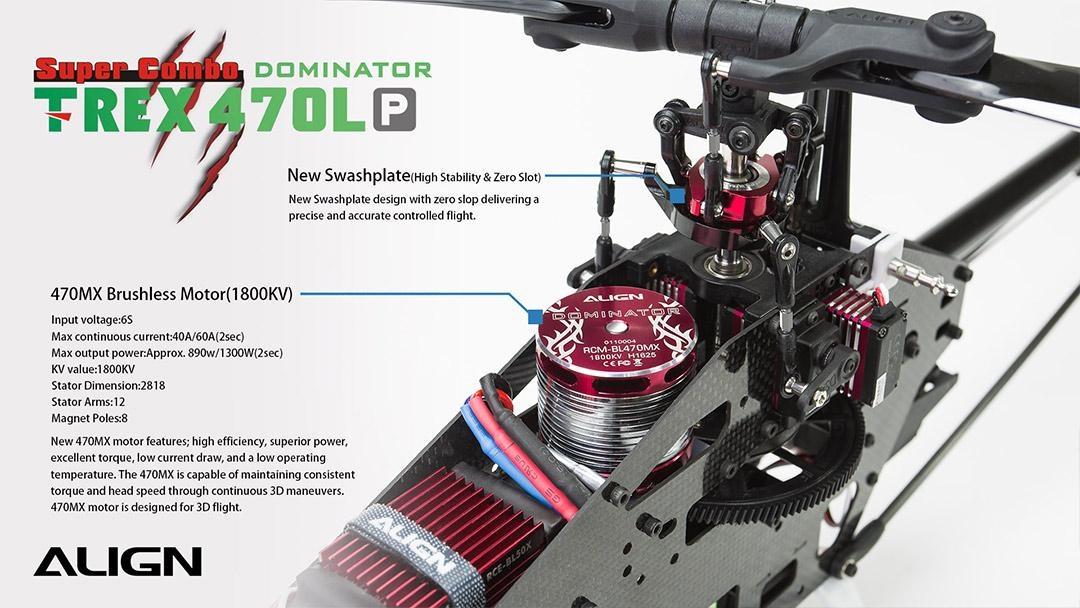

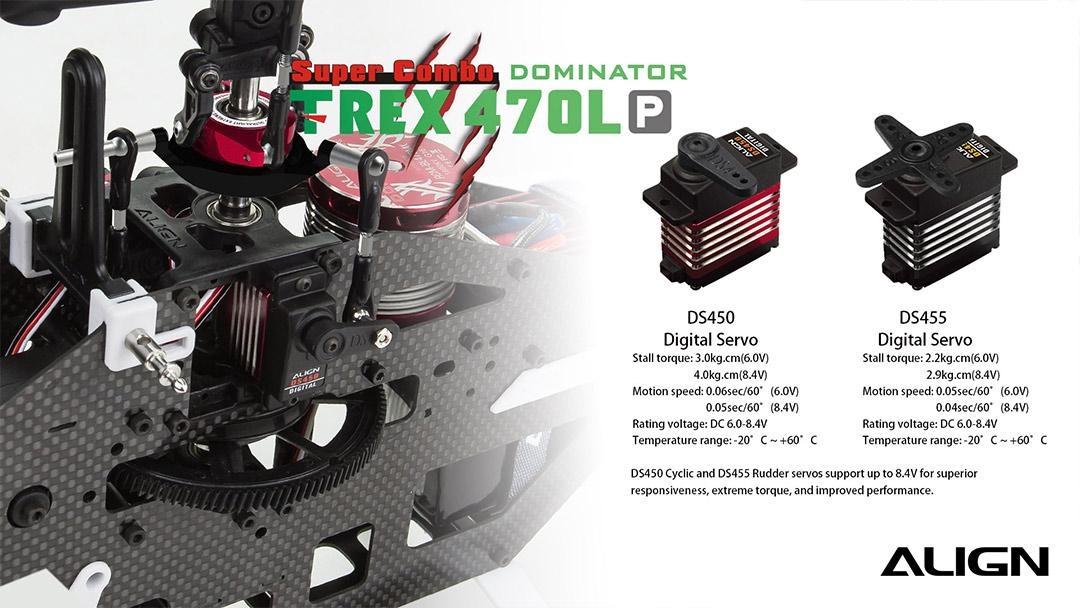

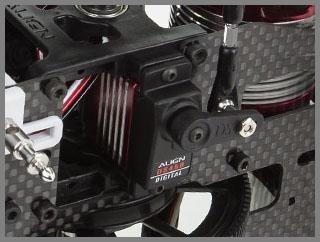

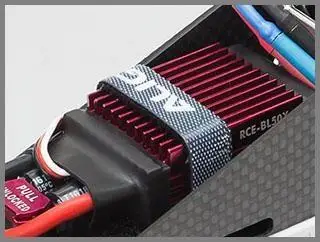

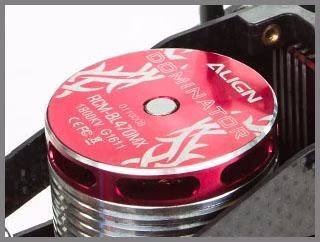

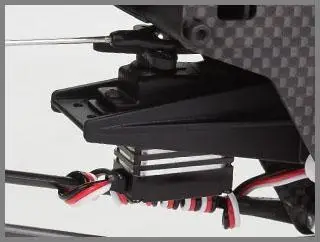

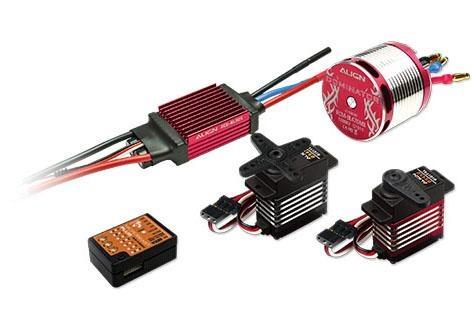

The ALIGN T-REX 470LP Super Combo Belt RH47E02 is equipped with the large outer diameter 470MX motor (1800KV) which is highly efficient providing superior power, excellent torque, improved current draw, and a lower operating temperature which are excellent improvements as compared to the 460MX motor. The brand new DS450 digital cyclic servos and DS455 digital tail servo, support up to V8.4, high voltage input, improving the servos torque and speed. The new RCE-BL50X brushless ESC with an internal BEC provides 5.0V to 8.4V which can be set based on servo specification. The new high-end electronics effectively enhance flight performance.
