ALIGN T-REX 470LP Kit Belt RH47E03

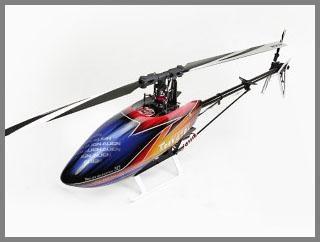

Following the release of the T-REX 450L, which introduced an innovative design and came equipped with high-end electronic equipment. ALIGN's most anticipated helicopter release in 2016 the T-REX 470LP is born. No matter whether you are a newcomer or a professional, the brand new T-REX 470LP will give you the new flying feel again.

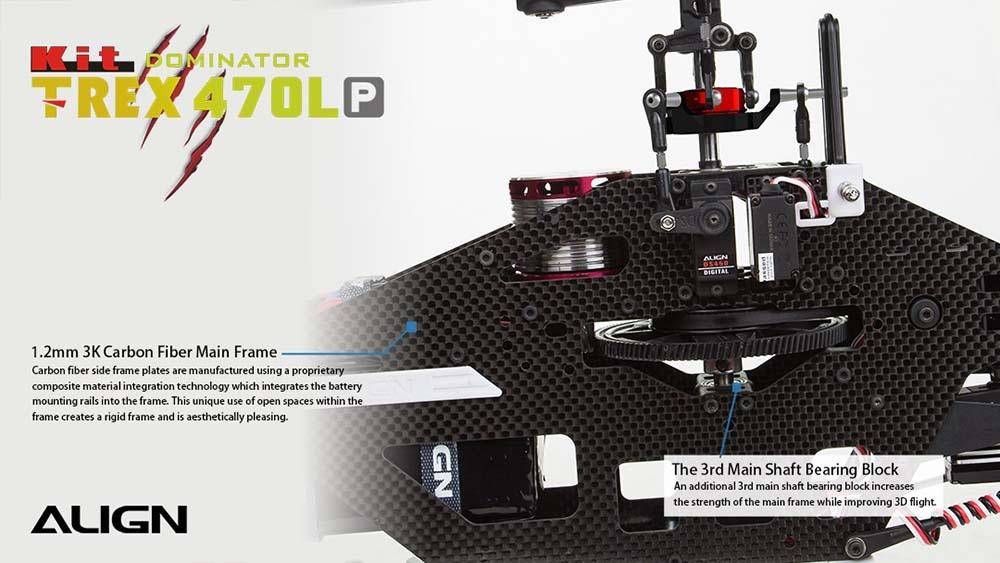

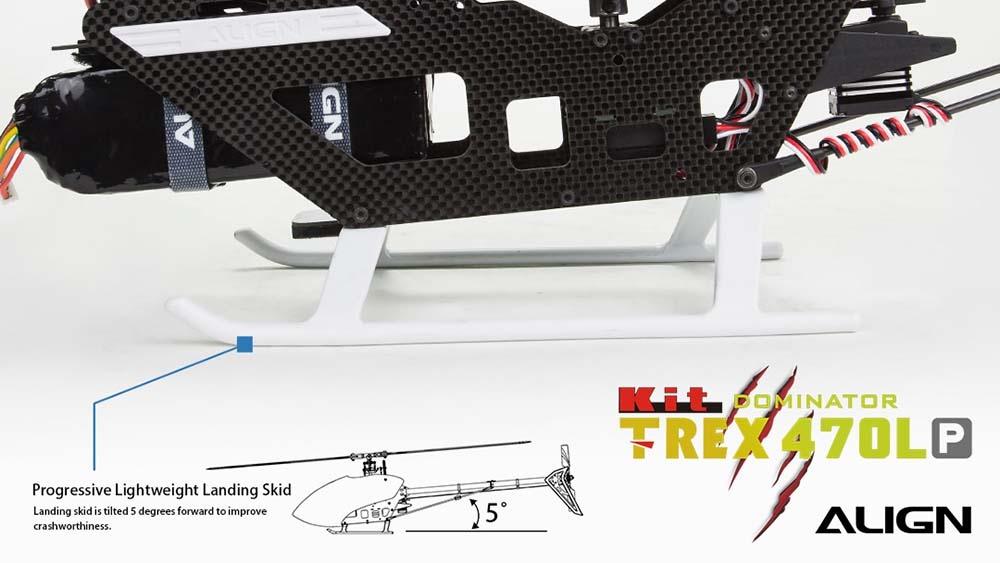

The 470EFL Main Rotor Head provides superior flight stability and offers a lower CG design to reduce flying resistance while providing a more rigid and fast rotor head response. To improve the strength and durability of the main and feathering shaft the 470 main shaft outer dimension was increased from 5mm to 6mm, while the feathering shaft outer dimension was increased from 4mm to 5mm. The ALIGN 470LP adopts a high standard 1.2mm 3K carbon fiber main frame and a wider body design which increases the size of the battery compartment allowing the use of larger capacity battery. The T-REX 470LP utilizes a high efficient belt drive assembly design with an innovative adjustable belt guide pulley, providing a convenient way to adjust the belt tension by releasing or tightening the screw. This screw is used to maintain optimal belt tension improving the life of the belt and lowering maintains costs. The landing skid is tilted 5 degrees forward to improve crashworthiness and makes TREX 470LP more avant-garde and dynamic.

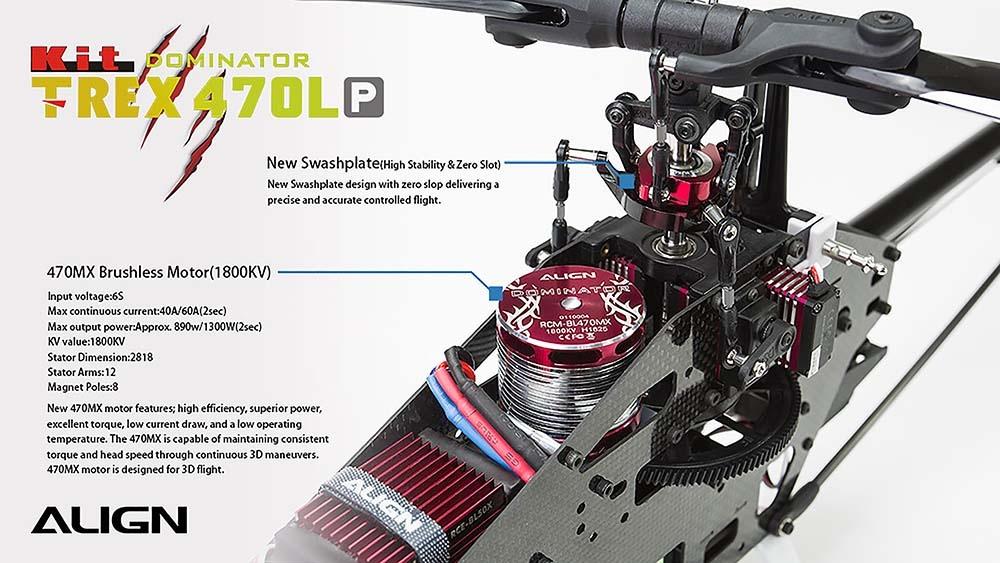

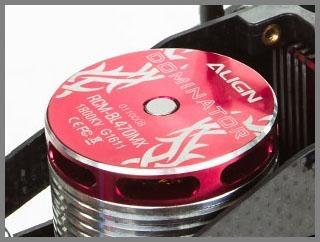

The ALIGN T-REX 470LP Kit Belt RH47E03 is equipped with the large outer diameter 470MX motor (1800KV) which is highly efficient providing superior power, excellent torque, improved current draw, and a lower operating temperature which are excellent improvements as compared to the 460MX motor. The new high-end electronics effectively enhance flight performance.

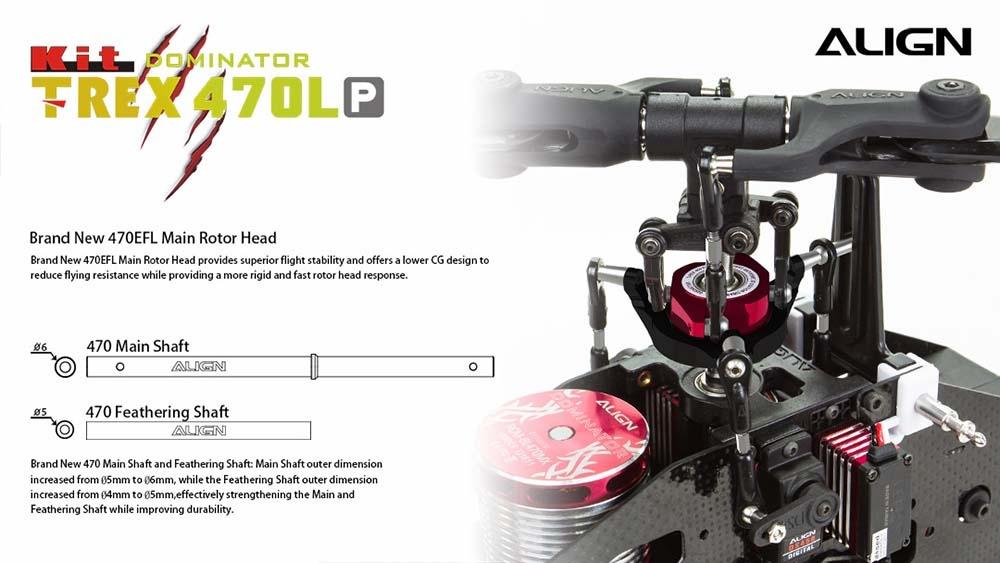

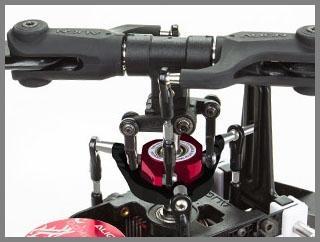

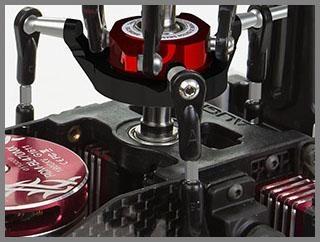

Brand New 470EFL Main Rotor Head provides superior flight stability and offers a lower CG design to reduce flying resistance while providing a more rigid and fast rotor head response. Brand New 470 Main Shaft and Feathering Shaft: Main Shaft outer dimension increased from 5mm to 6mm, while the Feathering Shaft outer dimension increased from 4mm to 5mm,effectively strengthening the Main and Feathering Shaft while improving durability.

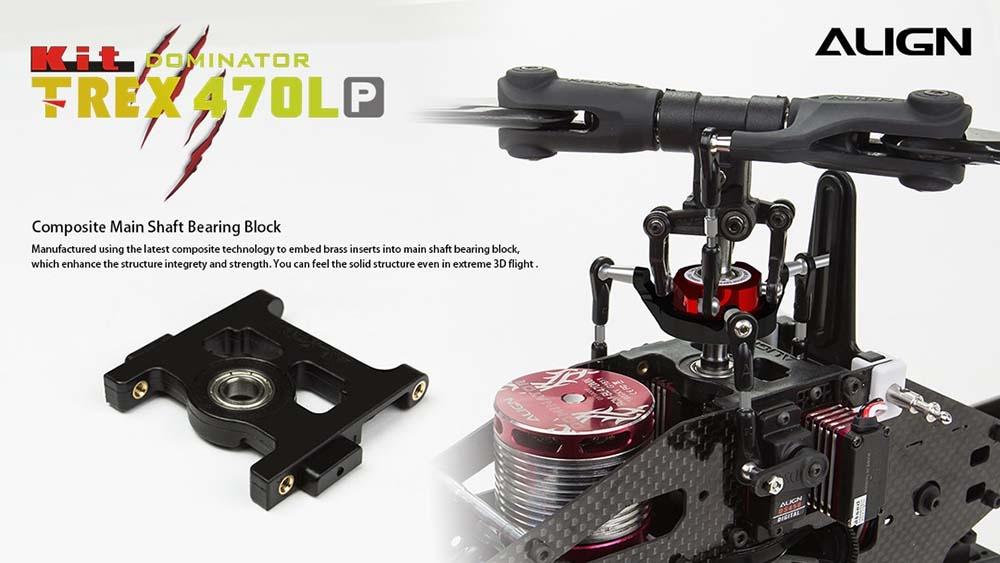

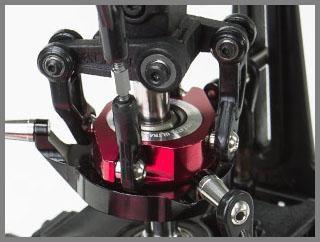

Manufactured using the latest composite technology to embed brass inserts into main shaft bearing block, which enhance the structural integrity and strength. You can feel the solid structure even in extreme 3D flight.

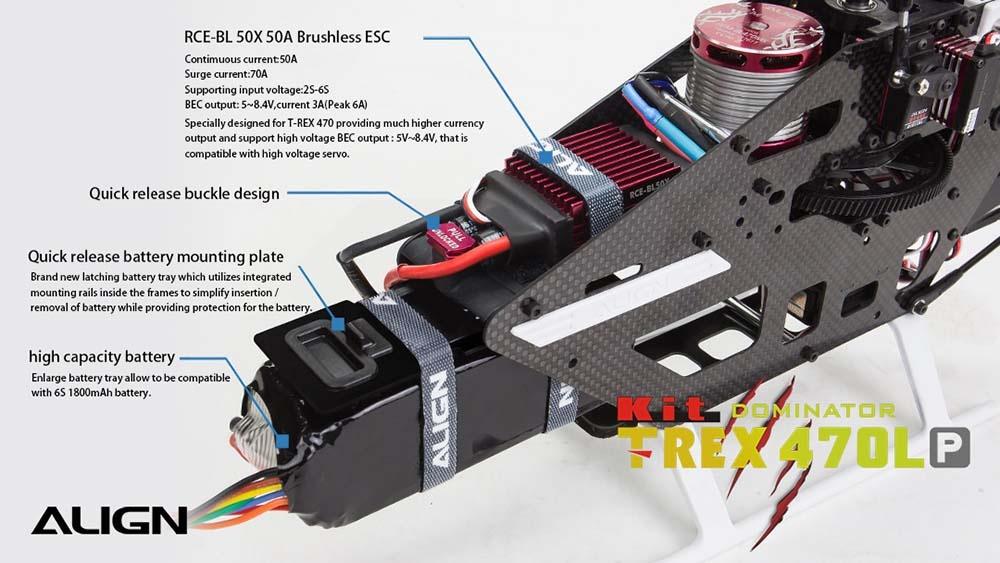

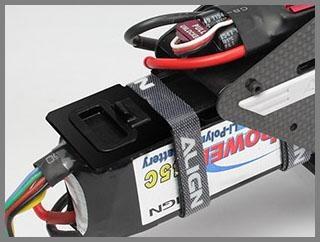

Brand new latching battery tray which utilizes integrated mounting rails inside the frames to simplify insertion / removal of battery while providing protection for the battery.

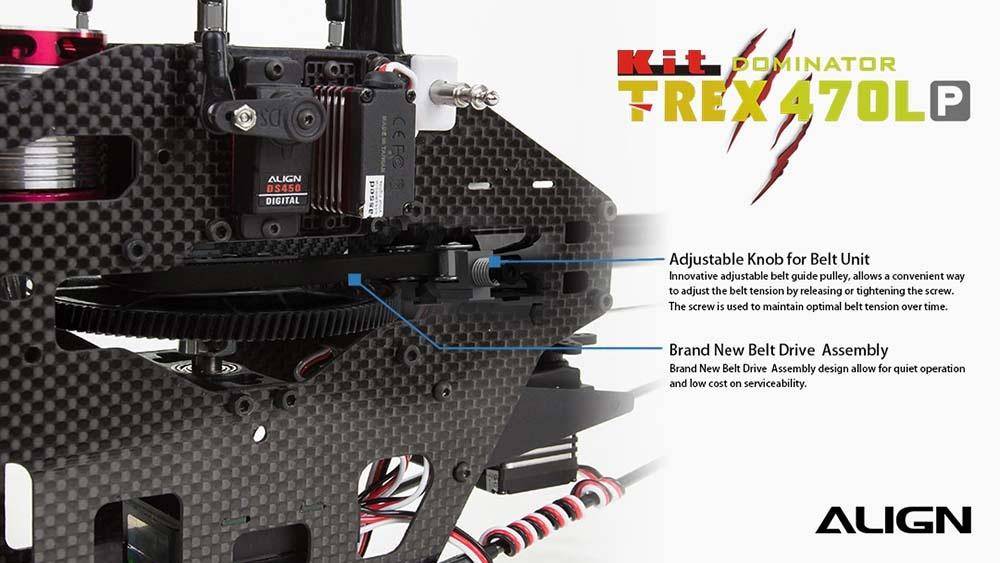

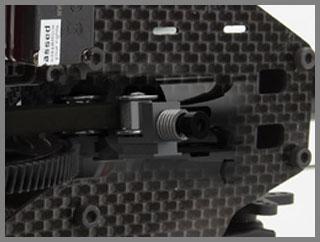

Innovative adjustable belt guide pulley, allows a convenient way to adjust the belt tension by releasing or tightening the screw. The screw is used to maintain optimal belt tension over time.

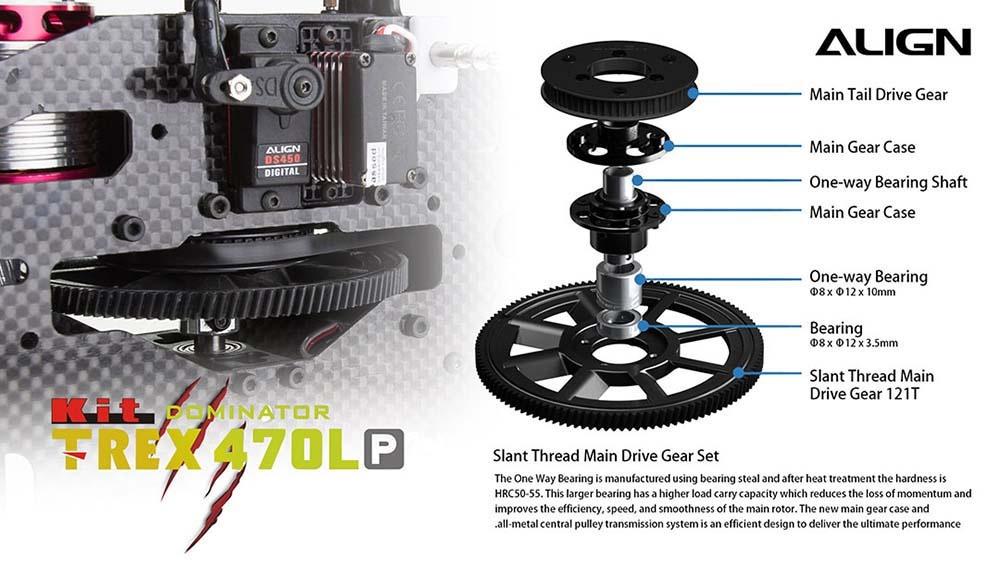

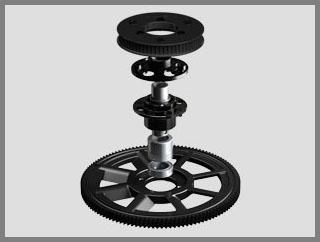

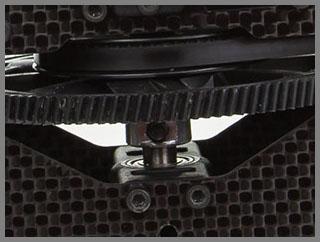

The One Way Bearing is manufactured using bearing steal, and after heat treatment, the hardness is HRC50-55. This larger bearing has a higher load carry capacity which reduces the loss of momentum and improves the efficiency, speed, and smoothness of the main rotor. The new main gear case and all-metal central pulley transmission system is an efficient design to deliver the ultimate performance.

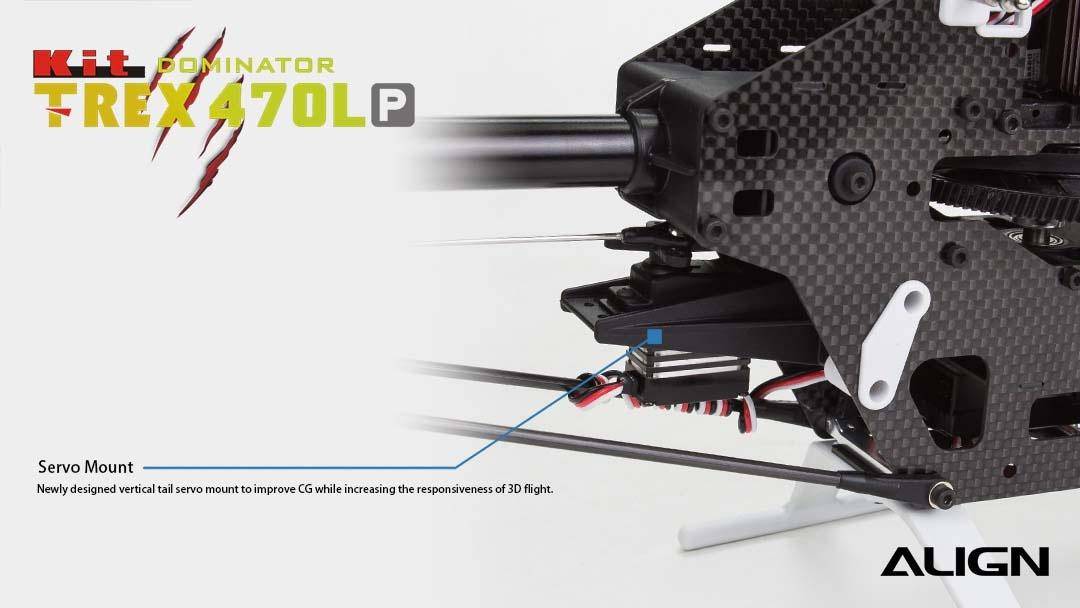

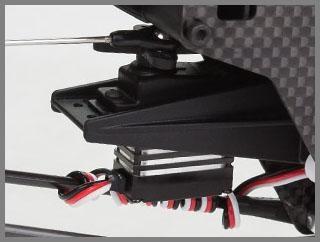

Newly designed vertical tail servo mount to improve CG while increasing the responsiveness of 3D flight.

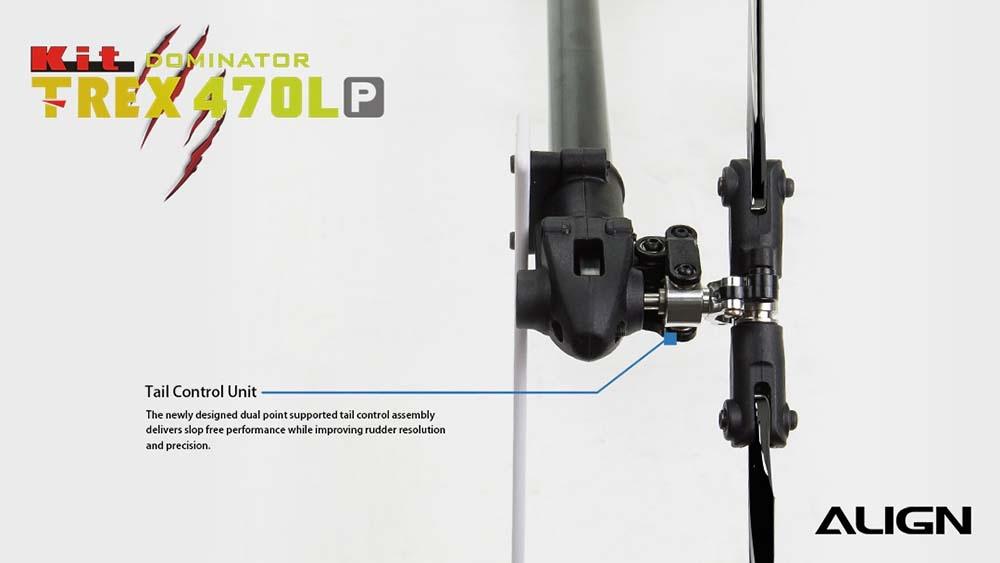

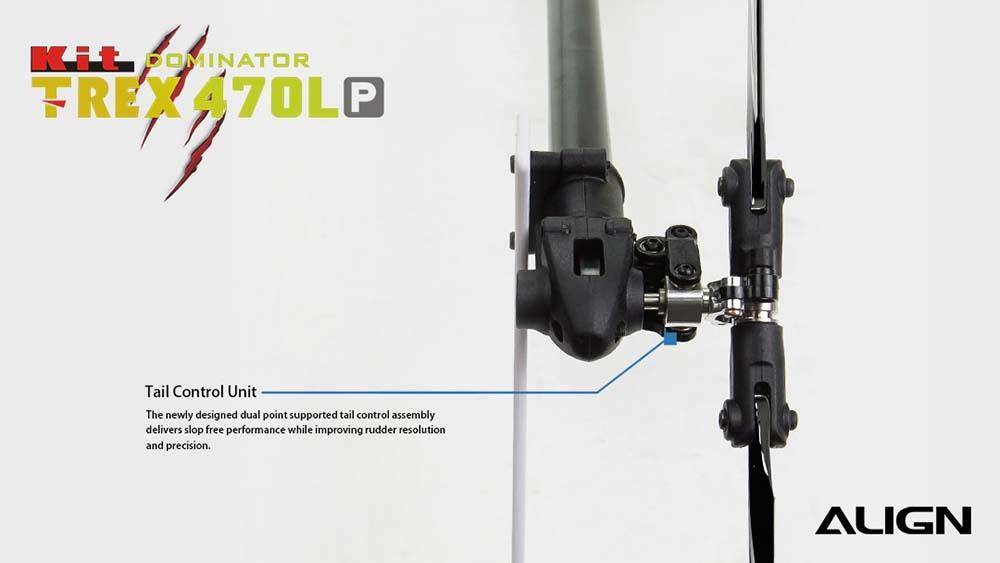

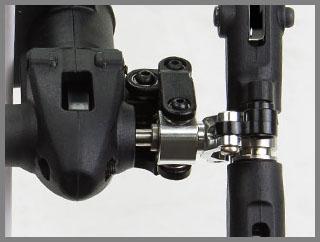

The newly designed dual point supported tail control assembly delivers slop free performance while improving rudder resolution and precision.

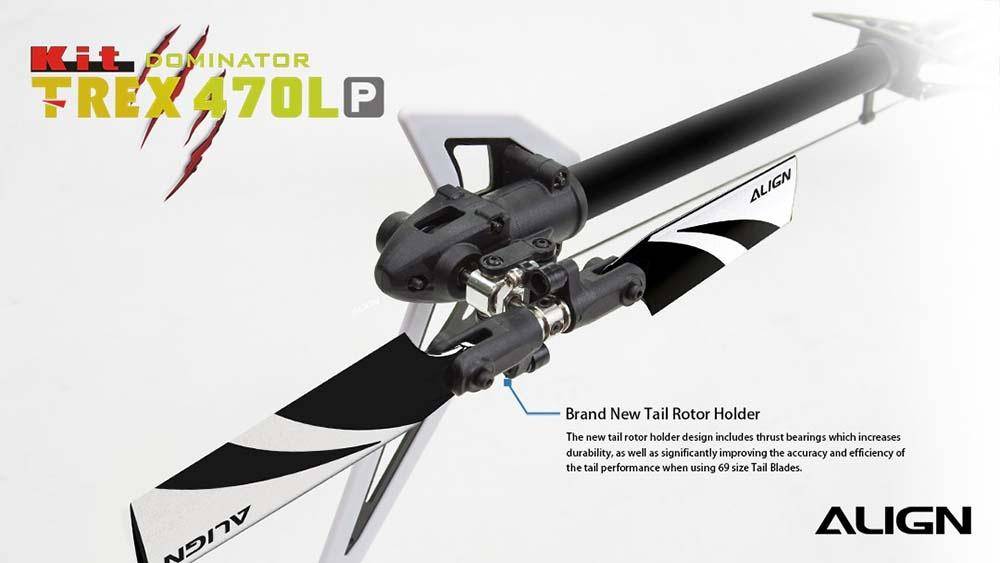

The new tail rotor holder design includes thrust bearings which increases durability, as well as significantly improving the accuracy and efficiency of the tail performance when using 69mm size Tail Blades.
- T-REX 470LP Dominator Kit
- 470MX Brushless Motor (1800KV/2818)
- 380mm Carbon Fiber Blades x 1 Set
- 69mm Tail Rotor Blade x 1 Set

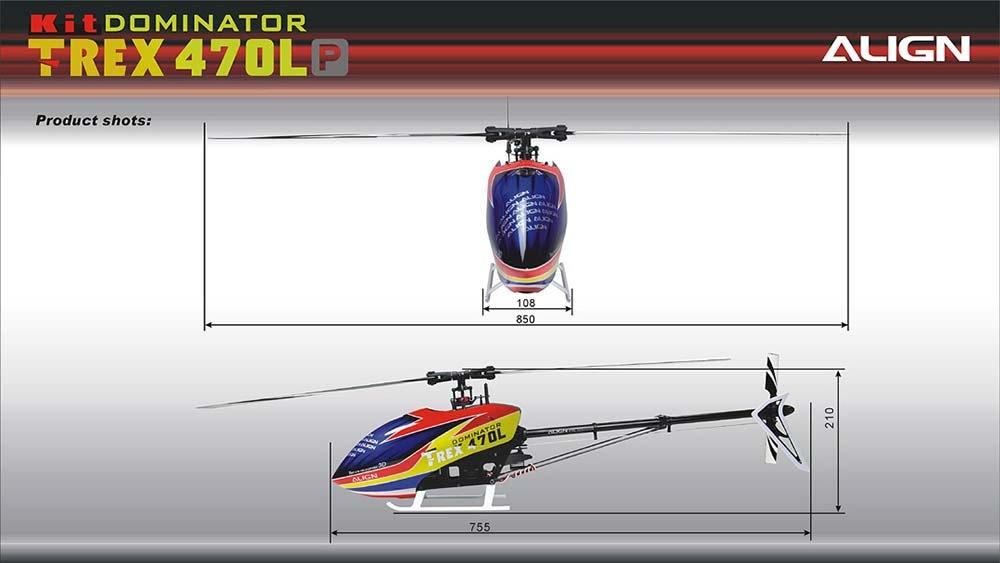

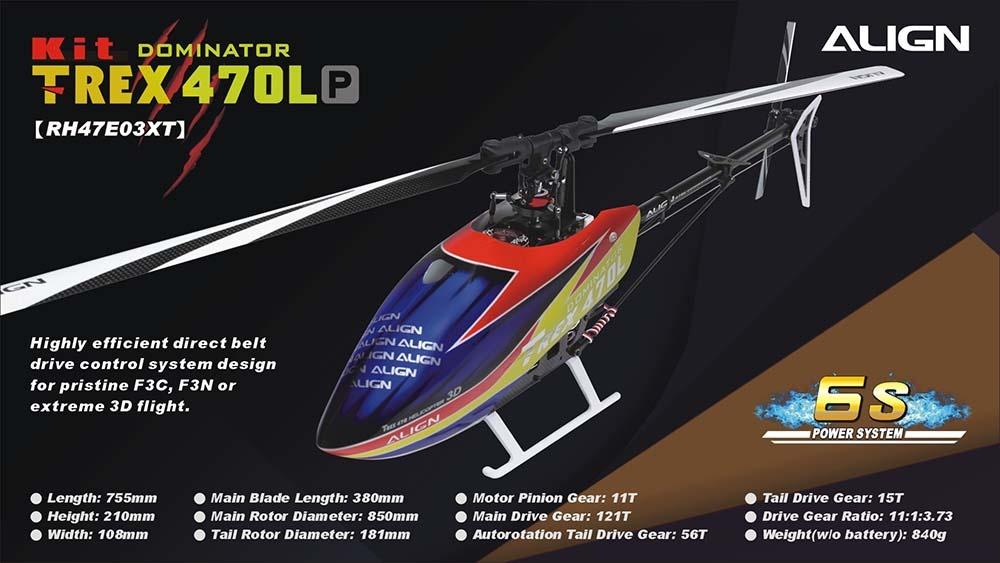

- Length: 755mm - 29.72In
- Height: 210mm - 8.27In
- Width: 108mm - 4.25In
- Main Blade Length: 380mm - 14.96In
- Main Rotor Diameter: 850mm - 33.46In
- Tail Rotor Diameter: 181mm - 7.13In
- Motor Pinion Gear: 11T
- Main Drive Gear: 121T
- Main Drive Pulley: 56T
- Tail Drive Gear: 15T
- Drive Gear Ratio: 11 : 1 : 3.73
- Weight (w/o Battery): 840g - 1.85Lbs
Additional Requied Equipment
- Transmitter (6-channel or more, helicopter system)
- Satelite Receiver or 6-Channel Receiver
- Cyclic Servos x 3
- Tail Servo
- Flybarless Gyro (Recommend Beastx)
- 6S Li-Po 1400 ~ 1850mAh x 1 Recommend 1450mAh Part # HBP14501
- Digital Pitch Gauge Part # HET80001
- Hex Screw Driver Set Part # HOT00002
