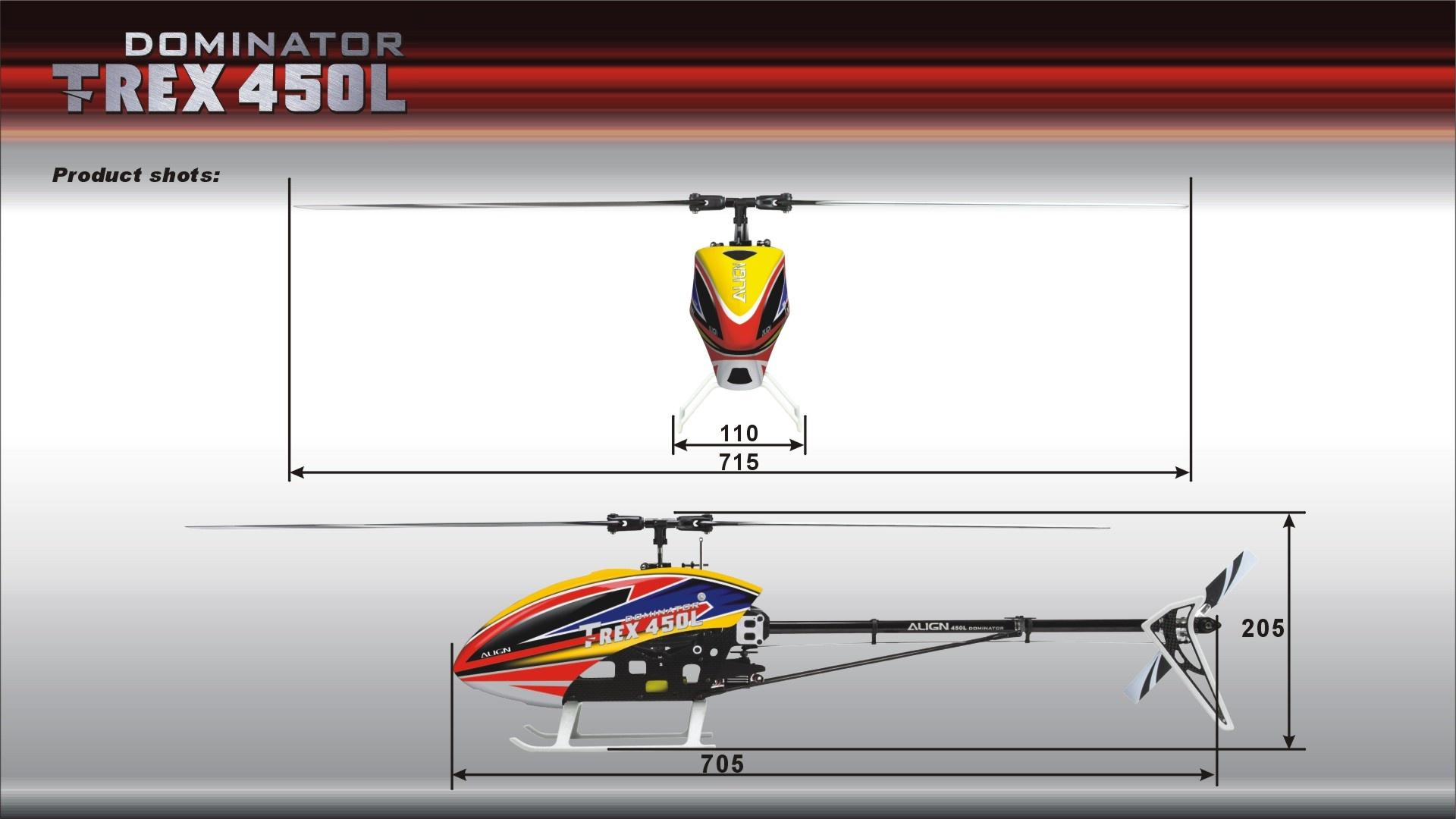

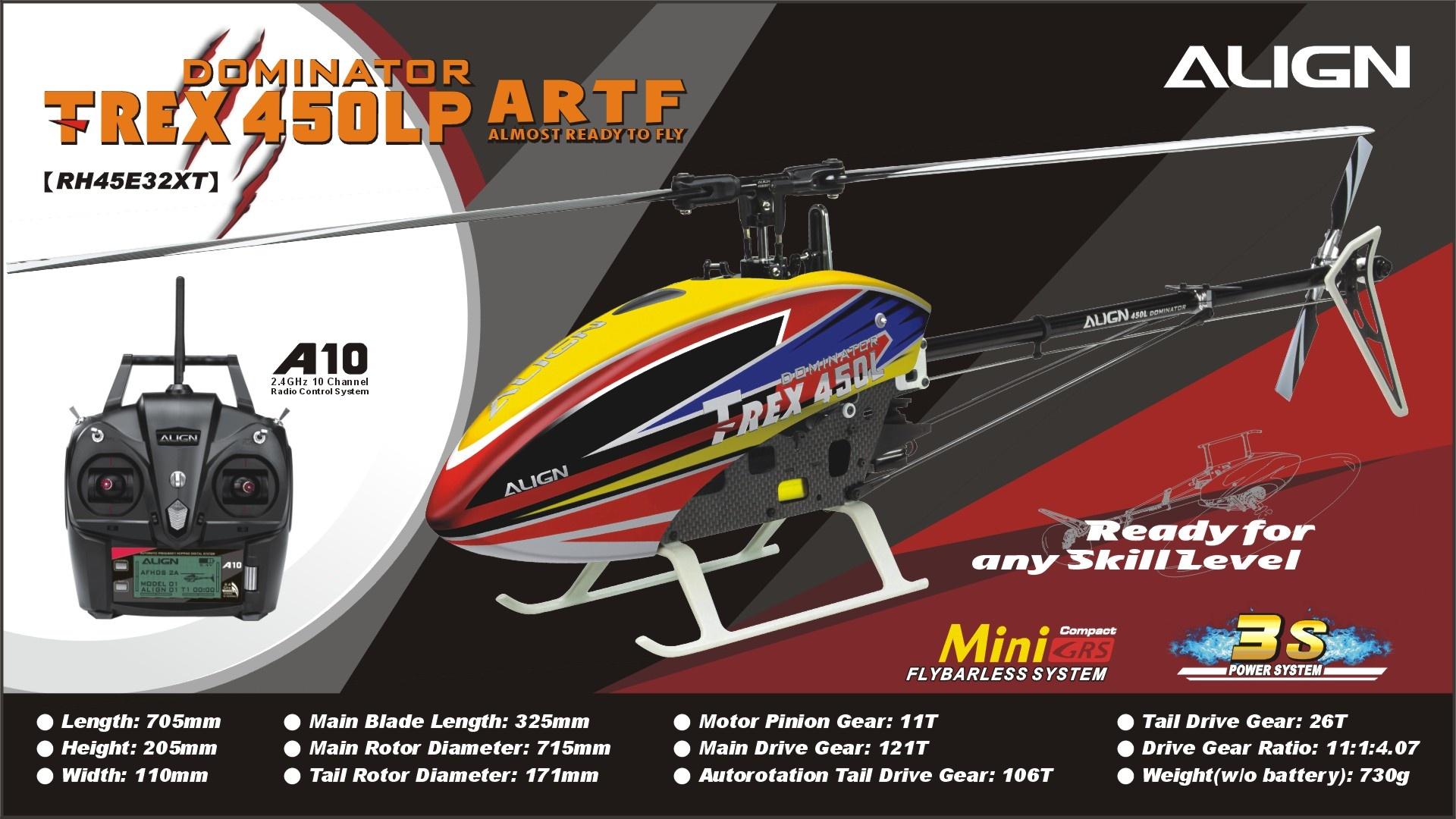

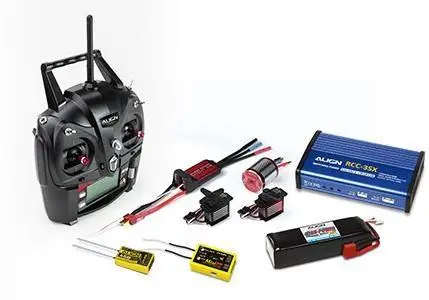

ALIGN T-REX 450L ARTF RH47E32

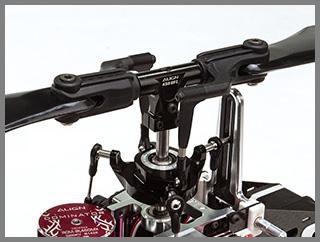

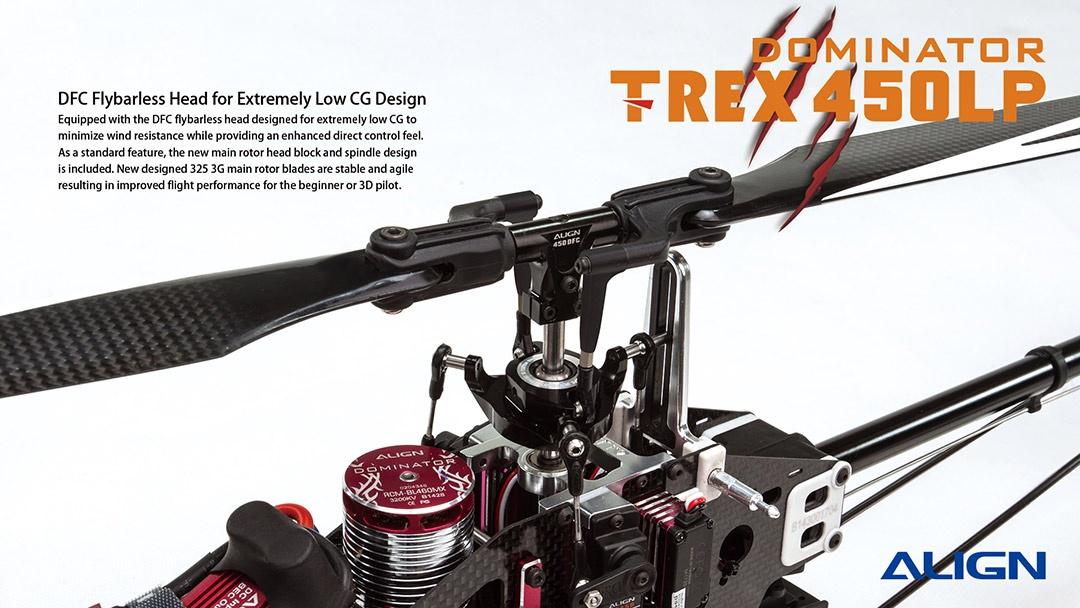

Equipped with the DFC flybarless head designed for extremely low CG (Center of Gravity) to minimize wind resistance while providing an enhanced direct control feel. Included as standard features are the new main rotor head block and spindle design. New designed 325mm 3D main rotor blades are stable and agile resulting in improved flight performance for the beginner or 3D pilot.

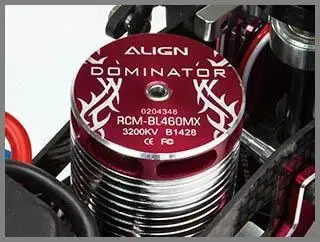

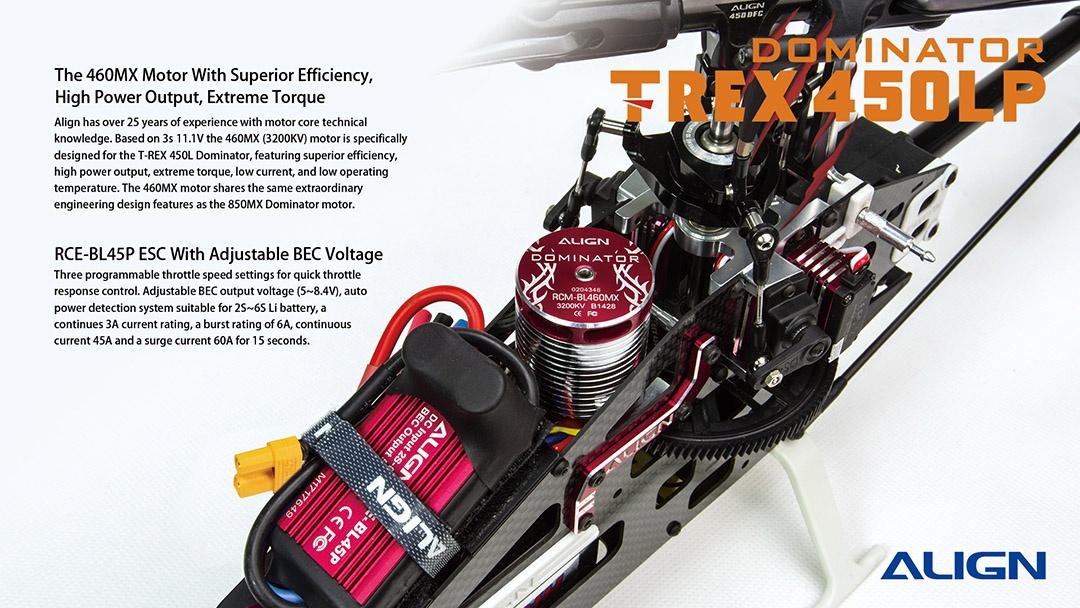

Align has over 25 years of experience with motor core technical knowledge. Based on 3s 11.1V the 460MX (3200KV) motor designed explicitly for the T-REX 450L Dominator, featuring superior efficiency, high power output, extreme torque, low current, and low operating temperature. The 460MX motor shares the same extraordinary engineering design features as the 850MX Dominator motor.

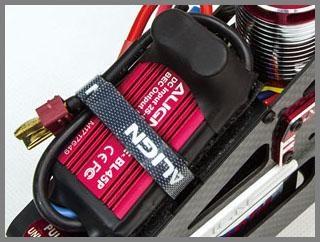

Three programmable throttle speed settings for quick throttle response control. Adjustable BEC output voltage (5~8.5V), auto power detection system suitable for 2S~6S LiPo battery, a continues 3A current rating, a burst rating of 6A, continuous current 50A and a surge current 60A for 15 seconds.

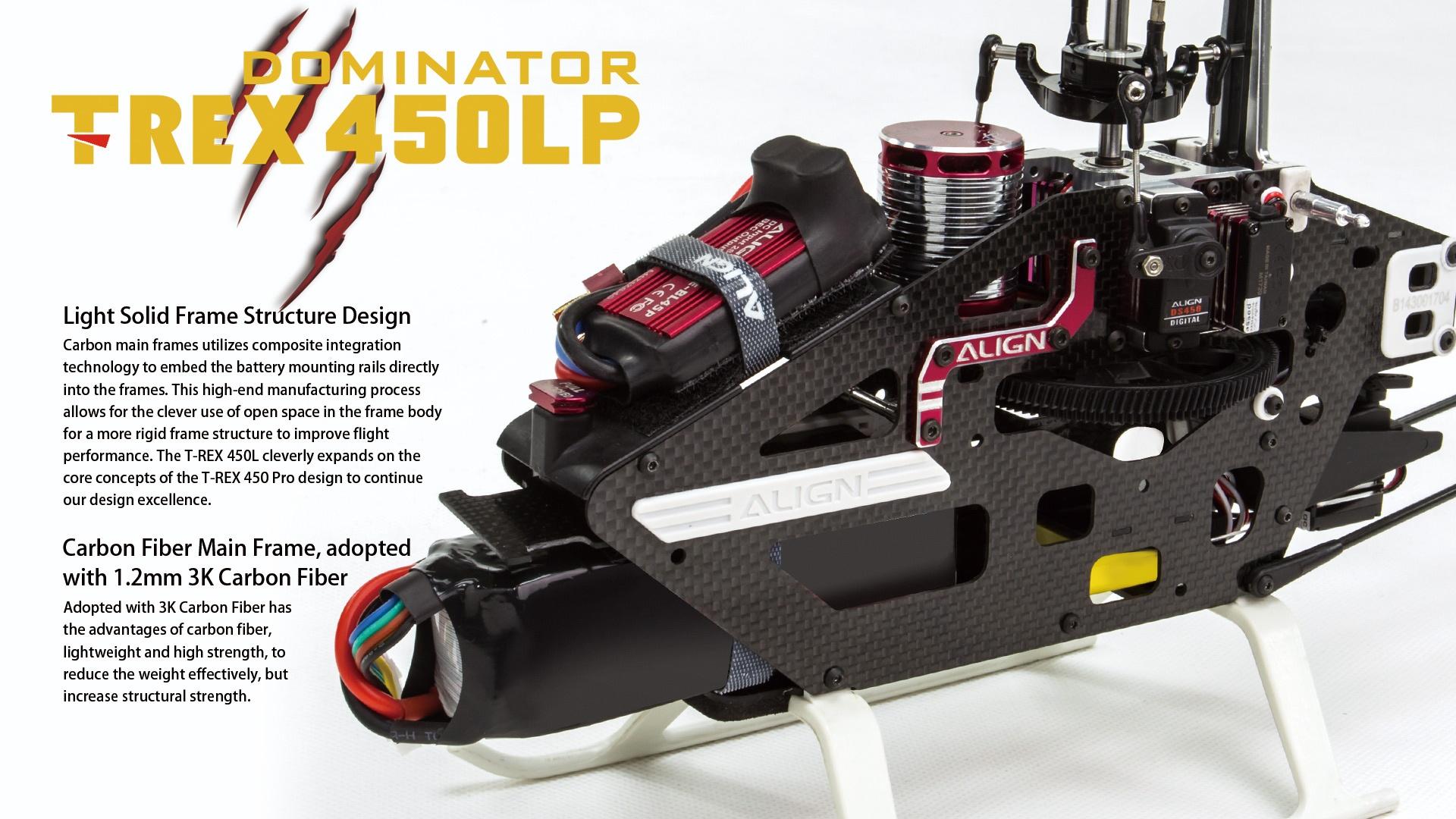

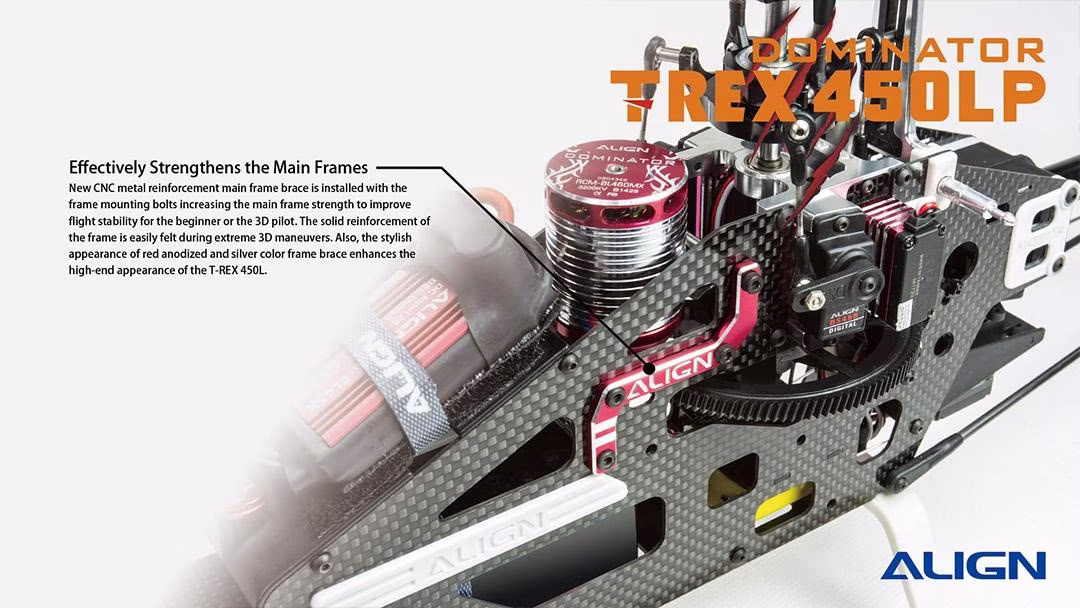

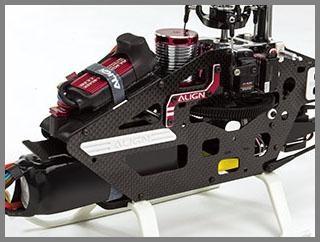

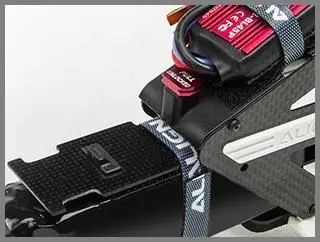

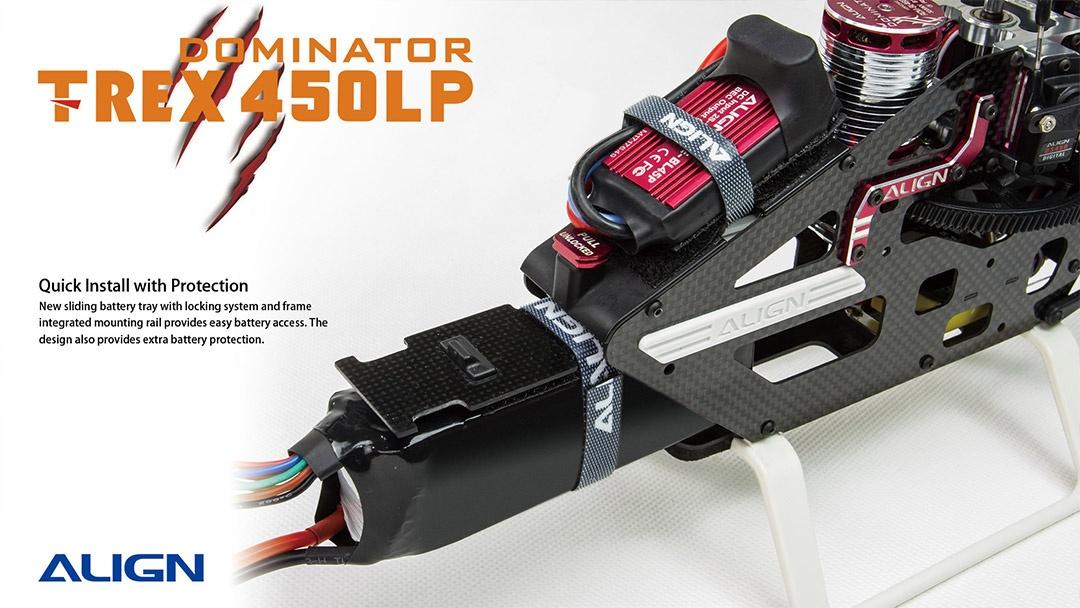

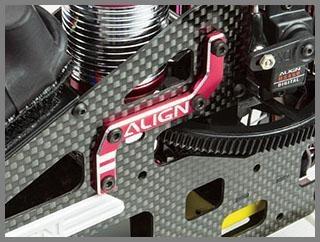

Carbon main frames utilize composite integration technology to embed the battery mounting rails directly into the frames. This high-end manufacturing process allows for the intelligent use of open space in the frame body for a more rigid frame structure to improve flight performance. The T-REX 450L cleverly expands on the core concepts of the T-REX 450 Pro design to continue our design excellence.

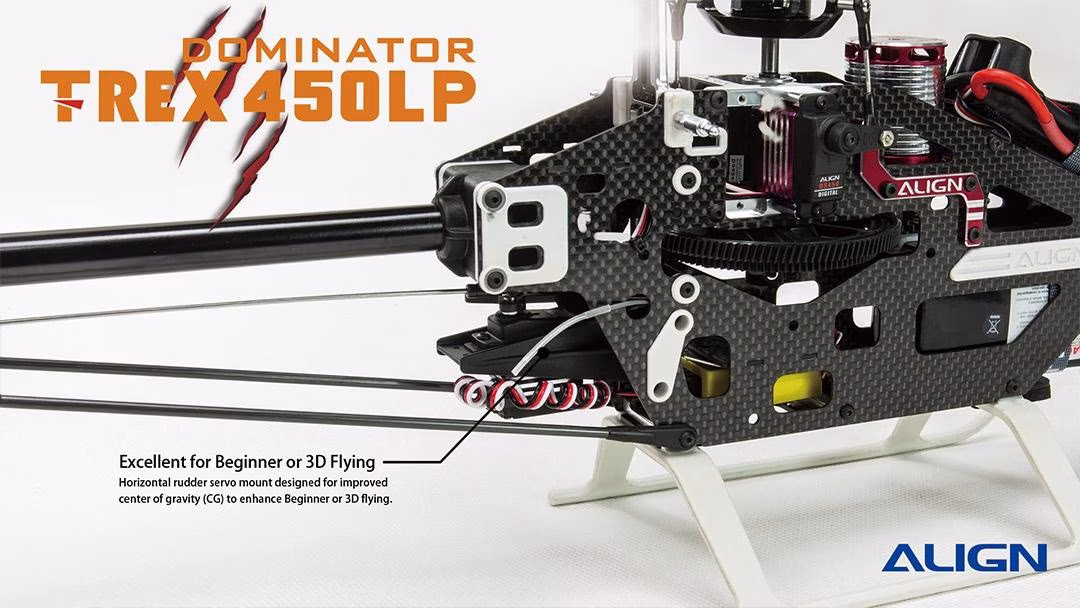

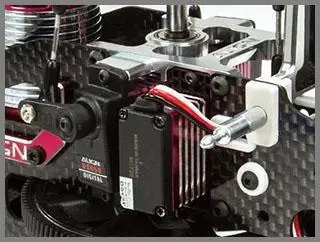

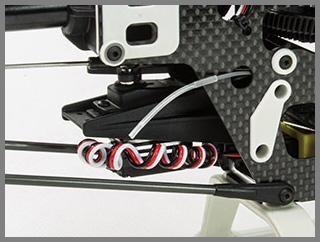

Horizontal rudder servo mount designed for improved center of gravity (CG) to enhance Beginner or 3D flying.

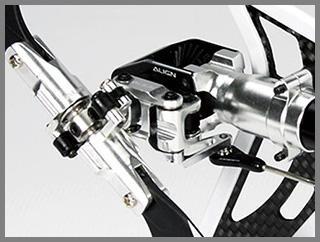

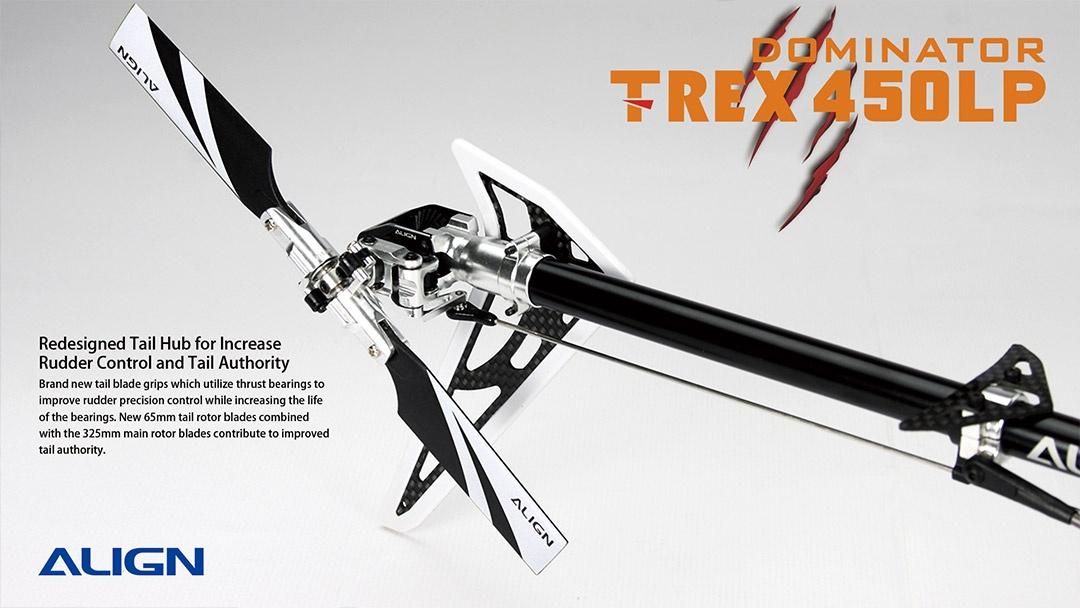

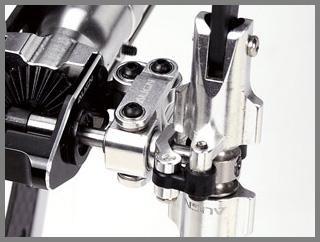

Brand new tail blade grips which utilize thrust bearings to improve rudder precision control while increasing the life of the bearings. New 65mm tail rotor blades combined with the 360mm main rotor blades contribute to improved tail authority.

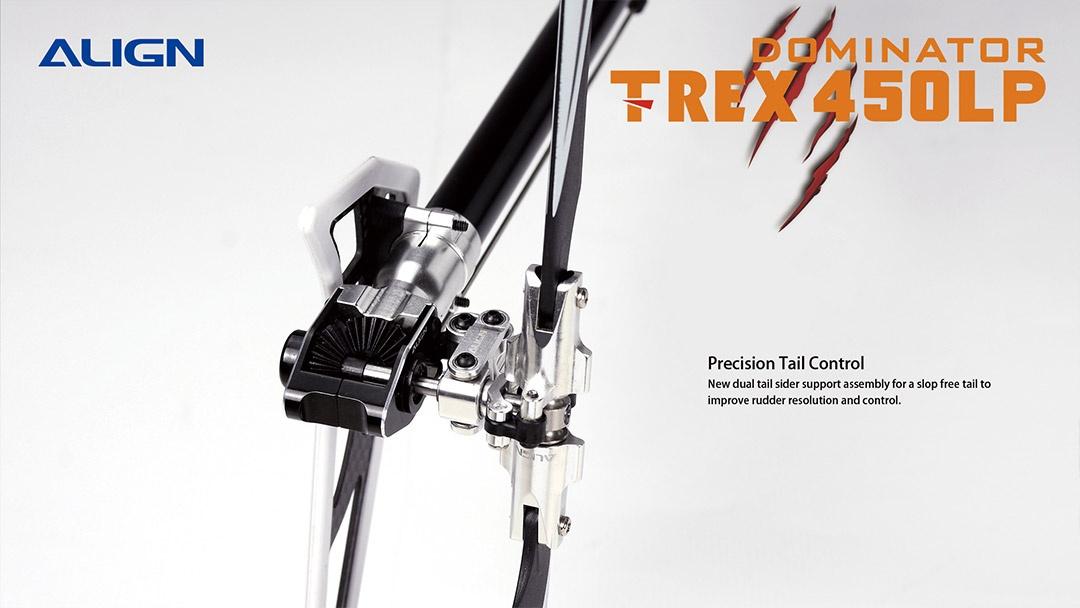

New dual tail sider support assembly for a slop free tail to improve rudder resolution and control.

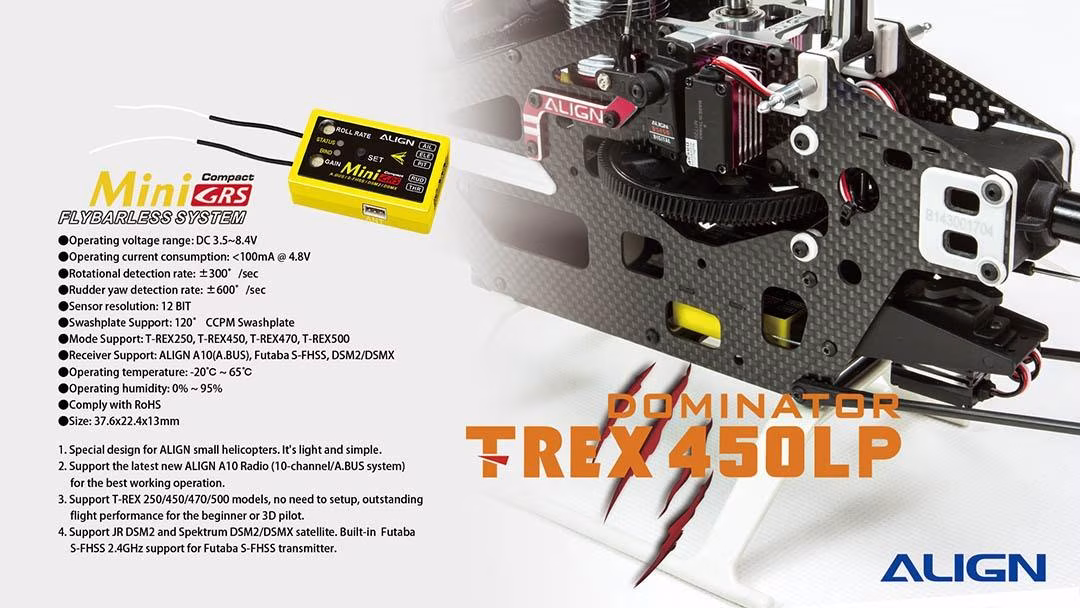

1. Specifically, design for ALIGN small helicopters. It's light and simple.

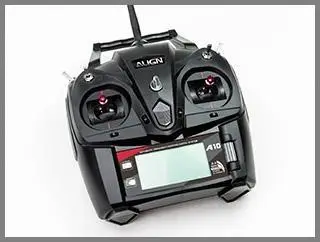

2. Support the latest new ALIGN A10 Radio (10-channel/A.BUS system) for the best working operation.
3. Support T-REX 250/450/470/500 models, no need to setup, outstanding flight performance for the beginner or 3D pilot.
4. Support JR DSM2 and Spektrum DSM2/DSMX satellite. Built-in Futaba S-FHSS 2.4GHz support for Futaba S-FHSS transmitter.

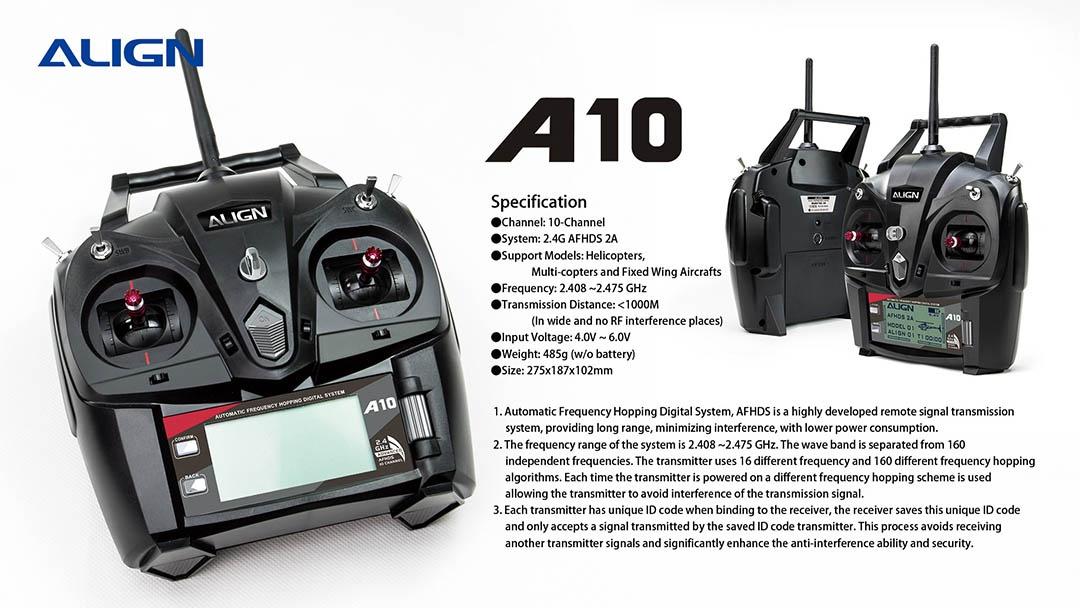

1. Automatic Frequency Hopping Digital System, AFHDS is a highly developed remote signal transmission system, providing long range, minimizing interference, with lower power consumption.
2. The frequency range of the system is 2.408 ~ 2.475 GHz. The waveband is separated from 160 independent frequencies. The transmitter uses 16 different frequency and 160 different frequency hopping algorithms. Each time the transmitter is powered on a different frequency hopping scheme is used allowing the transmitter to avoid interference of the transmission signal.
3. Each transmitter has unique ID code when binding to the receiver, the receiver saves this unique ID code and only accepts a signal transmitted by the saved ID code transmitter. This process avoids receiving another transmitter signals and significantly enhance the anti-interference ability and security.

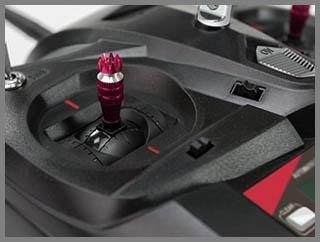

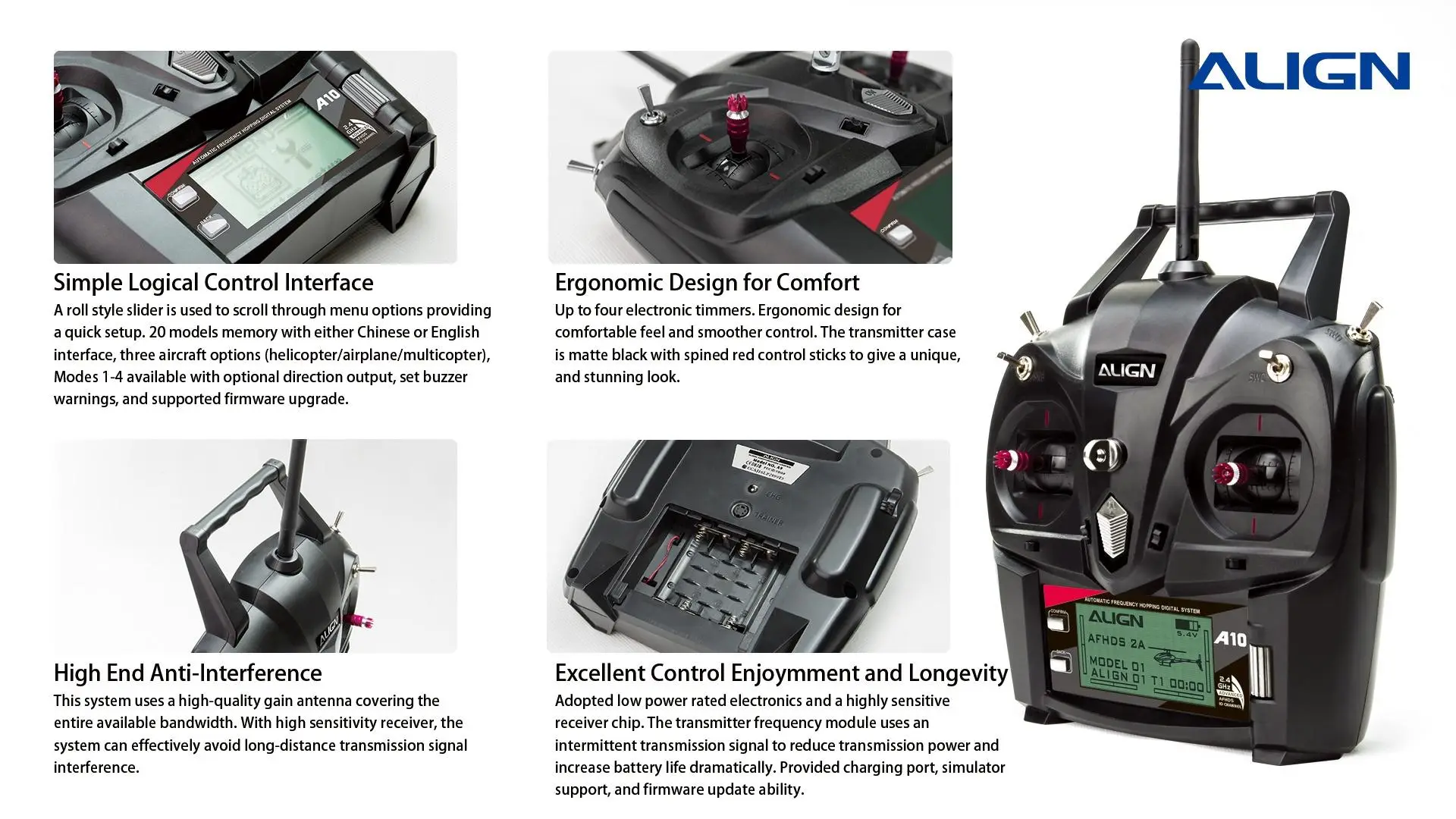

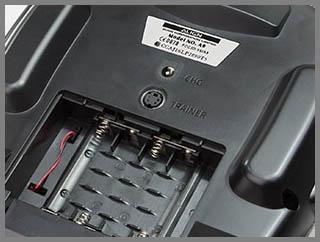

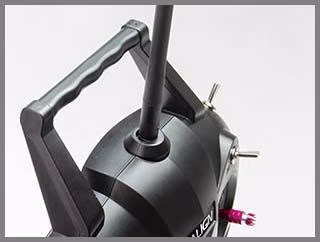

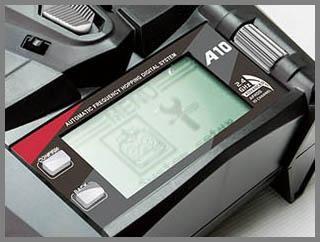

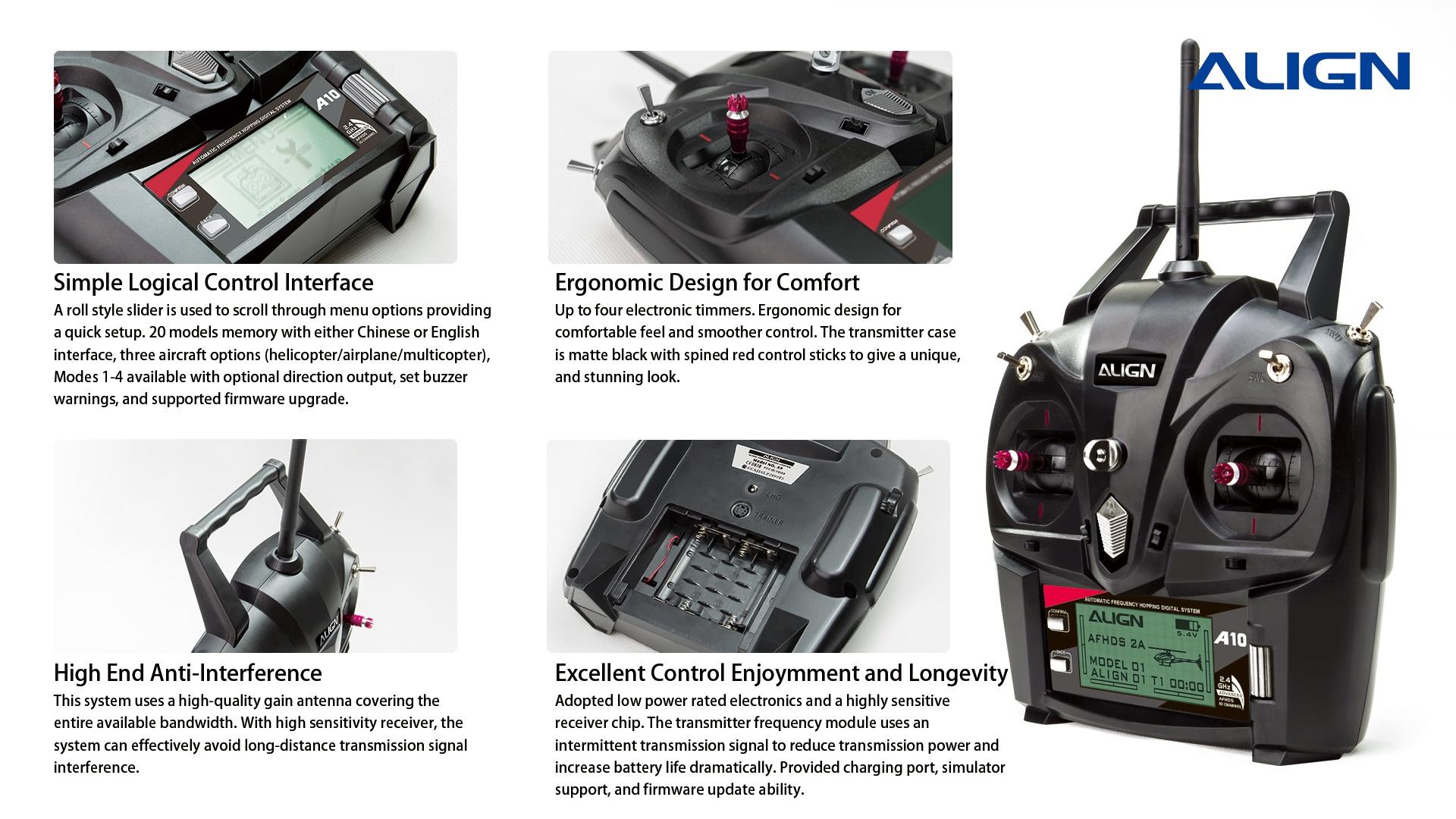

A roll style slider is used to scroll through menu options providing a quick setup. 20 models memory with either Chinese or English interface, three aircraft options (helicopter/airplane/multicopter), Modes 1-4 available with optional direction output, set buzzer warnings, and supported firmware upgrade.

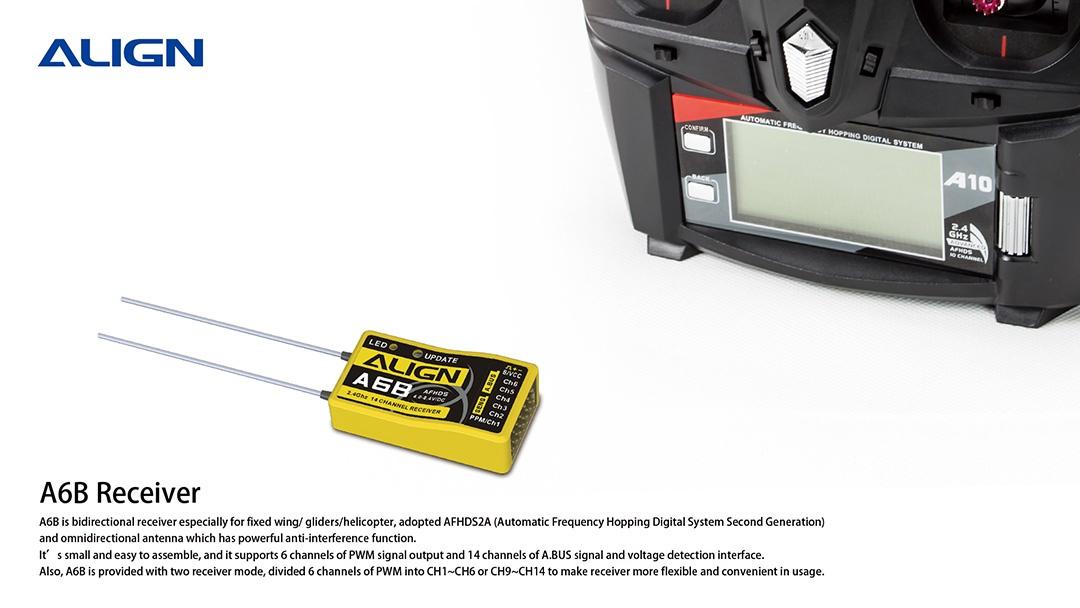

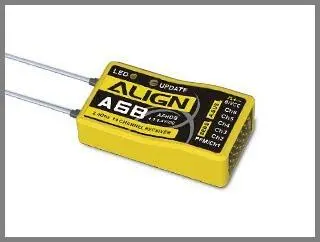

A6B is a bi-directional receiver for fixed wing/gliders/helicopter, adopts AFHDS2A (Automatic Frequency Hopping Digital System Second Generation) and omnidirectional antenna which has a powerful anti-interference function.
It’s small and supports 6 channels PWM signal output and 14 channels of A.BUS signal and voltage detection interface.
Also, A6B provides two receiver mode, divided 6 channels PWM into CH1~CH6 or CH9~CH14 to make the receiver more flexible and convenient in usage.

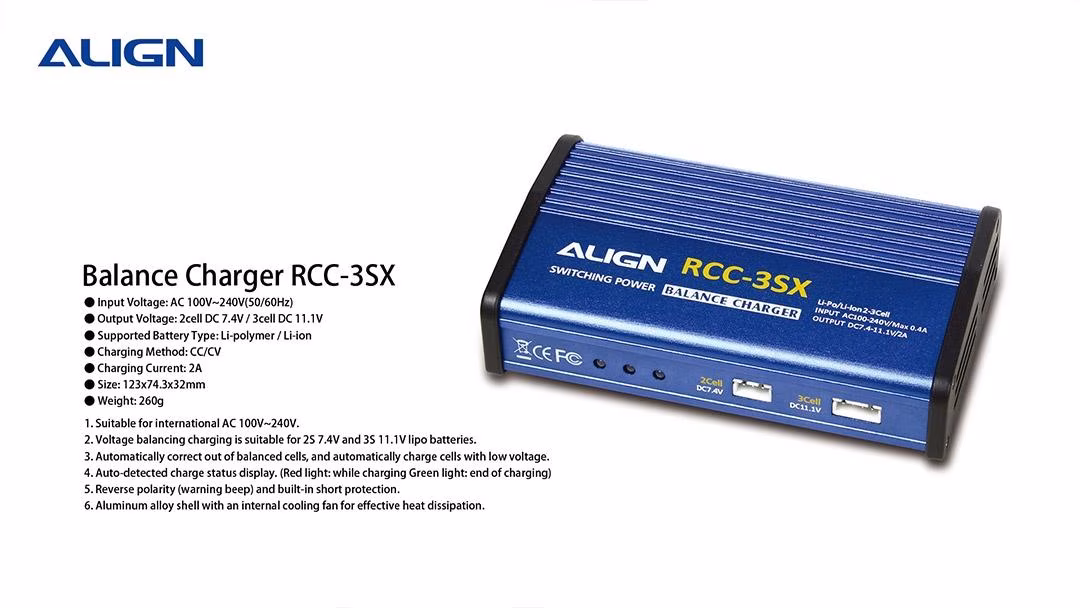

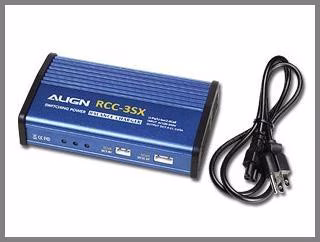

1. Suitable for international AC 100V~240V.
2. Voltage balancing charging is suitable for 2S 7.4V and 3S 11.1V lipo batteries.
3. Automatically correct out of balanced cells, and automatically charge cells with low voltage.
4. Auto-detected charge status display. (Red light: while charging Green light: end of charging)
5. Reverse polarity (warning beep) and built-in short protection.
6. Aluminum alloy shell with an internal cooling fan for effective heat dissipation.
