Regular Price $1,525.99
Now $1,399.99

 Regular Price $1,525.99 Now $1,399.99

buy now

buy now

buy now

Regular Price $1,525.99
Now $1,399.99

 Save $126.00 Today

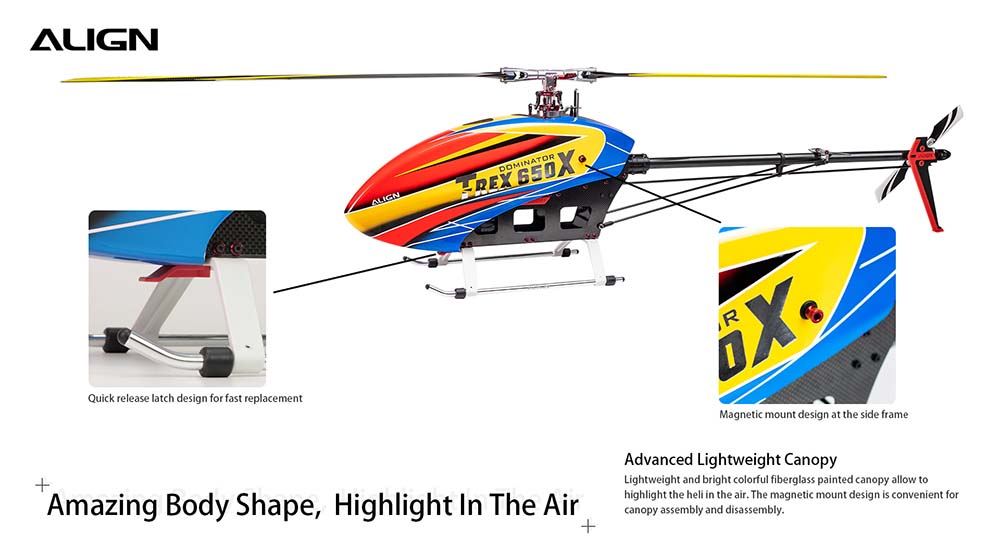

T-REX 650X F3C Super Combo RH65E03XW

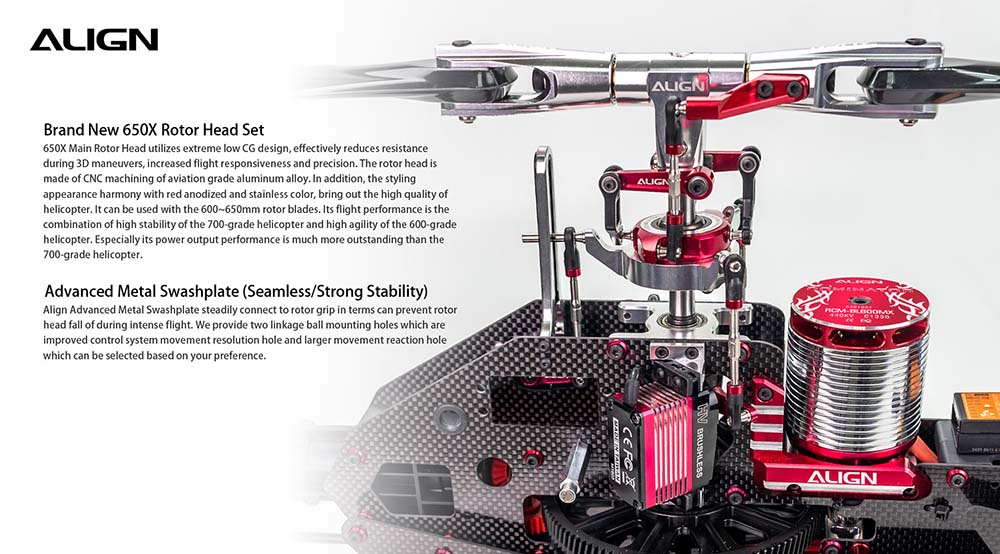

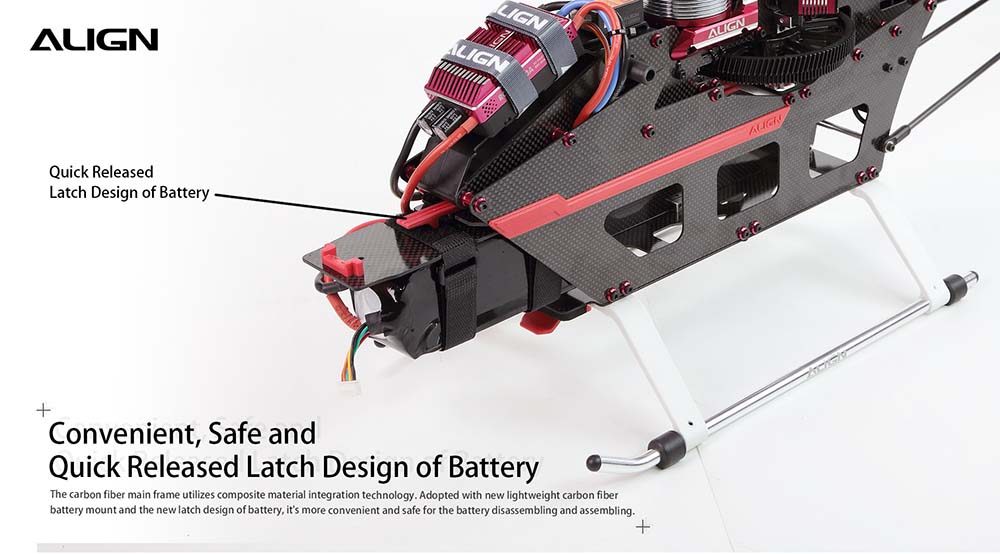

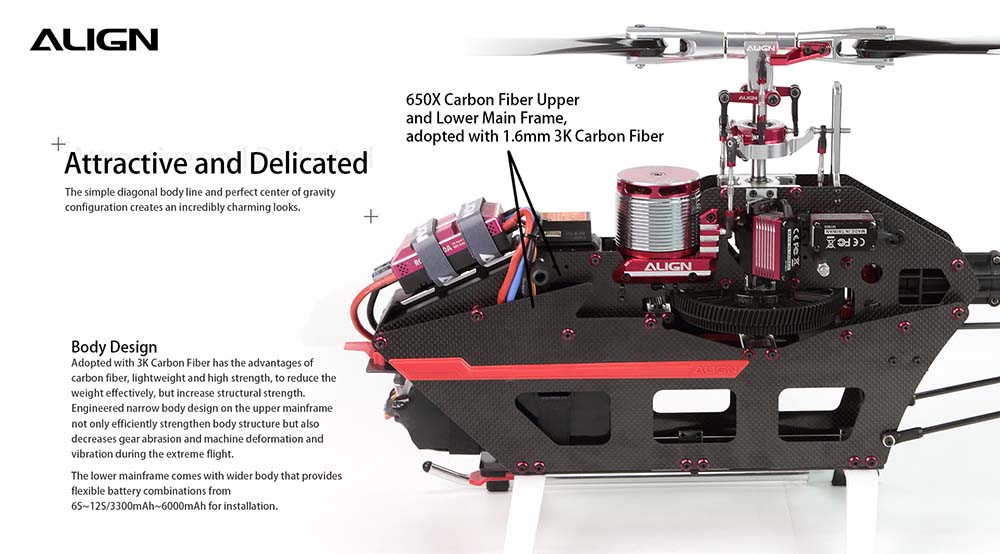

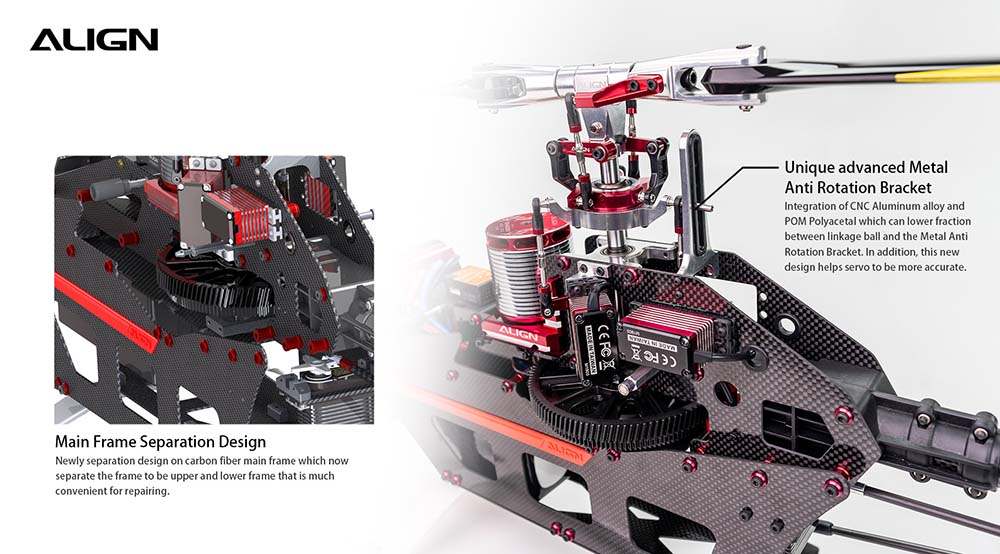

“T-REX 650X F3C” is a special design for hobby use and competition. T-REX 650X body size is between T-REX 600 and T-REX 700 class size helicopter. It adopts integrated composite material and technology that efficiently enhances structure intensity and makes repair convenient. The upper narrow main frame strengthens the structure but also prevents the body from deformation, vibration, and gear abrasion in extreme flights. The lower, wider main frame is designed with a quick-release latch for battery insertion and removal convenience and safety. The flybarless rotor head is a low CG design better for F3C flight, allowing for wind resistance reduction and improving superior flying feel and stability.

T-REX 650X has an ALIGN 800MX (720KV) motor with excellent torque and high efficiency. Besides, the reinforcement plate can strengthen frame structure and efficiently lower motor heat up to 20°C on every flight on average. The brushless RCE-BL130A ESC supports 6S 5200~6000mAh battery input. Pilots can choose main blades from 600~650mm based on their preference for outstanding flight performance.

“T-REX 650X F3C” is a helicopter for all pilots that has both superpower and excellent stable flight like 700 class size helicopter and elegant slow flight performance like 600 class size helicopter. For F3C precise flight or slow fancy flight, T-REX 650X can satisfy pilots’ desire for flying.

buy 650x parts

previous arrow
next arrow
previous arrow
next arrow

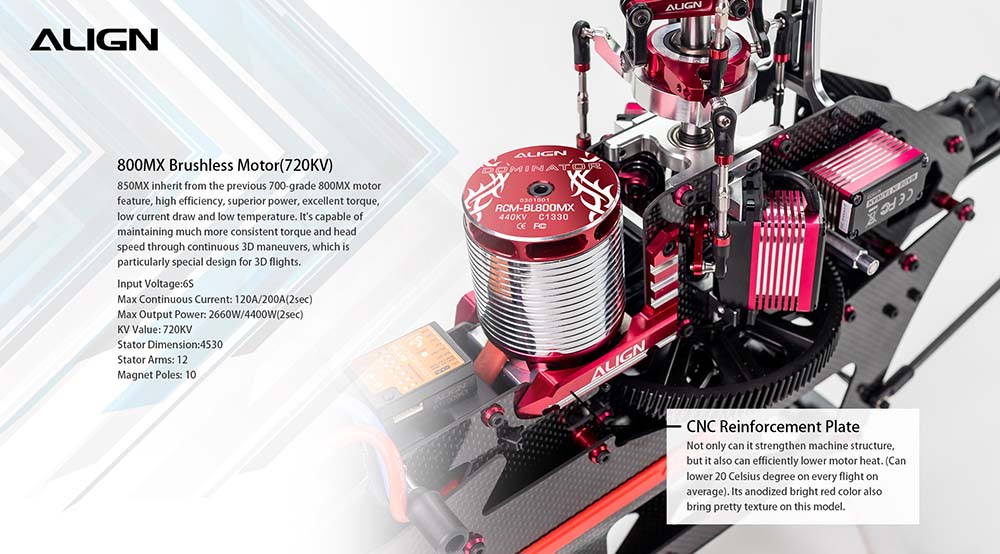

800MX (720KV/4530) Brushless Motor
  • Input Voltage: 6S Max
  • Continuous Current: 120A/200A (2sec)
  • Max Output Power: 2660W/4400W (2sec)
  • KV Value: 720KV
  • Stator Dimension: 4530
  • Stator Arms: 12
  • Magnet Poles: 10
  • Dimension: Spindle 6x56.7x94.5mm
  • Weight: 515g - 1.14lbs

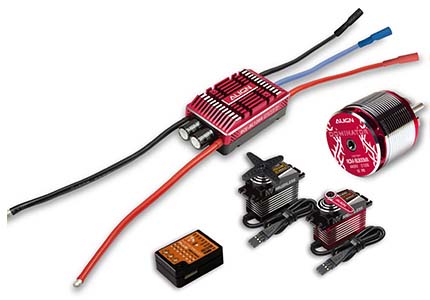

Standard Equipment
  • T-REX 650X Kit

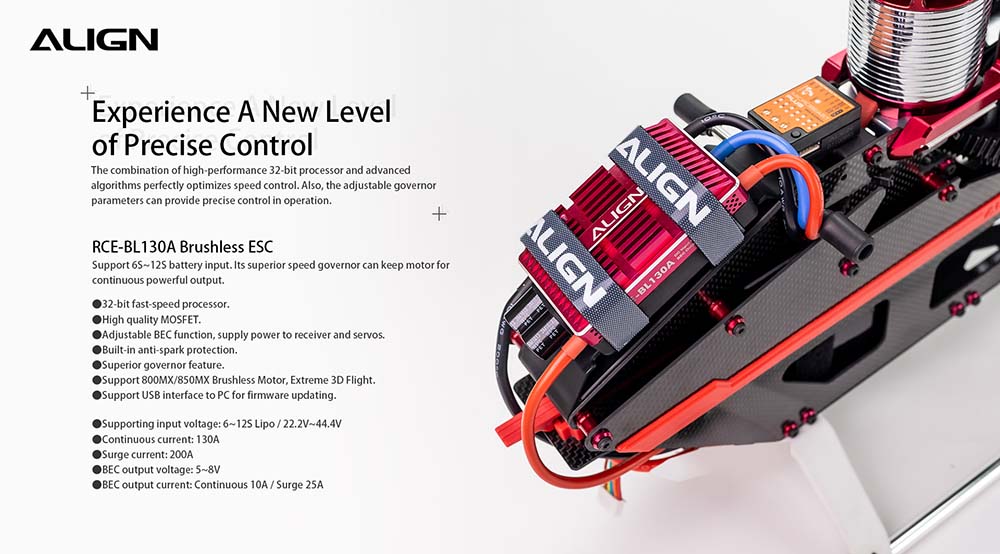

  • RCE-BL130A Brushless ESC
  • 800MX Brushless Motor (720KV/4530)

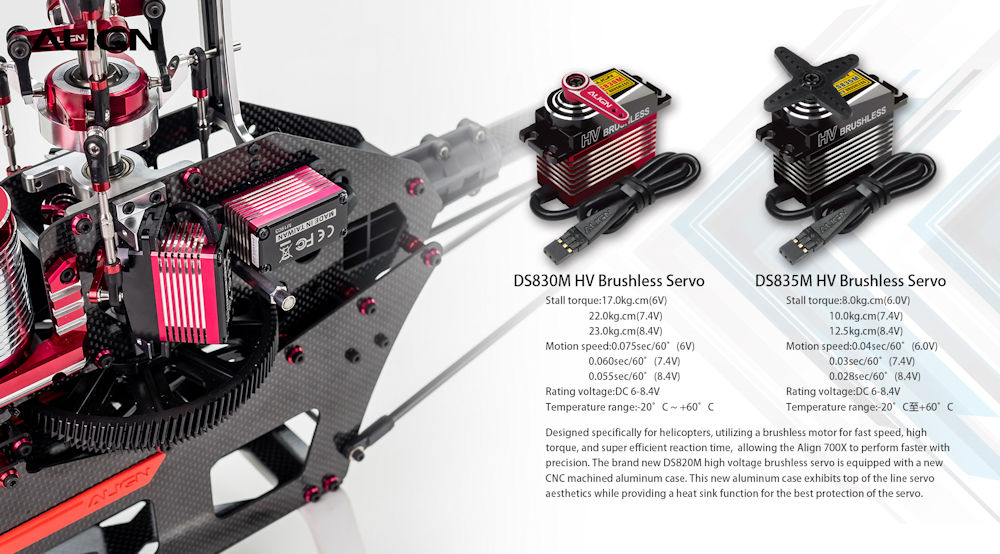

  • DS830M HV Servo x 3 Freq: 200hz
  • DS835M HV Servo Pulse: 1520µs / Freq: 333hz
  • 650mm Carbon Fiber Blades
  • 105mm 3K Carbon Fiber Tail Blades
  • Microbeast Beastx Flybarless System



Additional Required Equipment
  • Transmitter (6-channel or more, helicopter system)
  • Receiver (6-channel or more)
  • 6S Li-Po 3000 ~ 6000mAh x 1 Recommend 5200mAh Part # HBP52004
  • Digital Pitch Gauge Part # HET80001
  • Hex Screw Driver Set
Specification

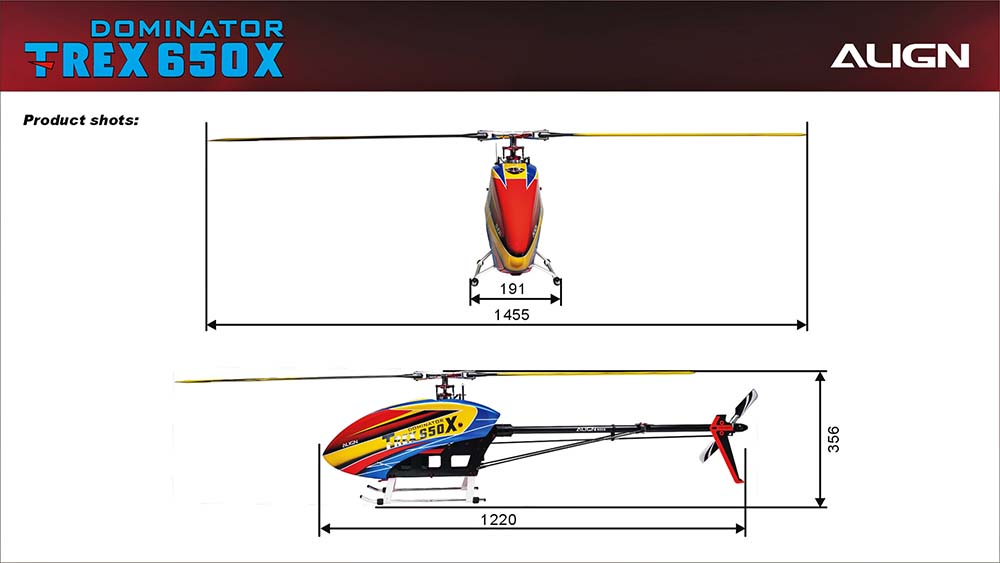

  • Length: 1220mm - 48.03In
  • Height: 356mm - 14.02In
  • Width: 191mm - 7.52In
  • Main Blade Length: 650mm - 25.59In
  • Main Rotor Diameter: 1455mm - 57.28In
  • Tail Blade Length: 105mm - 4.13In
  • Tail Rotor Diameter: 280mm - 11.02In
  • Motor Pinion Gear: 16T

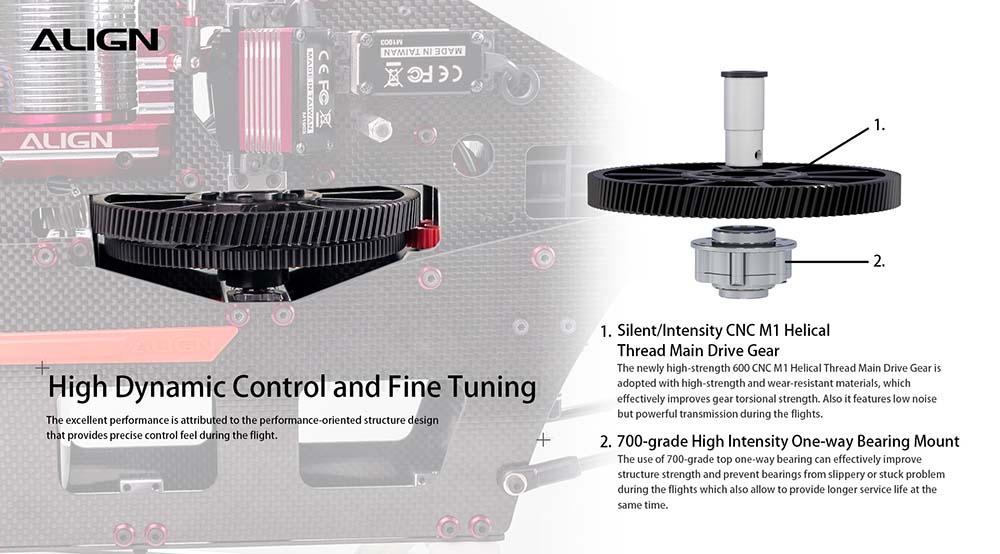

  • Main Drive Gear: 112T
  • Autorotation Tail Drive Gear: 131T
  • Tal Drive Gear 34T
  • Drive Gear Ratio: 7: 1 : 3.85
  • Max RPM (approx): 2400
  • Weight (w/o Battery): 3320g - 7.32Lbs
