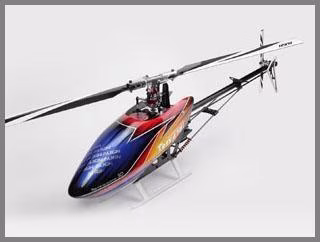

ALIGN T-REX 470LM Super Combo Belt RH47E01
Following the release of the ALIGN T-REX 450L, which introduced an innovative design and came equipped with high-end electronic equipment. ALIGN's most anticipated helicopter release in 2016 the T-REX 470L is born. No matter whether you are a newcomer or a professional, the brand new T-REX 470LM will give you the new flying feel again.
The 470EFL Main Rotor Head provides superior flight stability and offers a lower CG design to reduce flying resistance while providing a more rigid and fast rotor head response. To improve the strength and durability of the main and feathering shaft the 470 main shaft outer dimension was increased from 5mm to 6mm, while the feathering shaft outer dimension was increased from 4mm to 5mm. The ALIGN 470LM has adopt a high quality 1.2mm 3K carbon fiber main frame and a wider body design which increases the size of the battery compartment allowing the use of larger capacity battery. The ALIGN 470LM utilizes a high efficient belt drive assembly design with an innovative adjustable belt guide pulley, providing a convenient way to adjust the belt tension by releasing or tightening the screw. This screw is used to maintain optimal belt tension improving the life of the belt and lowering maintains costs. The landing skid is tilted 5 degrees forward to improve crashworthiness and makes TREX 470LM more avant-garde and dynamic.

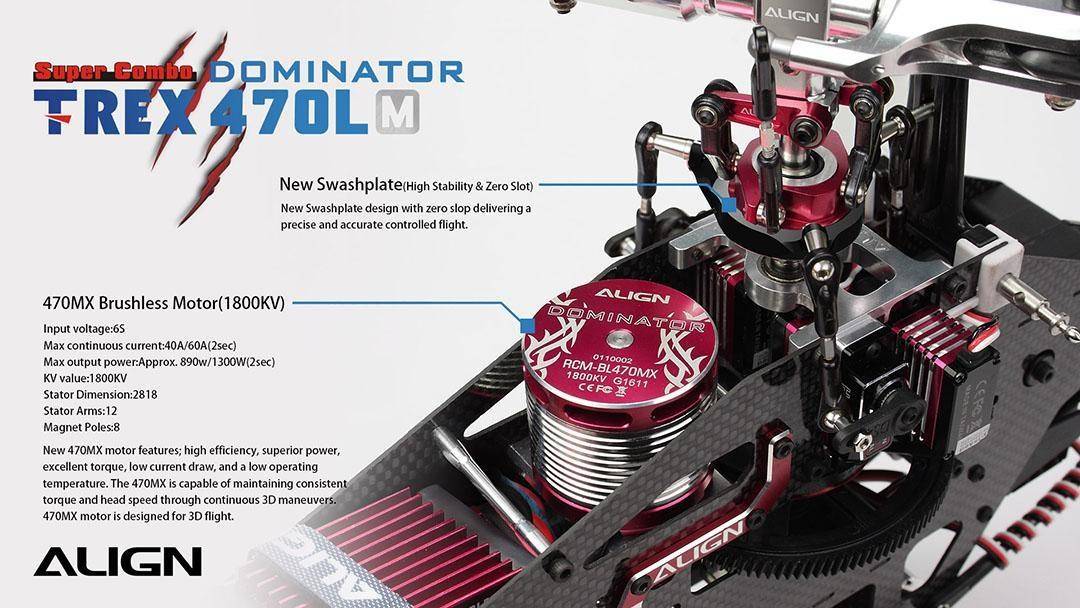

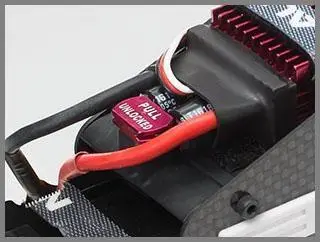

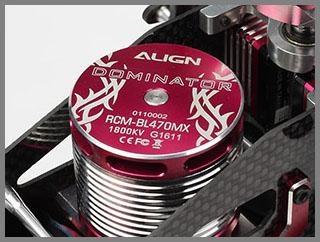

The ALIGN TREX 470LM Super Combo Belt RH47E01 is equipped with the large outer diameter 470MX motor (1800KV) which is highly efficient providing superior power, excellent torque, improved current draw, and a lower operating temperature which are excellent improvements as compared to the 460MX motor. The brand new DS450M digital cyclic servos and DS455M digital tail servo, support up to V8.4, high voltage input, improving the servos torque and speed. The new RCE-BL50X brushless ESC with an internal BEC provides 5.0V to 8.4V which can be set based on servo specification. The new high-end electronics effectively enhance flight performance.

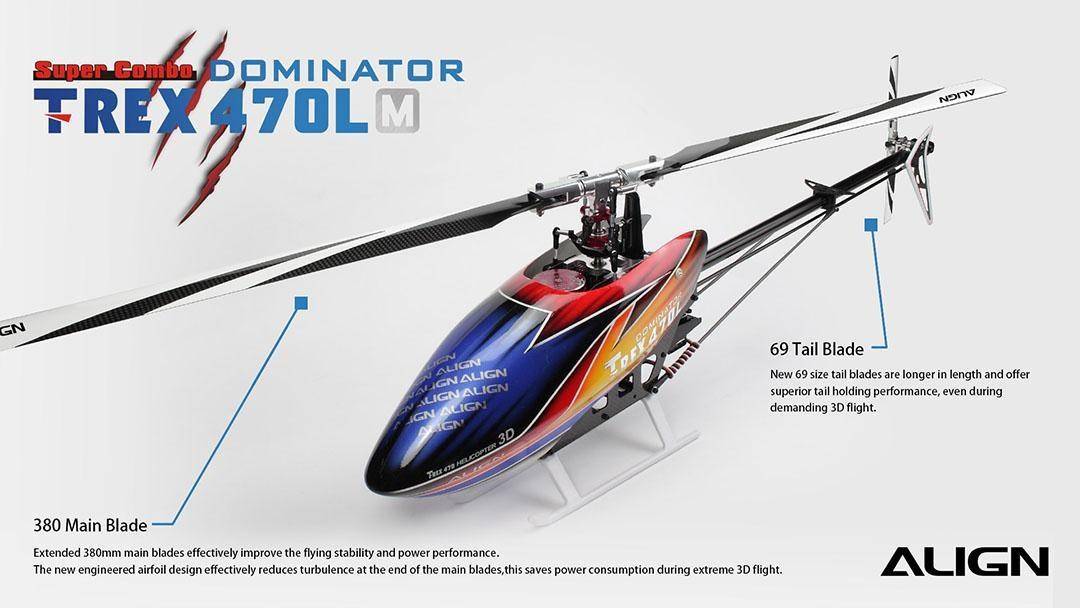

Extended 380mm main blades effectively improve the flying stability and power performance. The new engineered airfoil design effectively reduces turbulence at the end of the main blades,this saves power consumption during extreme 3D flight. New 69mm size tail blades are longer in length and offer superior tail holding performance, even during demanding 3D flight.

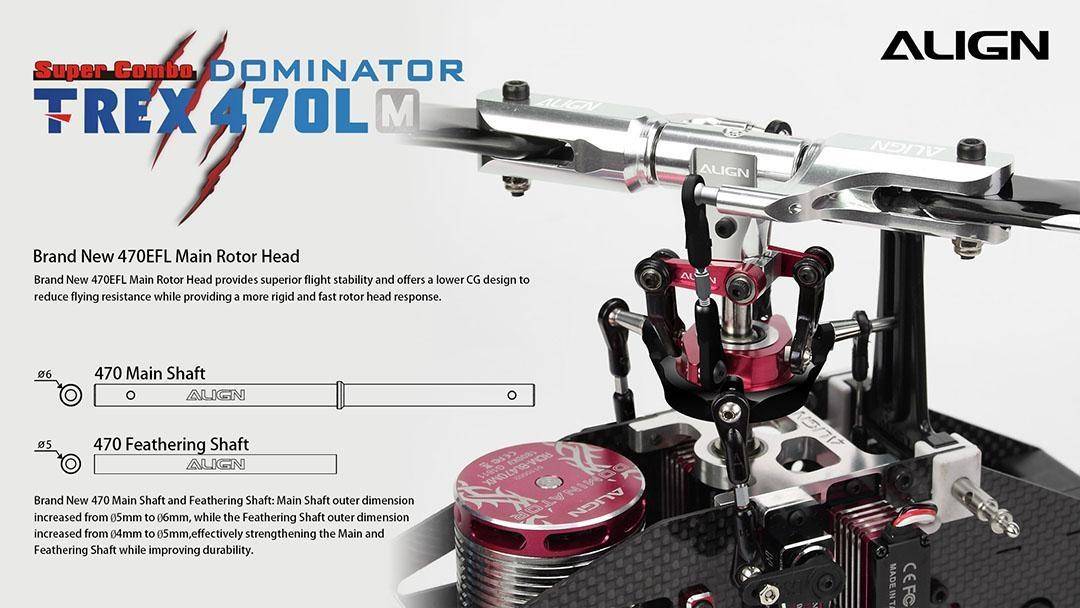

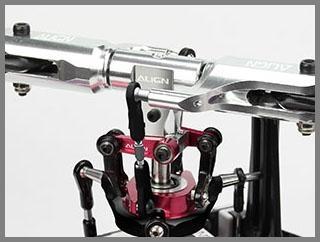

Brand New 470EFL Main Rotor Head provides superior flight stability and offers a lower CG design to reduce flying resistance while providing a more rigid and fast rotor head response. Brand New 470 Main Shaft and Feathering Shaft: Main Shaft outer dimension increased from 5mm to 6mm, while the Feathering Shaft outer dimension increased from 4mm to 5mm,effectively strengthening the Main and Feathering Shaft while improving durability.

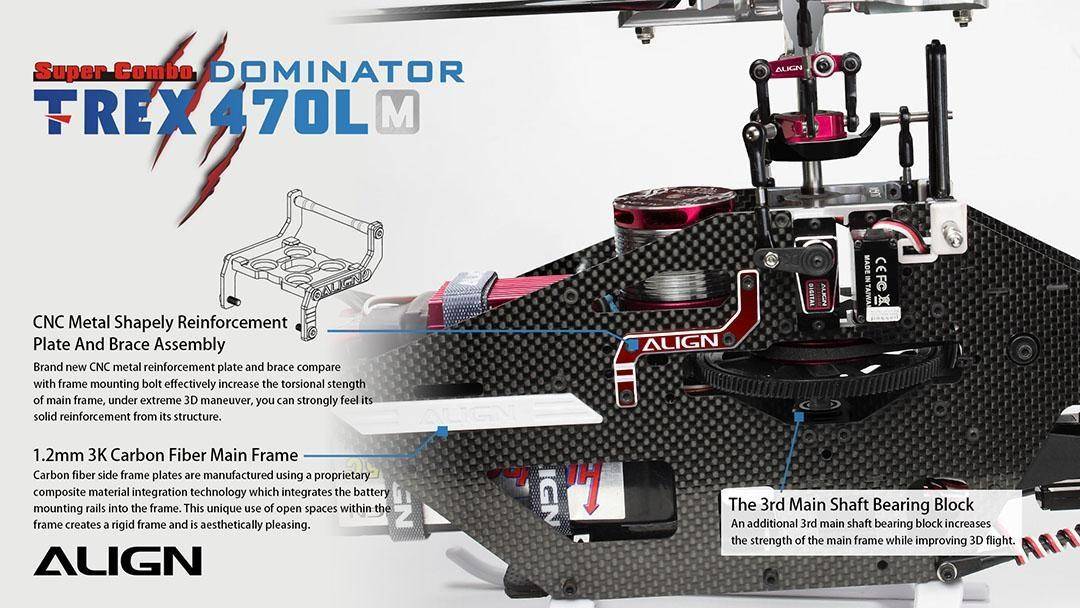

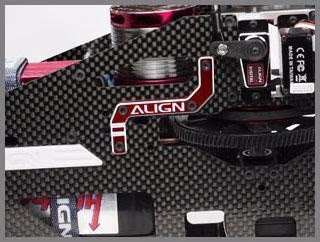

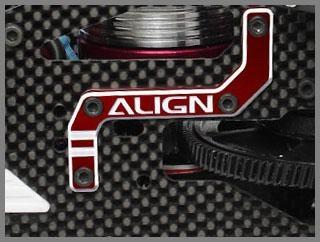

Brand new CNC metal reinforcement plate and brace compare with frame mounting bolt effectively increase the torsional stength of main frame, under extreme 3D maneuver, you can strongly feel its solid reinforcement from its structure.

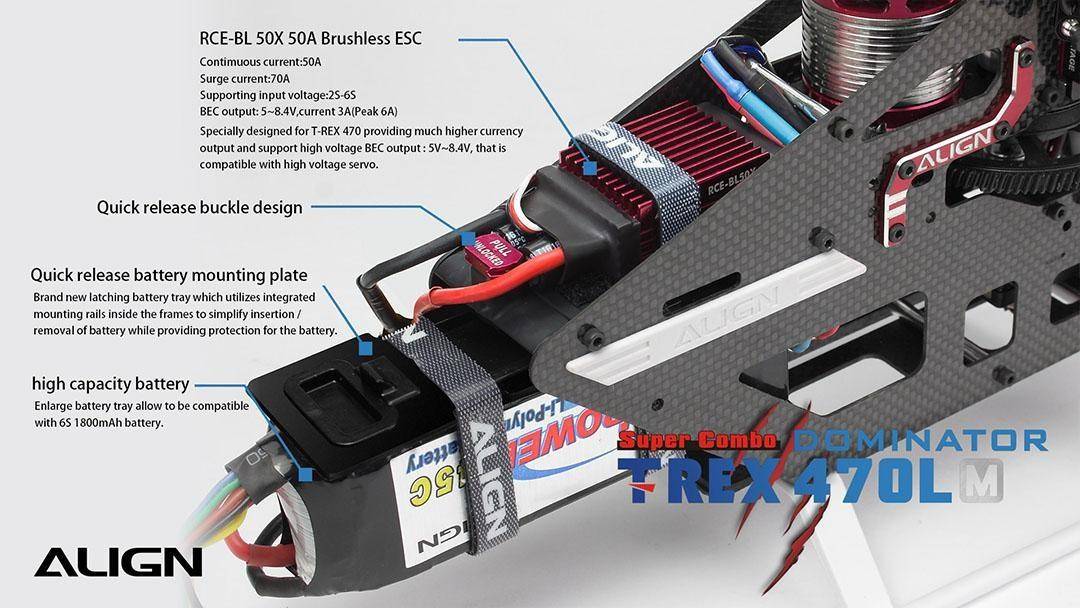

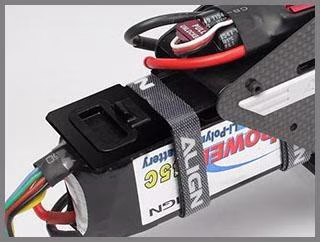

Brand new latching battery tray which utilizes integrated mounting rails inside the frames to simplify insertion / removal of battery while providing protection for the battery.

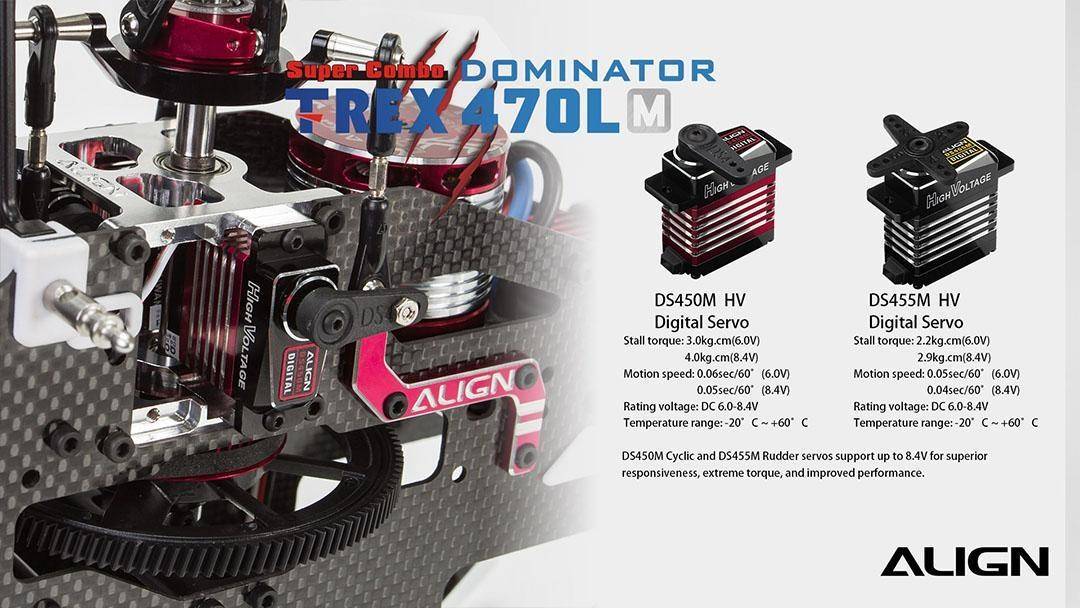

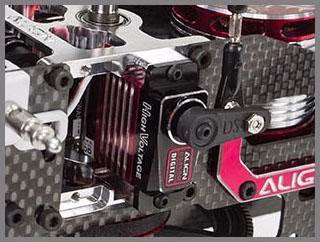

DS350M HV Cyclic and DS455M HV Rudder servos support up to 8.4V for superior responsiveness, extreme torque, and improved performance.

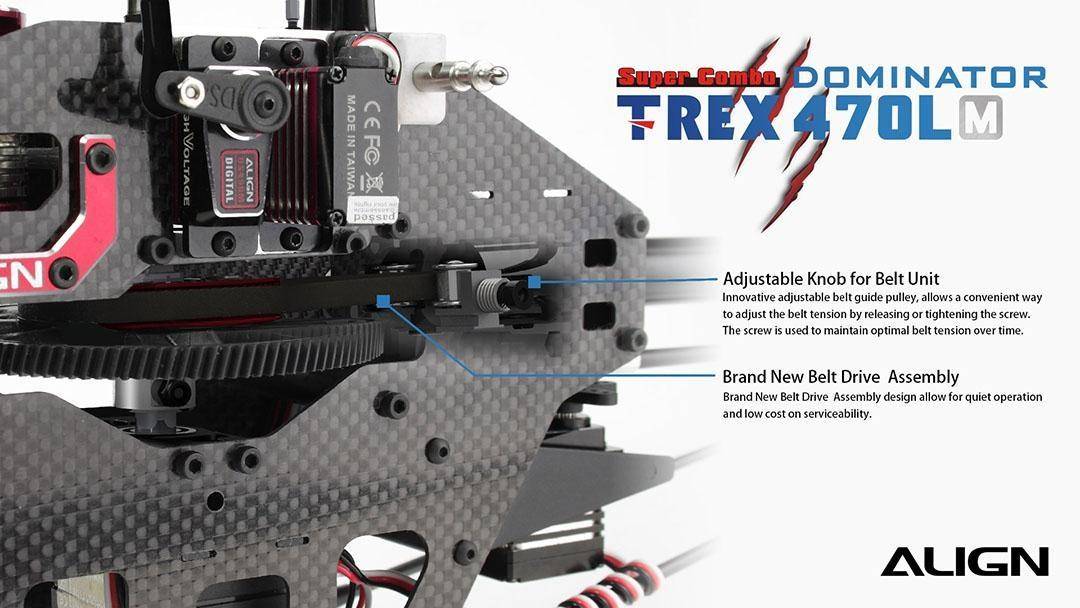

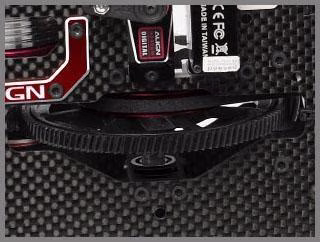

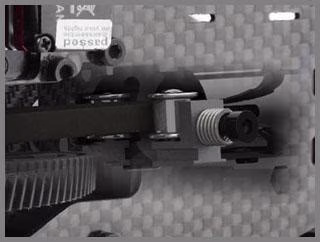

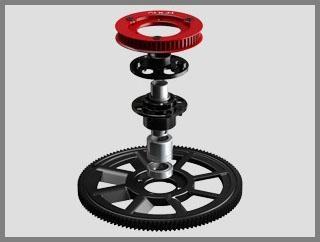

Innovative adjustable belt guide pulley, allows a convenient way to adjust the belt tension by releasing or tightening the screw. The screw is used to maintain optimal belt tension over time.

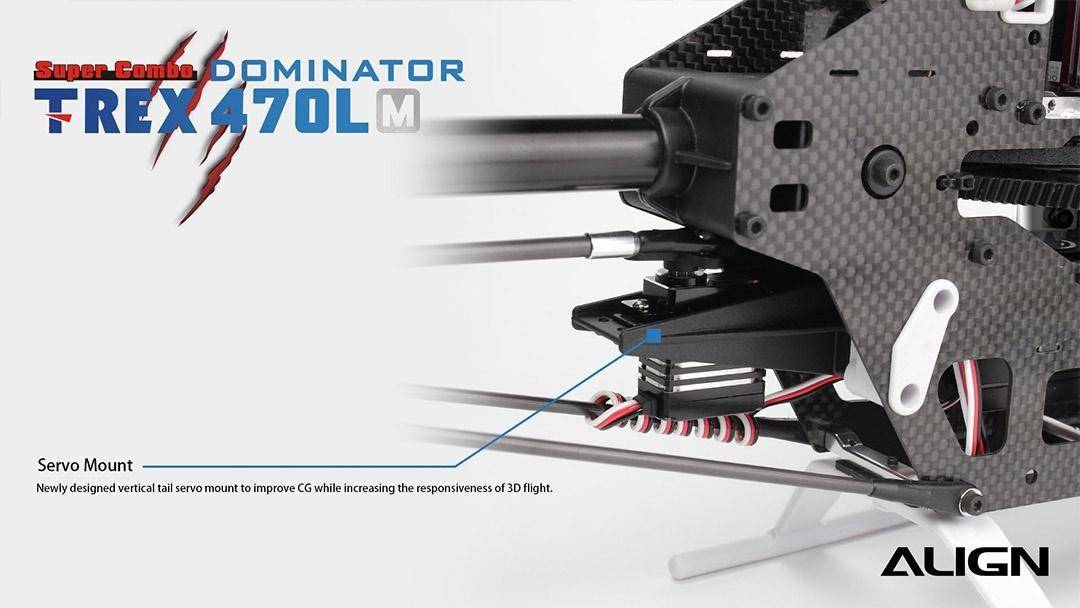

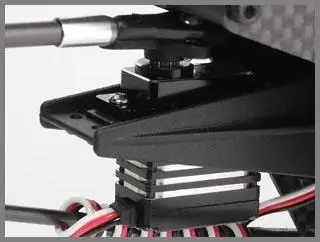

Newly designed vertical tail servo mount to improve CG while increasing the responsiveness of 3D flight.

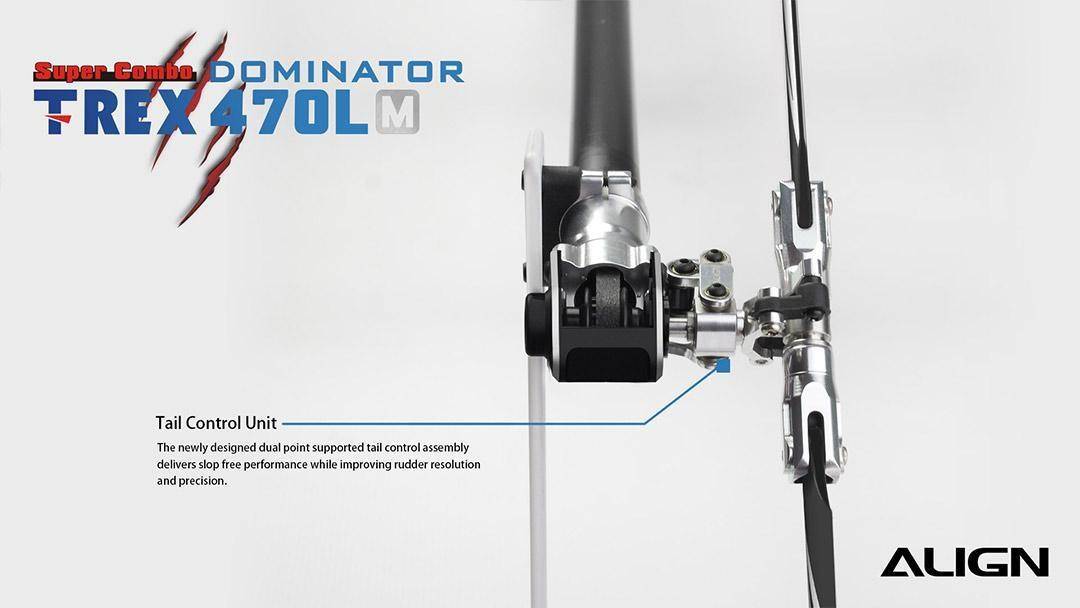

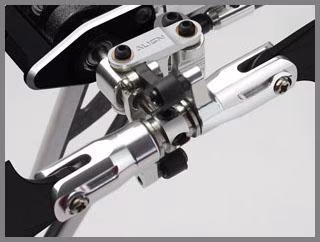

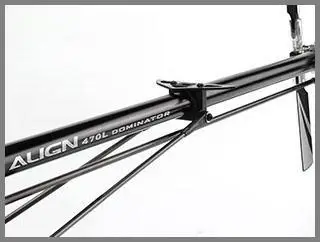

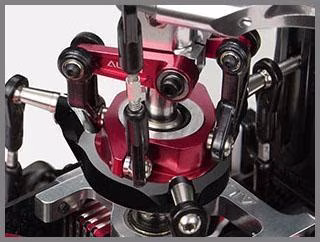

The newly designed dual point supported tail control assembly delivers slop free performance while improving rudder resolution and precision.

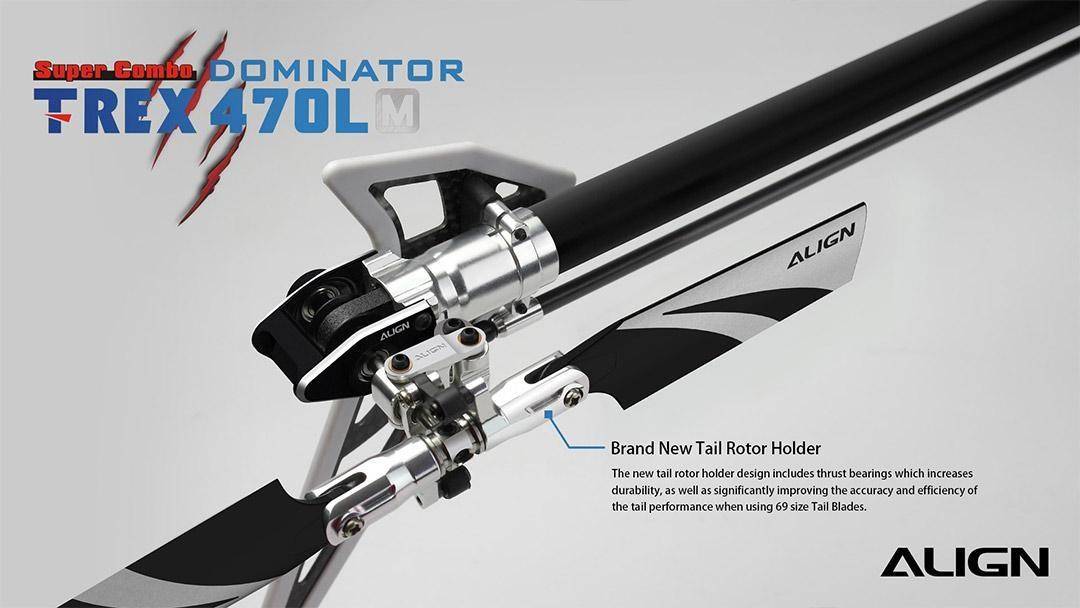

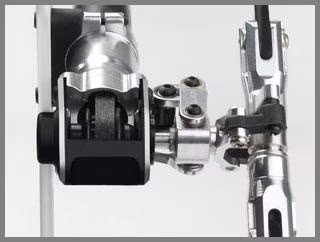

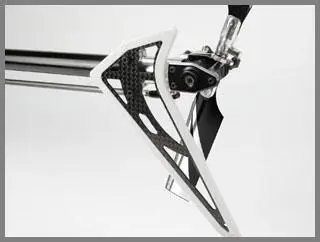

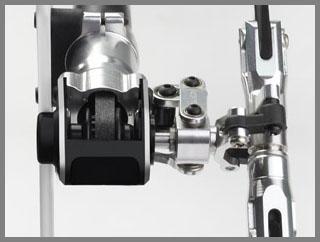

The new tail rotor holder design includes thrust bearings which increases durability, as well as significantly improving the accuracy and efficiency of the tail performance when using 69mm size Tail Blades.

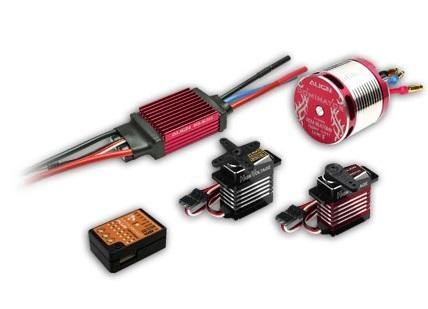

- T-REX 470L Dominator Kit x 1
- Microbeast Flybarless System x 1
- RCE-BL50X Brushless ESC x 1
- 470MX Brushless Motor (1800KV) x 1
- DS450M HV Brushless Servo x 3 Freq: 200Hz
- DS455M HV Brushless Servo x 1 Pulse: 1520µs / Freq: 333hz
- 380mm Carbon Fiber Blades x 1 Set
- 69mm Tail Rotor Blade x 1 Set

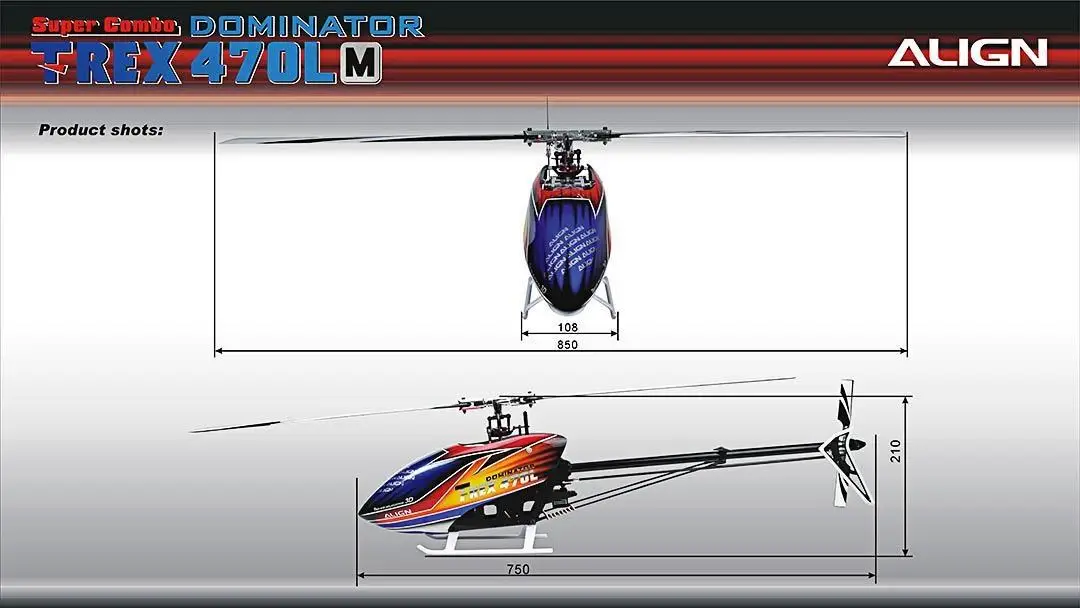

- Length: 755mm - 29.72In
- Height: 210mm - 8.27In
- Width: 108mm - 4.25In
- Main Blade Length: 380mm - 14.96In
- Main Rotor Diameter: 850mm - 33.46In
- Tail Rotor Diameter: 181mm - 7.13In
- Motor Pinion Gear: 11T

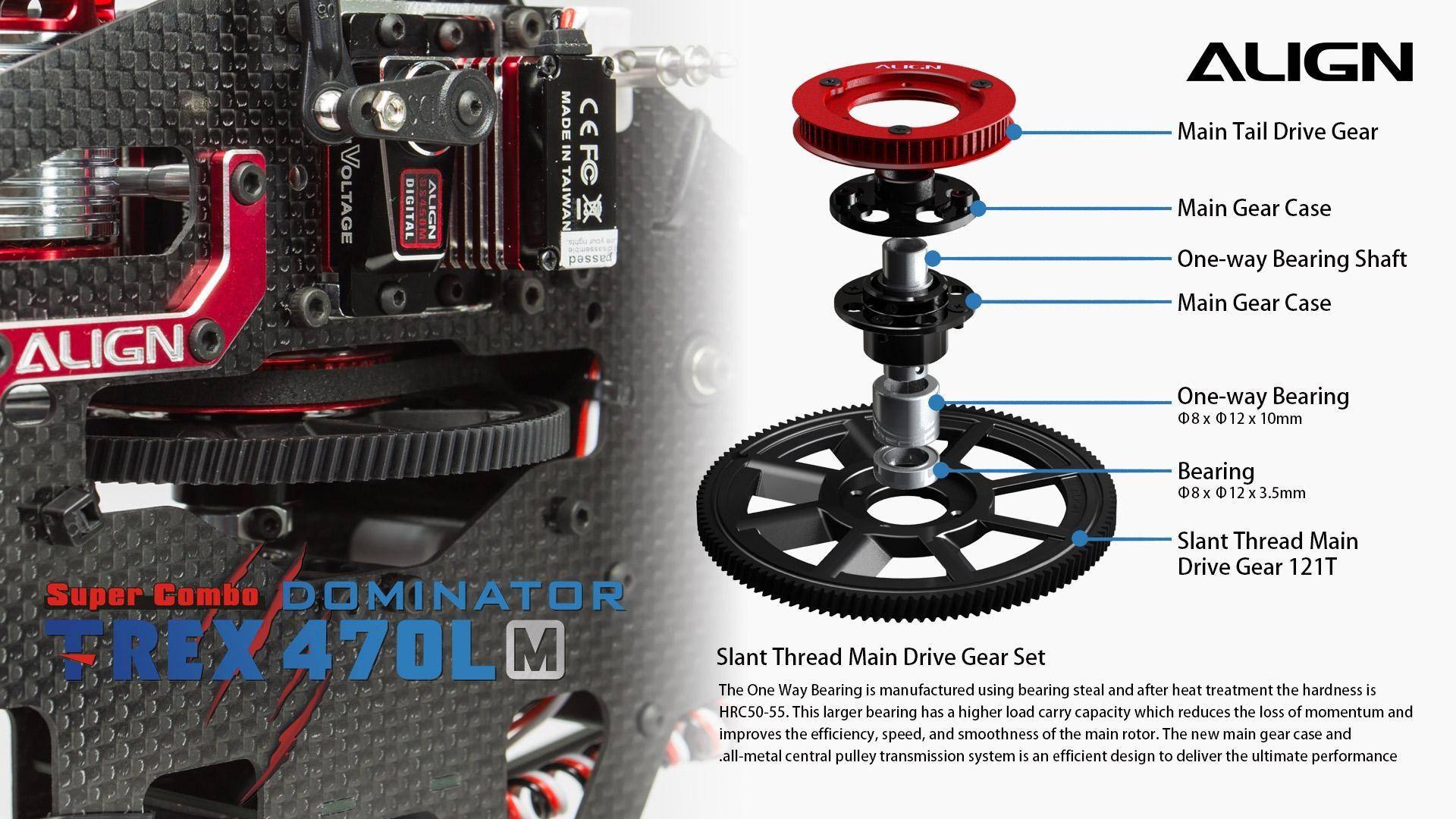

- Main Drive Gear: 121T
- Main Drive Pulley: 56T
- Tail Drive Gear: 15T
- Drive Gear Ratio: 11 : 1 : 3.73
- Weight (with Motor): 860g - 1.90Lbs
Additional Required Equipment
- Transmitter (6-channel or more, helicopter system)
- Satelite Receiver or 6-Channel Receiver
- 6S Li-Po 1400 ~ 1850mAh x 1 Recommend 1450mAh Part #: HBP14501
- Digital Pitch Gauge Part # HET80001
- Hex Screw Driver Set Part # HOT00002
