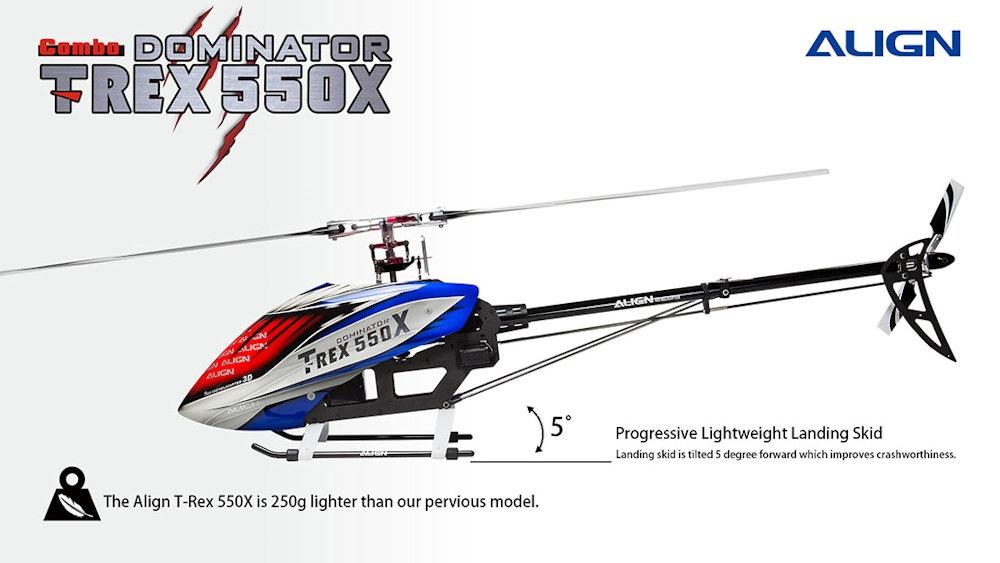

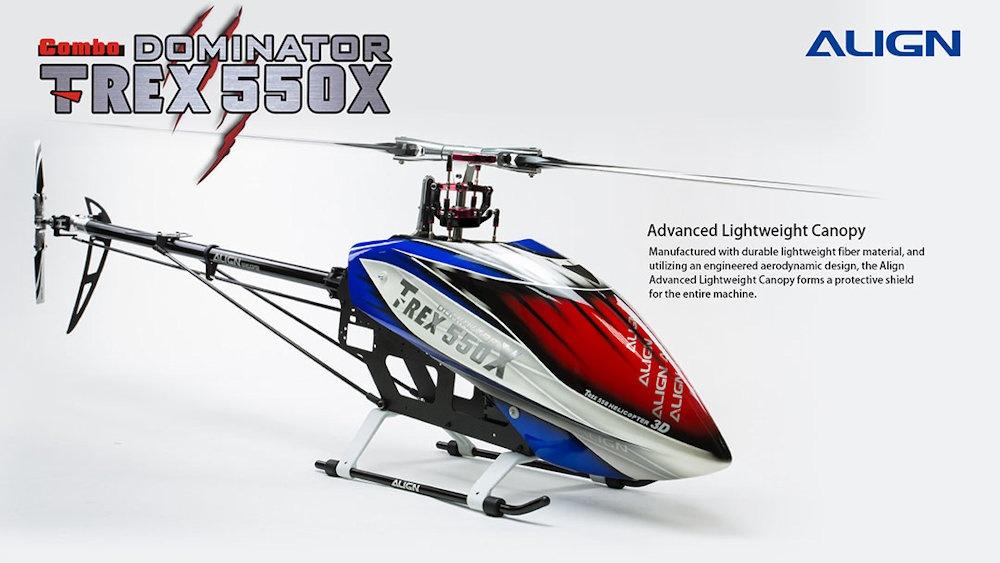

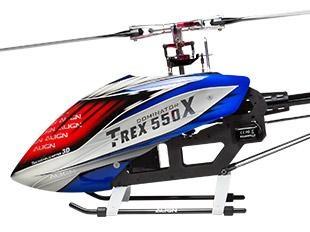

The NEW T-REX 550X is definitely a significant leap forward in performance, enhanced by increased power, the integration of numerous innovative design changes, and lightweight improvements. The T-REX 550X performance is outstanding!

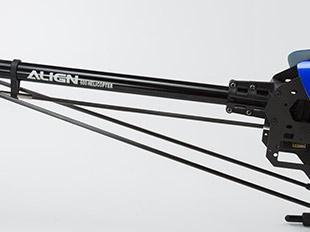

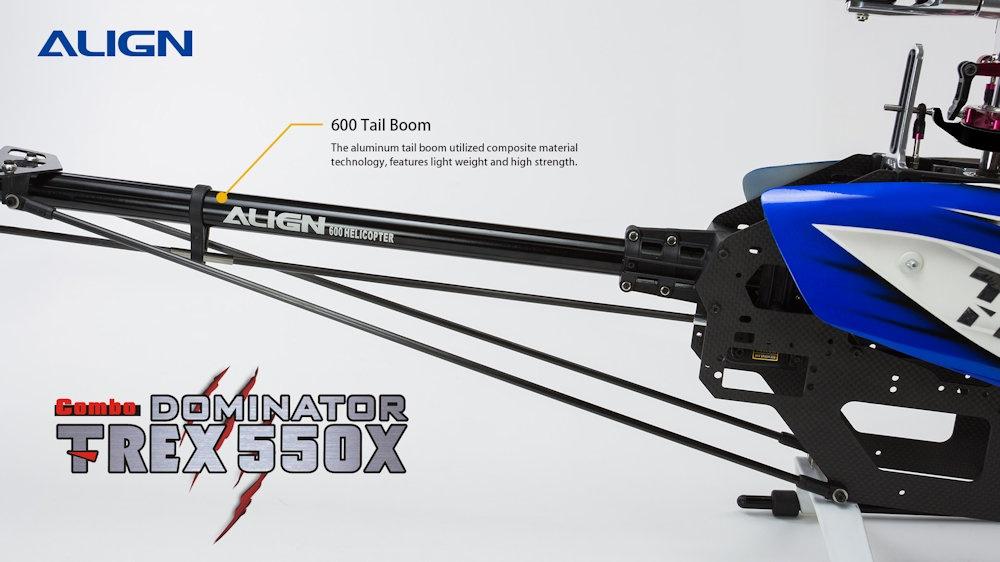

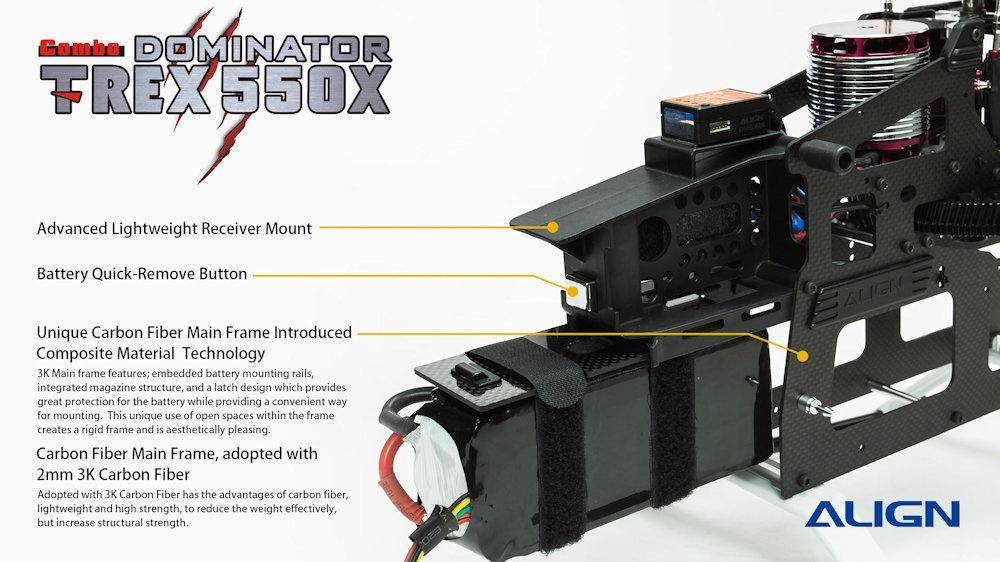

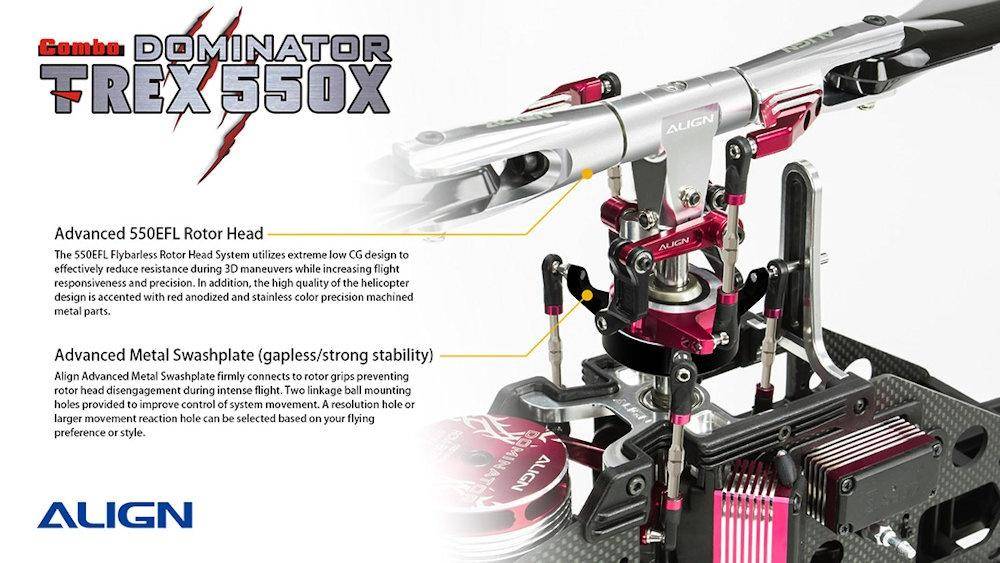

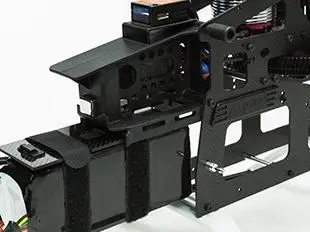

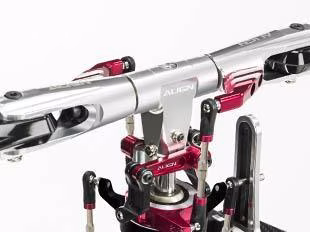

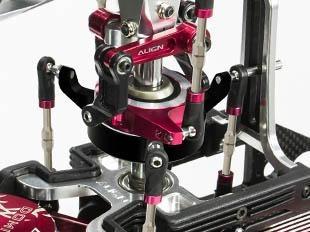

The brand new FL Flybarless Rotor Head System utilizes an extremely low CG design, reducing resistance during 3D maneuvers while increasing flight responsiveness and precision. A progressive design adds a gloss silver and red anodizing appearance which continue our quality development based on our 700 class helicopter. The T-REX 550X main frame utilizes composite material integration technology on carbon side frame plates, including the addition of battery mounting side rails, and a top motor mount design. In addition, the T-REX 550X's lightweight design is 200~250g (Combo250g/Super Combo 200g) lighter than our pervious model, this effectively increase the power and improves flight time.

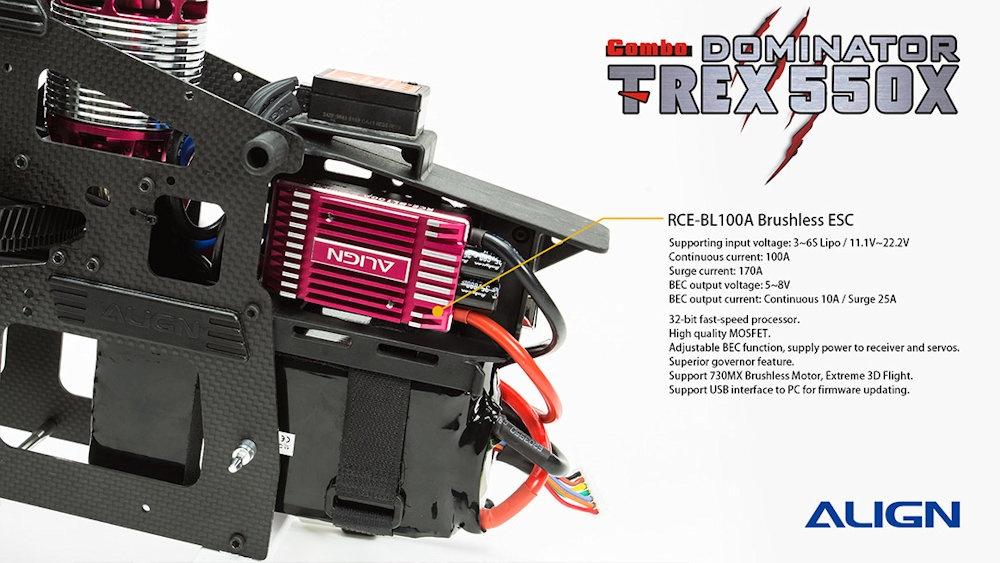

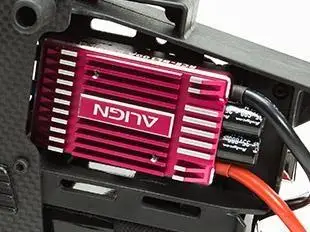

The T-REX 550X utilizes the powerful 730MX (960KV) motor and our RCE-BL100A Brushless ESC which both are highly efficient providing superior power, improving the performance of the 6S power system. The NEW DS820M/DS825M high voltage brushless servos are extremely efficient and out perform other servos in this class. To protect these servos the new high-end CNC aluminum case function as a heat sink allowing the servos to operate at a lower temperature.
With improved performance and increased power, as well as included top of the line electronic equipment. The new T-REX 550 X will arouse your enthusiasm and devotion to the T-REX Family.

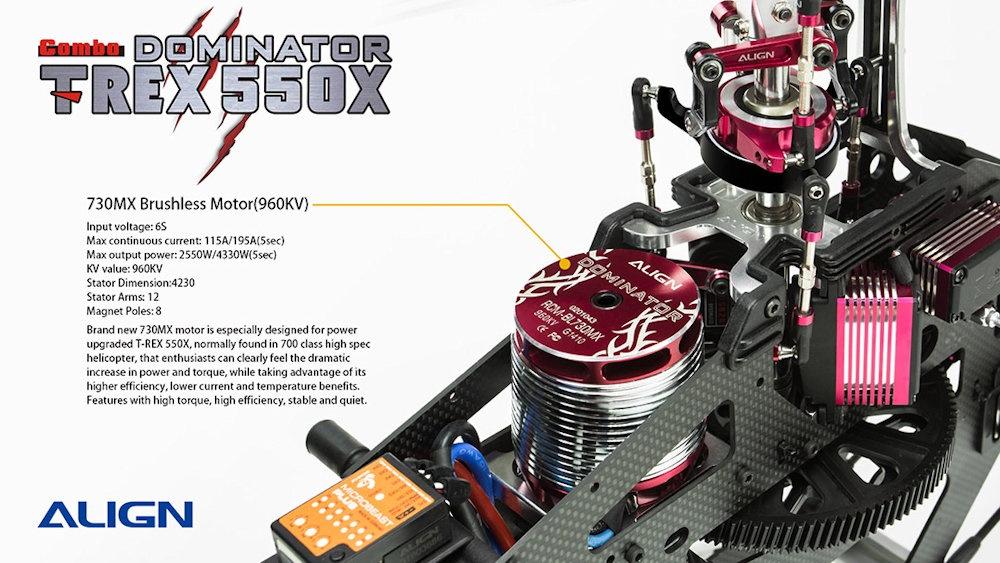

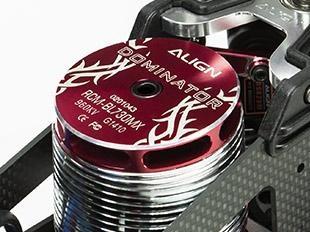

Brand new 730MX motor is especially designed for power upgraded T-REX 550X, normally found in 700 class high spec helicopter, that enthusiasts can clearly feel the dramatic increase in power and torque, while taking advantage of its higher efficiency, lower current and temperature benefits. Features with high torque, high efficiency, stable and quiet.

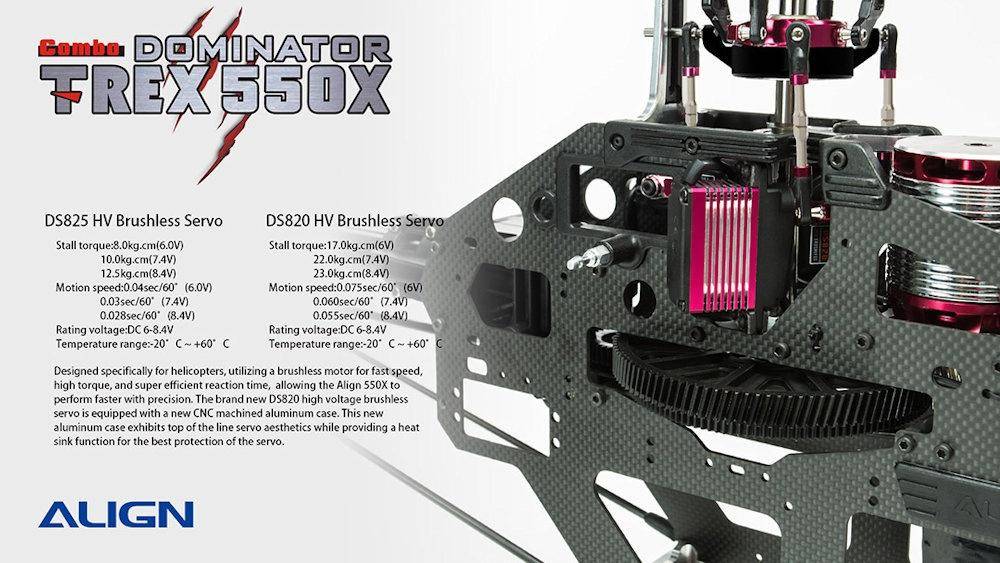

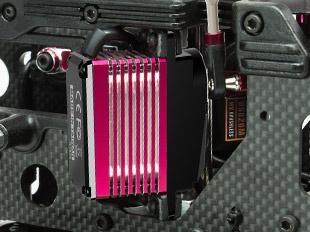

Designed specifically for helicopters, utilizing a brushless motor for fast speed, high torque, and super efficient reaction time, allowing the Align 700X to perform faster with precision. The brand new DS820 high voltage brushless servo is equipped with a new CNC machined aluminum case. This new aluminum case exhibits top of the line servo aesthetics while providing a heat sink function for the best protection of the servo.

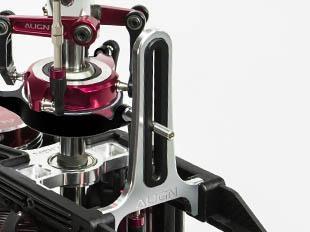

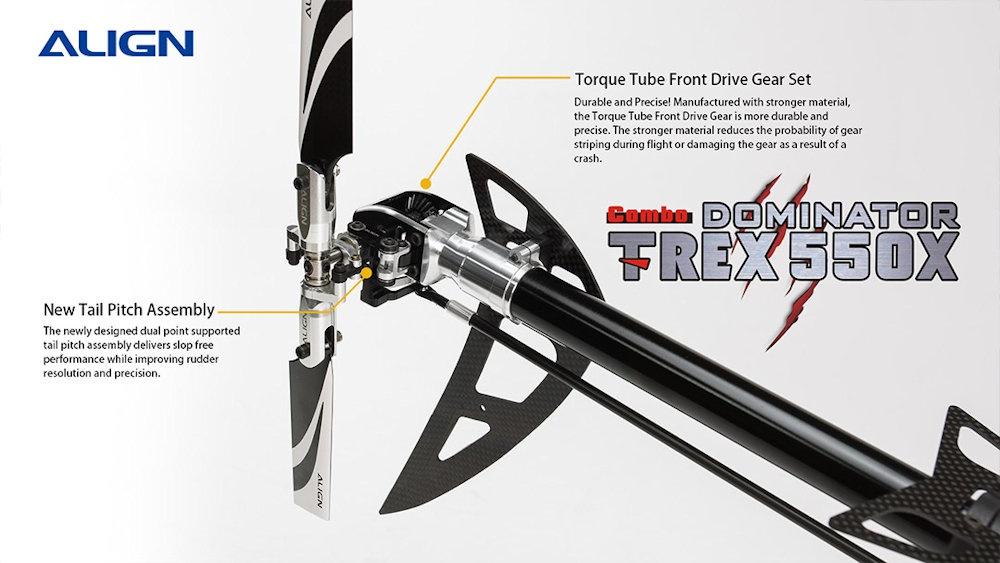

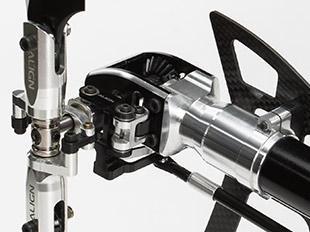

The newly designed dual point supported tail pitch assembly delivers slop free performance while improving rudder resolution and precision.

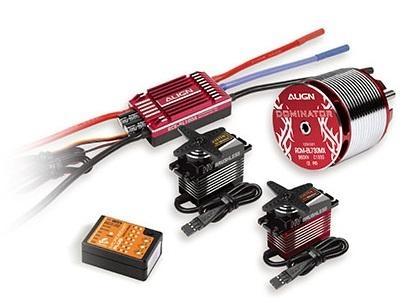

Standard Equipment
- T-REX 550X Dominator Kit x 1

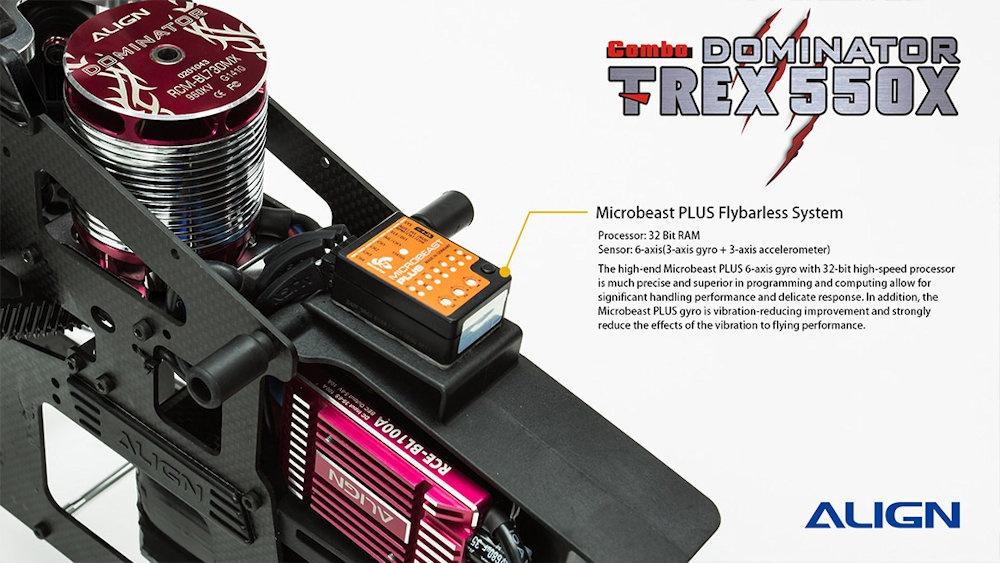

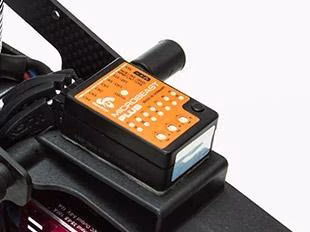

- Microbeast PLUS Flybarless System x 1
- RCE-BL100A Brushless ESC x 1
- 730MX Brushless Motor (960KV) x 1
- BL820 HV Brushless Servo x 3 Freq: 200Hz
- BL825 HV Brushless Servo x 1 Pulse: 1520µs / Freq: 333hz
- 550 Carbon Fiber Blades x 1 Set
- 105mm 3K Carbon Fiber Tail Blades x 1 Set
Specification

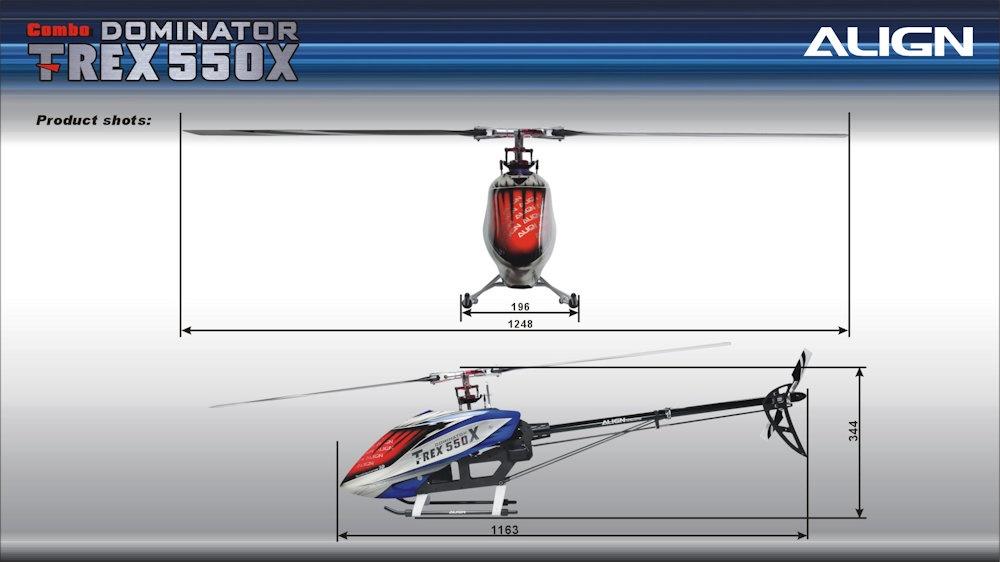

- Length: 1163mm - 45.79In
- Height: 344mm - 13.54In
- Width: 196mm - 7.72In
- Main Blade Length: 550mm - 21.65In
- Main Rotor Diameter: 1248mm - 49.13In
- Tail Rotor Diameter: 254mm - 10.00In
- Motor Drive Gear: 16T
- Main Drive Gear: 112T
- Autorotation Tail Drive Gear: 131T
- Tail Drive Gear: 34T
- Drive Gear Ratio: 7 : 1 : 3.85
- Weight (with Motor): 2590g - 5.71Lbs
