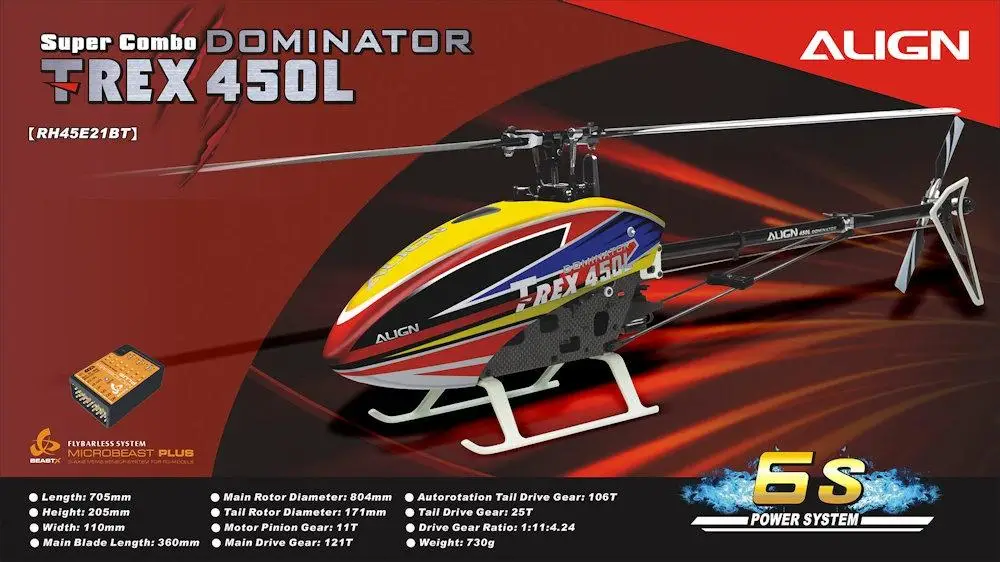

ALIGN T-REX 450L Super Combo RH45E21BW

The internationally popular T-Rex 450 has long been a trend setting helicopter, every enthusiasts probably has owned at least one. It is the ideal model for beginners as well as experts practicing advanced maneuvers. The ALIGN T-REX 450L Super Combo is equipped with Microbeast flybarless system and brand new DS450 digital cyclic servos and a DS455 digital tail servo, all the up-to-date devices are included creating a whole new and different flying experience.

The ALIGN 450L reverses the common impression people have on TRex 450, with material integration technology utilized on side frame design, and has features previously found only on larger models, such as battery mounting rails, top mounted motor, 700E DFC (Direct Flight Control) type main bearing block with integrated servo mounts, forming striking resemblances to larger contest grade models. The newly added frame reinforcement plates not only improves helicopter's overall rigidity and anti-torsion characteristics while the beautiful red anodizing also creates highly pleasing aesthetics, further exhibits the ALIGN TRex 450L's attractiveness and exclusiveness.

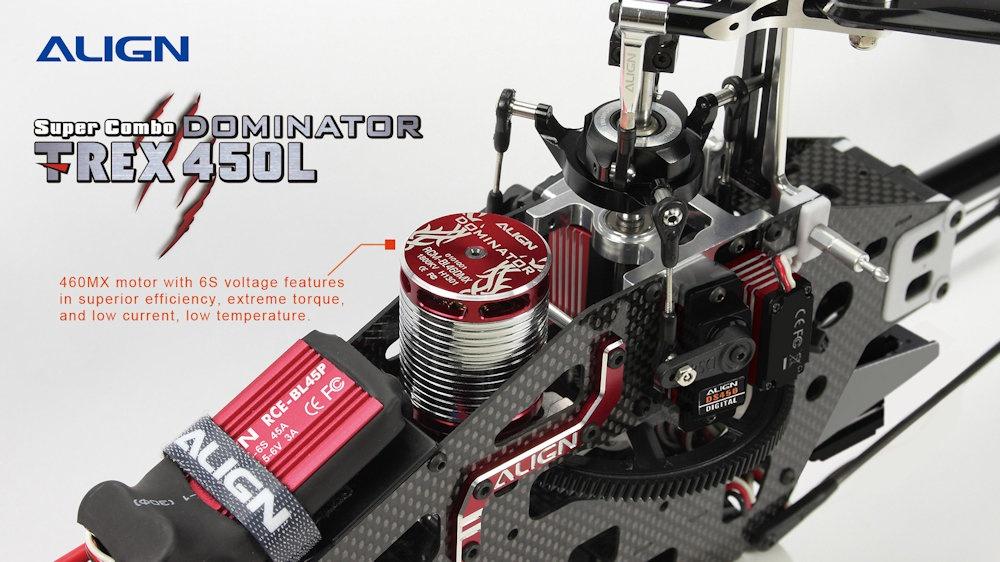

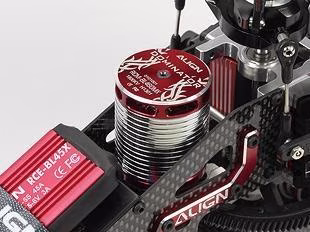

Equipped with the DFC (Direct Flight Control) flybarless head assembly, paired with 360mm main rotor blades that are both stable and agile, with improved flight stability! Based on 6s voltage, the 460MX (1800KV) motor, and paired with RCE-BL45X brushless speed controller, the motor has superior efficiency, high power output, extreme torque, and low current, low temperature. Brand new DS450 and DS455 digital servos controls the swashplate and rudder, support V8.4 high voltage input with feature such as improved torque and speed, effectively enhance flight performance.

With cutting edge design concepts and top grade electronics, T-Rex 450L Dominator surpasses traditional flight performances with higher stability, extreme power, superior control feel, yet maintains the convenience of smaller size. The ALIGN T-REX 450L Super Combo RH45E21 is a model not to be missed!

images/uniterevolution/450l/RH45E21BW_F_00.jpg
images/uniterevolution/450l/RH45E21BW_F_01.jpg
images/uniterevolution/450l/RH45E21BW_F_02.jpg
images/uniterevolution/450l/RH45E21BW_F_03.jpg
images/uniterevolution/450l/RH45E21BW_F_04.jpg
images/uniterevolution/450l/RH45E21BW_F_05.jpg
images/uniterevolution/450l/RH45E21BW_F_06.jpg
images/uniterevolution/450l/RH45E21BW_F_07.jpg
images/uniterevolution/450l/RH45E21BW_F_08.jpg
images/uniterevolution/450l/RH45E21BW_F_09.jpg
images/uniterevolution/450l/RH45E21BW_F_10.jpg
previous arrow
next arrow
images/uniterevolution/450l/RH45E21BW_F_00.jpg
images/uniterevolution/450l/RH45E21BW_F_01.jpg
images/uniterevolution/450l/RH45E21BW_F_02.jpg
images/uniterevolution/450l/RH45E21BW_F_03.jpg
images/uniterevolution/450l/RH45E21BW_F_04.jpg
images/uniterevolution/450l/RH45E21BW_F_05.jpg
images/uniterevolution/450l/RH45E21BW_F_06.jpg
images/uniterevolution/450l/RH45E21BW_F_07.jpg
images/uniterevolution/450l/RH45E21BW_F_08.jpg
images/uniterevolution/450l/RH45E21BW_F_09.jpg
images/uniterevolution/450l/RH45E21BW_F_10.jpg
previous arrow
next arrow

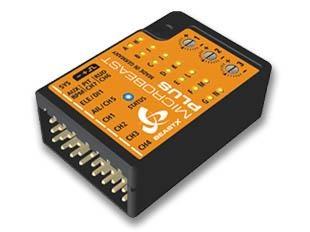

The high-end Microbeast 6-axis gyro with 32-bit high-speed processor is much precise and superior in programming and computing allow for significant handling performance and delicate response. In addition, the Microbeast PLUS gyro is vibration-reducing improvement and strongly reduce the effects of the vibration to flying performance.

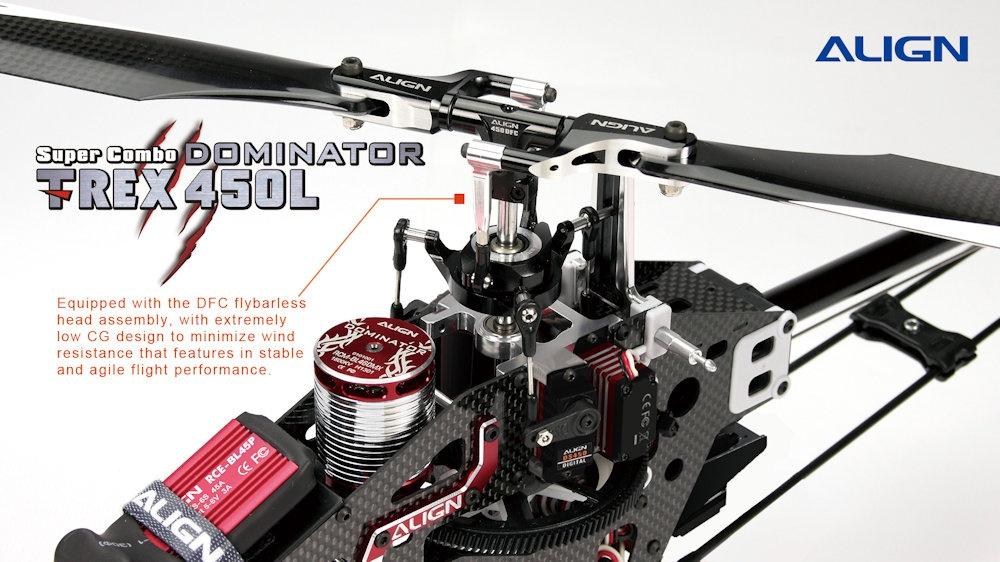

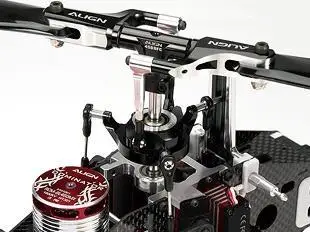

Equipped with the DFC flybarless head assembly, with extremely low CG design to minimize wind resistance while providing more direct control feel. In addition, the brand new main rotor head block and new spindle design has been incorporated as standard feature. Paired with newly designed 3D specific 360 3G main rotor blades that are both stable and agile, resulting in improved flight performance.

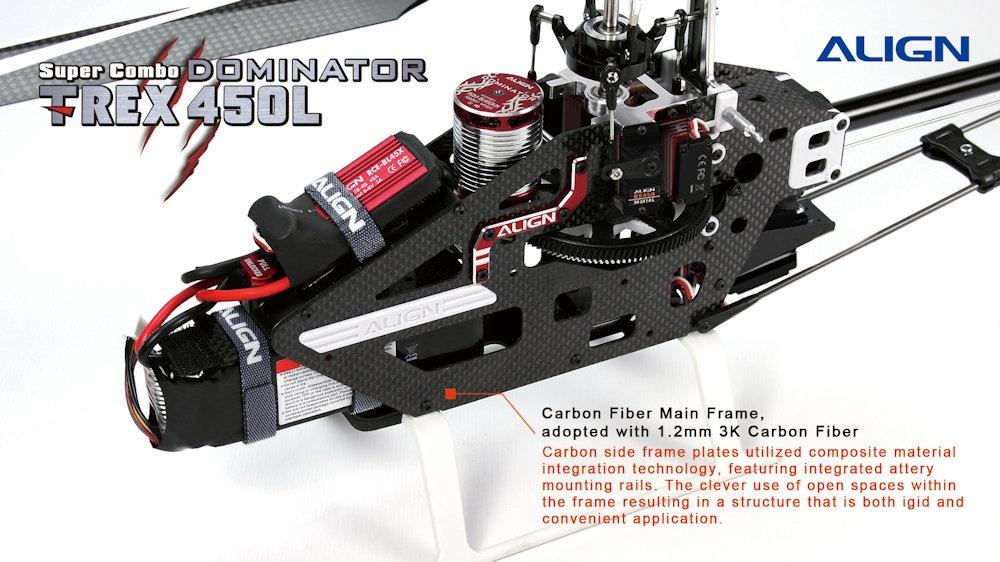

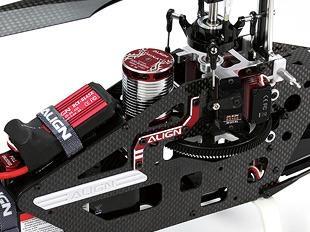

Carbon side frame plates utilized composite material integration technology, featuring integrated battery mounting rails. The clever use of open spaces within the frame resulting in a structure that is both rigid and aesthetically pleasing. In addition, the T-Rex 450L cleverly expands on the core concepts of T-Rex 450Pro designs, to carry on the heritage of its mature design of excellence.

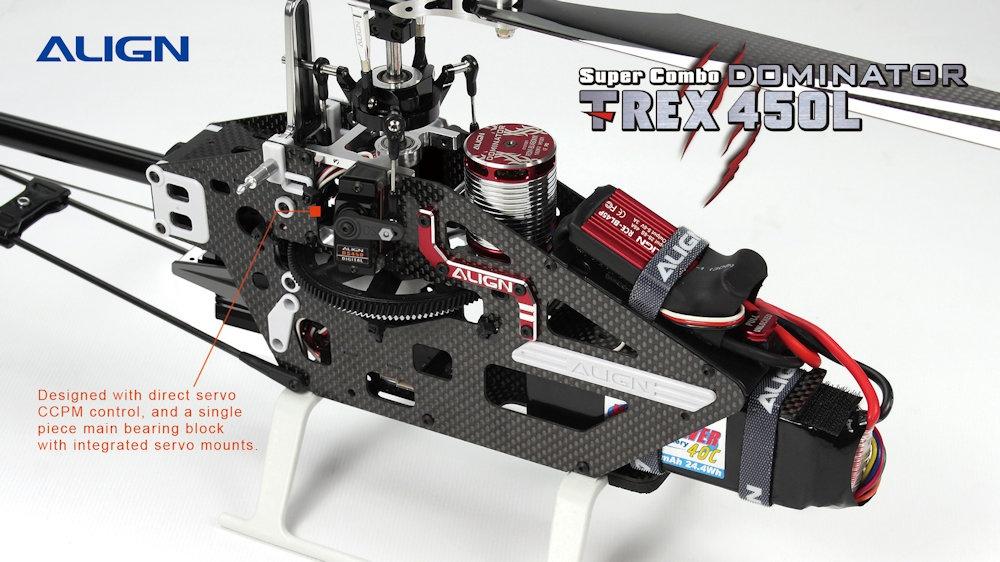

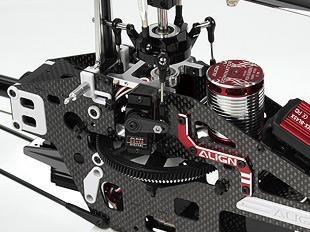

Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts similar to that of T-Rex 700E DFC, for simplified servo installation and clean aesthetic. Brand new DS450 servos feature improved torque and speed, with dual bearings design to minimize deadband and provide better longevity.

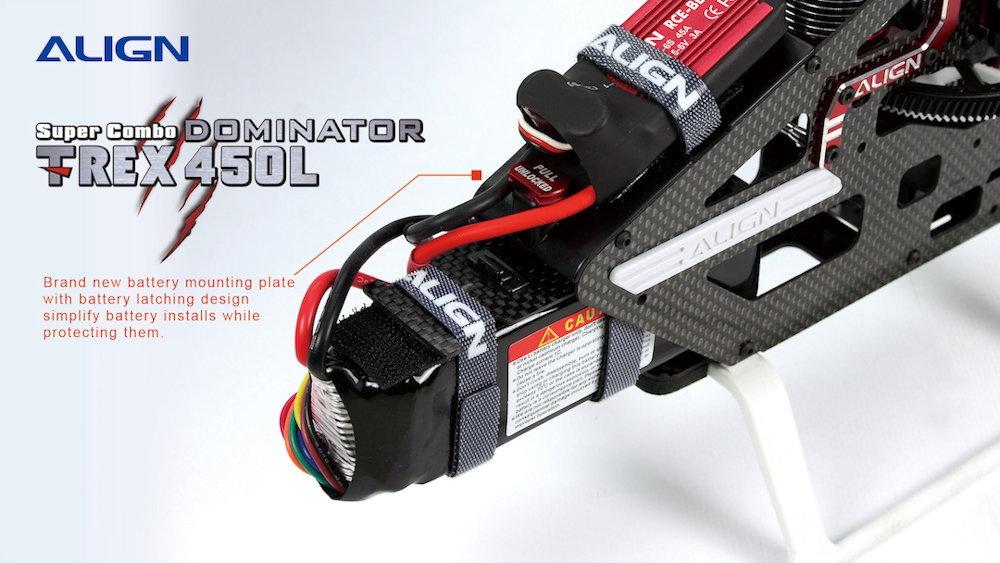

Brand new battery mounting plate with battery latching design, along with integrated mounting rails in side frames to simplify battery installs while protecting them.

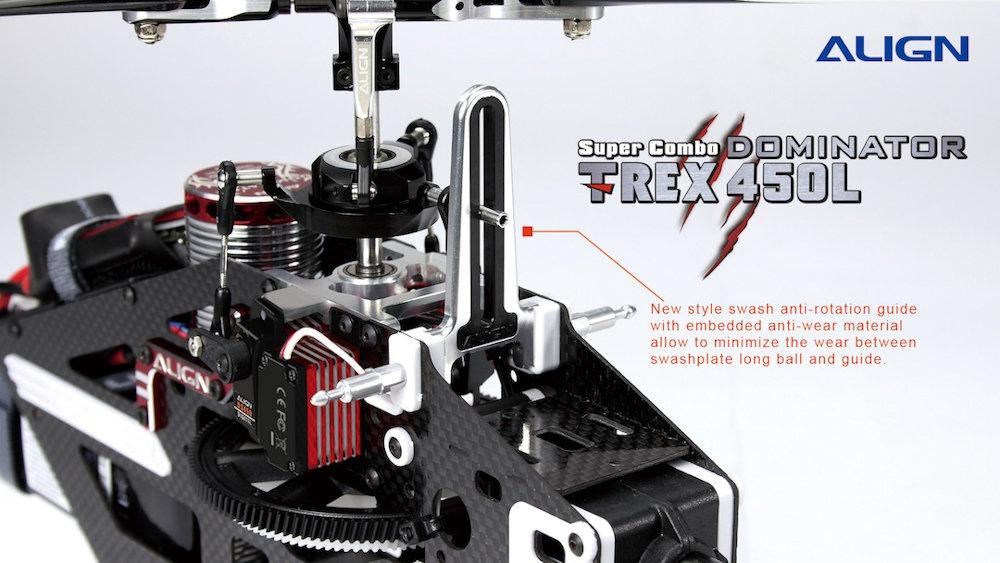

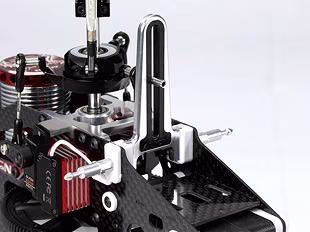

New style swash anti-rotation guide with embedded anti-wear material, effectively minimize the wear between swashplate long ball and guide.

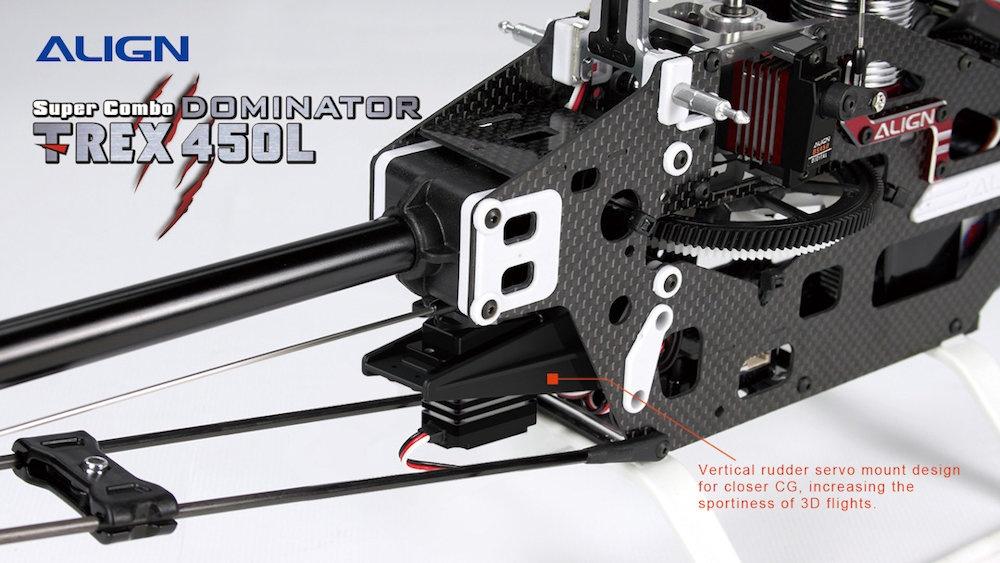

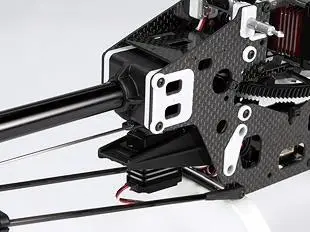

Vertical rudder servo mount design for closer CG, increasing the sportiness of 3D flights.

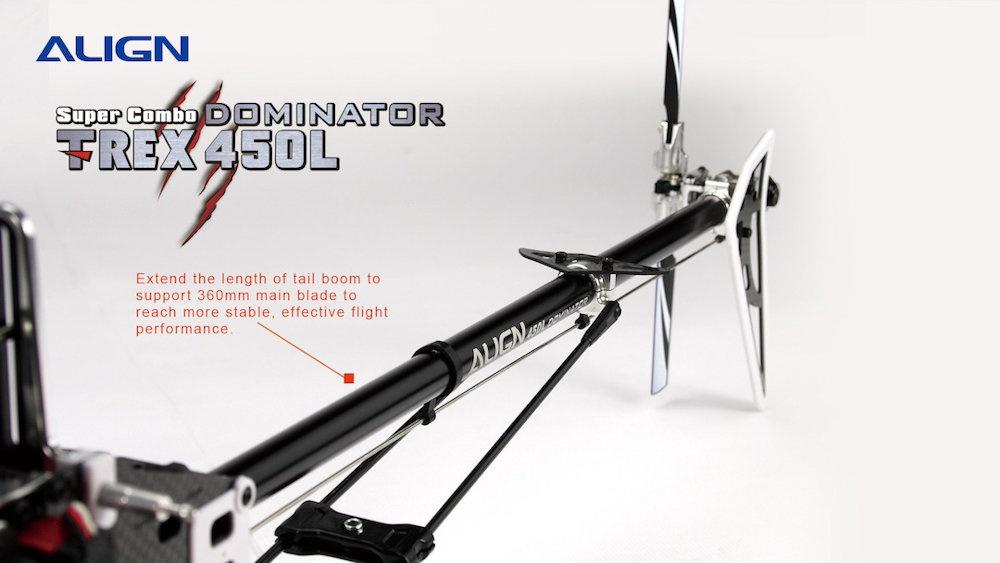

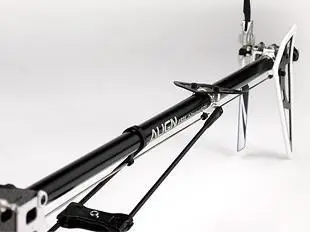

Added tailboom support bridge design to increase the rigidity of the overall tailboom/support assembly.

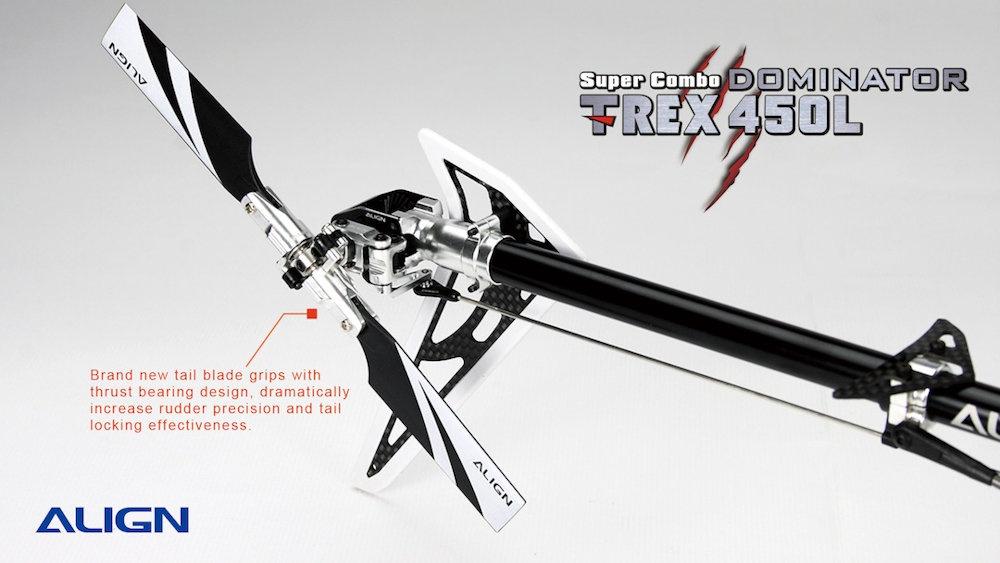

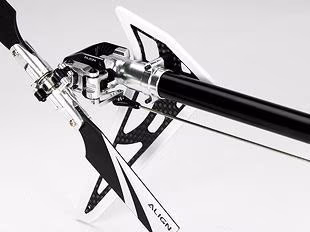

Brand new tail blade grips with thrust bearing design, dramatically increase rudder precision and tail locking effectiveness, while increasing the longevity of bearings. The brand new extended tail rotor blades to match the 360mm main rotor blades also contributes to the tail locking performance. The new style paint scheme provides better visibility in midair.

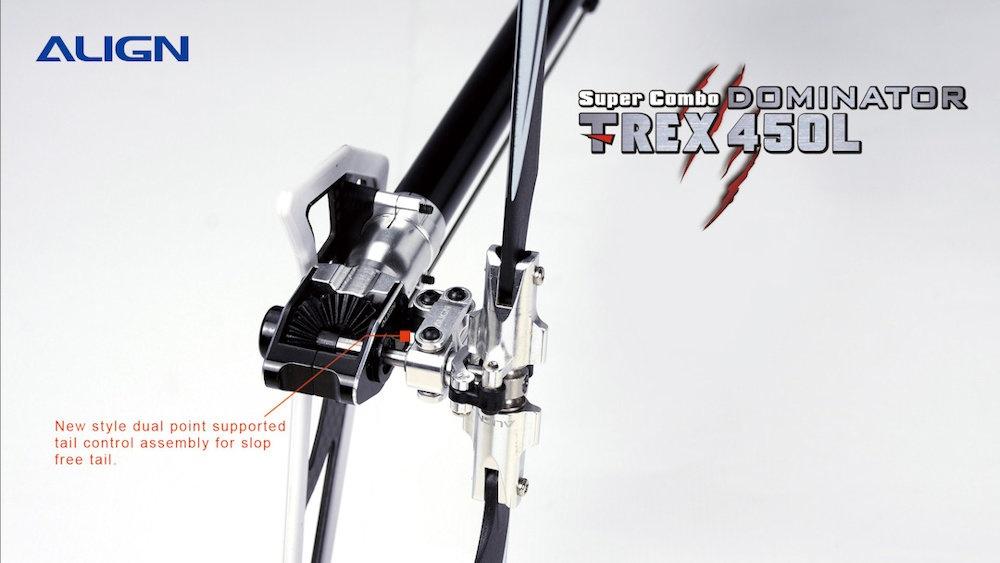

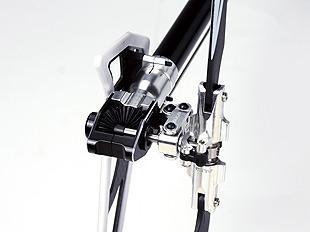

New style dual point supported tail control assembly for slop free tail, improving on rudder resolution and control precision.

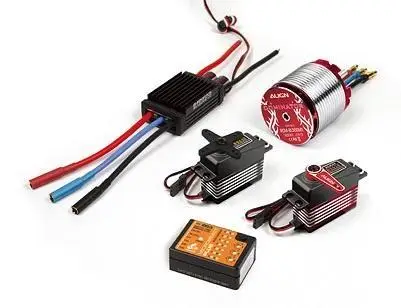

Standard Equipment
  • T-REX 450L Dominator Kit
  • Microbeast Flybarless System
  • RCE-BL45A Brushless ESC
  • 460MX Brushless Motor (1800KV)
  • DS450 HV Brushless Servo x 3 Freq: 200Hz
  • DS455 HV Brushless Servo Pulse: 1520µs / Freq: 333hz
  • 360mm Carbon Fiber Blades x 1 Set
  • 65mm Tail Rotor Blade x 1 Set

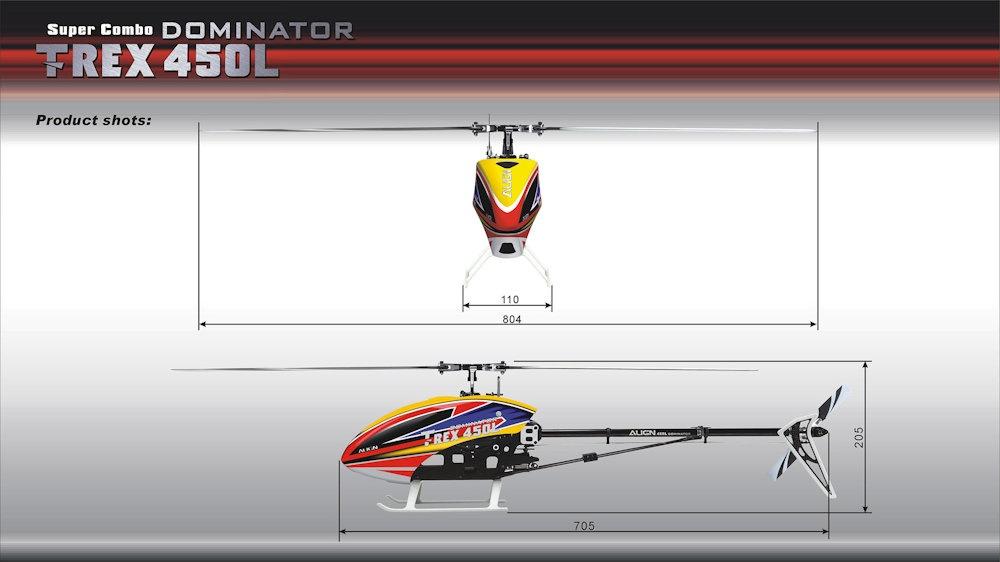

Specification
  • Length: 705mm - 27.76In
  • Height: 205mm - 8.07In
  • Width: 110mm - 4.33In
  • Main Blade Length: 360mm - 14.17In
  • Main Rotor Diameter: 804mm - 31.65In
  • Tail Rotor Diameter: 171mm - 6.73In
  • Motor Drive Gear: 11T
  • Main Drive Gear: 171T
  • Autorotation Tail Drive Gear: 106T
  • Tail Drive Gear: 26T
  • Drive Gear Ratio: 11 : 1 : 4.07
  • Weight (with Motor): 730g - 1.61Lbs
Additional Required Equipment
  • Transmitter (6-channel or more, helicopter system)
  • Satilite Receiver or 6-Channel Receiver
  • 6S Li-Po 1100 ~ 1450mAh x 1 Recommend 1450mAh Part # HBP14501
  • Digital Pitch Gauge Part # HET80001
  • Hex Screw Driver Set Part # HOT00002
