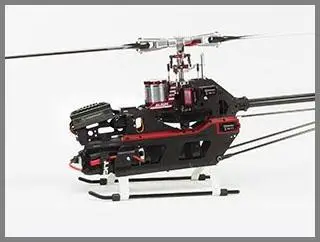

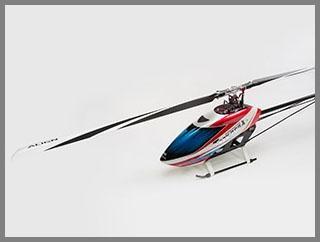

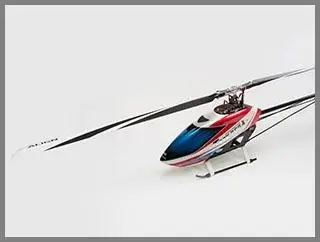

ALIGN T-REX 760X Top Combo RH76E01
The brand new ALIGN T-REX 760X Top Combo RH76E01 features with new body length and new 760mm main blade for F3C/3D flight design providing the outstanding performance than other series will give you the different flying feeling.

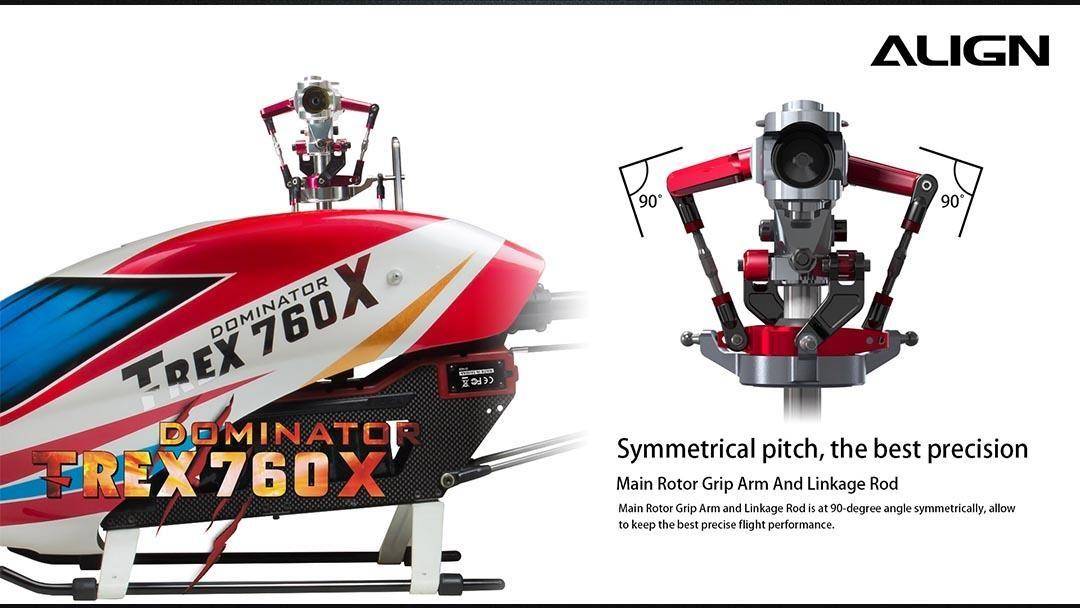

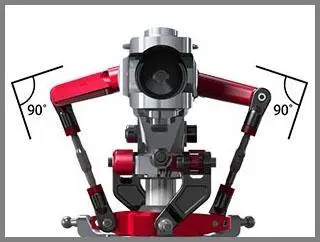

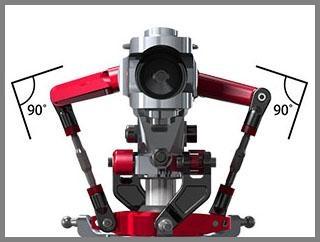

The new 700FL rotor head system can use new F3C rotor holder arm and 3D rotor holder arm. F3C rotor holder arm effectively doubles the flight stability with excellent and precise control accuracy not only has more advantages in the static flight also provide the perfect controlling feel in 3D flight. 3D rotor holder arm suitable for extreme 3D flight provides the more direct and faster control response. Main rotor grip arm and linkage rod is at 90-degree angle symmetrically, allow to keep the best precise flight performance. Also the new 760 main blade features with better flight stability and superior lift making the T-REX 760X in the control feel and stability better than other models. Utilized the three tail blade set as standard accessory feature with excellent controlling feel and superior tail authority allowing you to enjoy the flying no matter F3C or 3D flight.

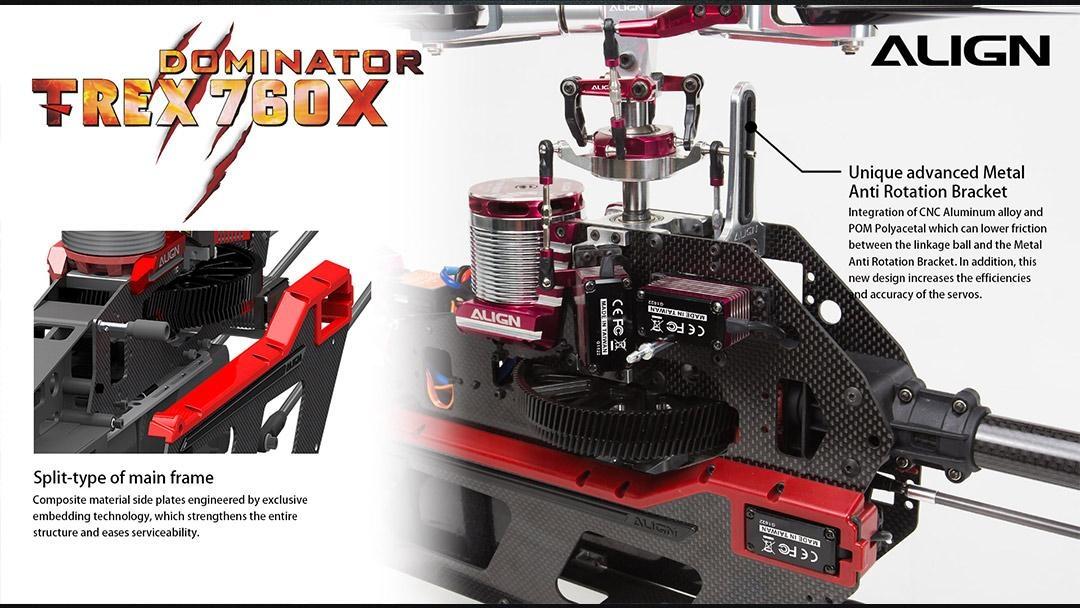

The ALIGN TREX 760X Top Combo introduces an advanced engineered narrow body design efficiently decreases gear abrasion, machine deformation, increases power, and extends flying durability. The unique Split-Type Main Frame design, made of composite material side plates, is engineered using our proprietary embedding technology, which strengthens the entire structure and provides better accessibility for servicing the ALIGN 760X. This extraordinary design includes a progressive lightweight landing skid making the T-REX 760X the leader in this class. The lightweight structure design which significantly reduce the body weight can effectively increase your flight time.
The TREX 760X is equipped with the new 850MX motor which is highly efficient with superior power, excellent torque, low current draw, and is the most advanced motor approved by World RC Champions. The new designed motor cooling mount plate can reduce the motor operating temperature up to 20°C (68°F). The helicopter’s high quality design is accented with precision machined red and silver metal parts. The brand new Platinum HV 160A V4 ESC supplies extreme power. The ESC includes a superior governor and BEC. The NEW DS820M/DS825M high voltage brushless servos are more efficient and outperform other servos in this class. To protect these servos the new high-end CNC aluminum case function as a heat sink allowing the servos to operate at a lower temperature.
T-REX 760X introduced many new design with top equipment providing excellent performance allowing any flying style no matter F3C or 3D flight. If you don’t have any big helicopter, ALIGN TREX 760X must your best choice.

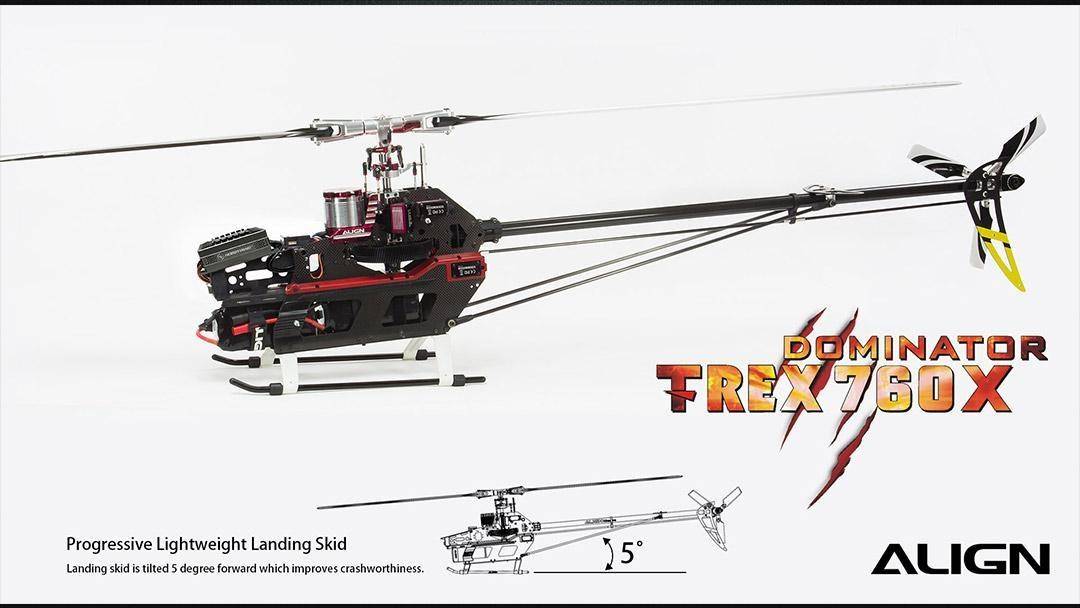

Landing skid is tilted 5 degree forward which improves crashworthiness.

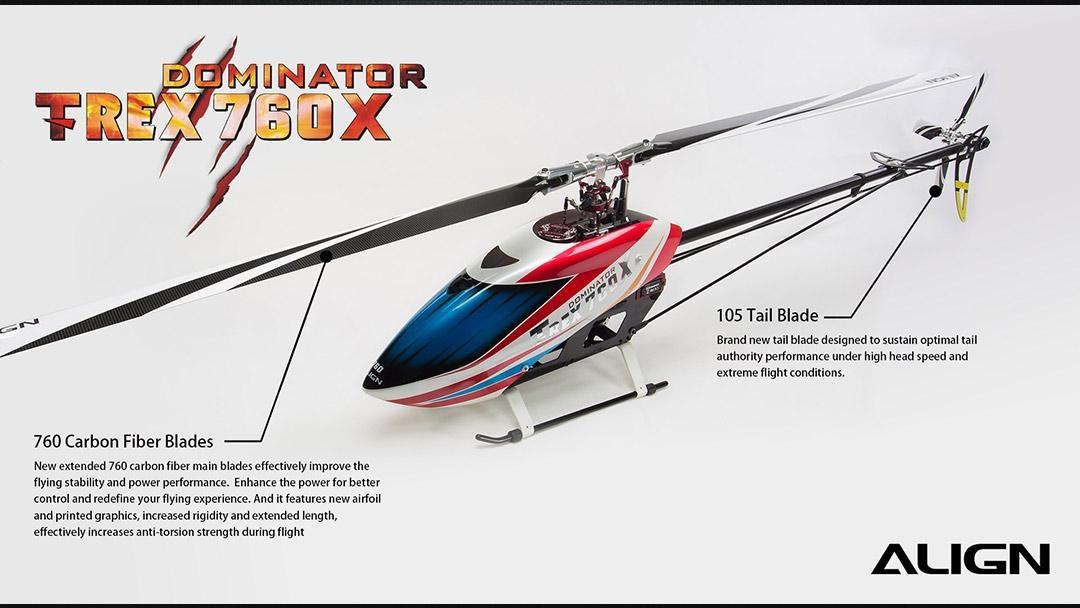

New extended 760 carbon fiber main blades effectively improve the flying stability and power performance. Enhance the power for better control and redefine your flying experience. And it features new airfoil and printed graphics, increased rigidity and extended length, effectively increases anti-torsion strength during flight.

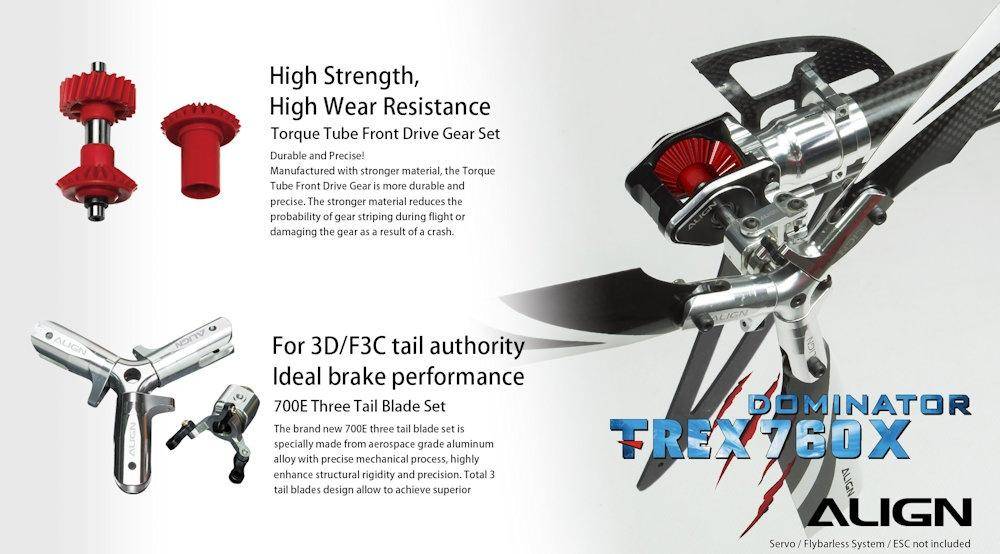

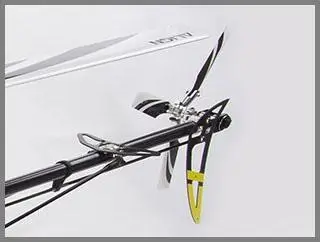

Brand new tail blade designed to sustain optimal tail authority performance under high head speed and extreme flight conditions.

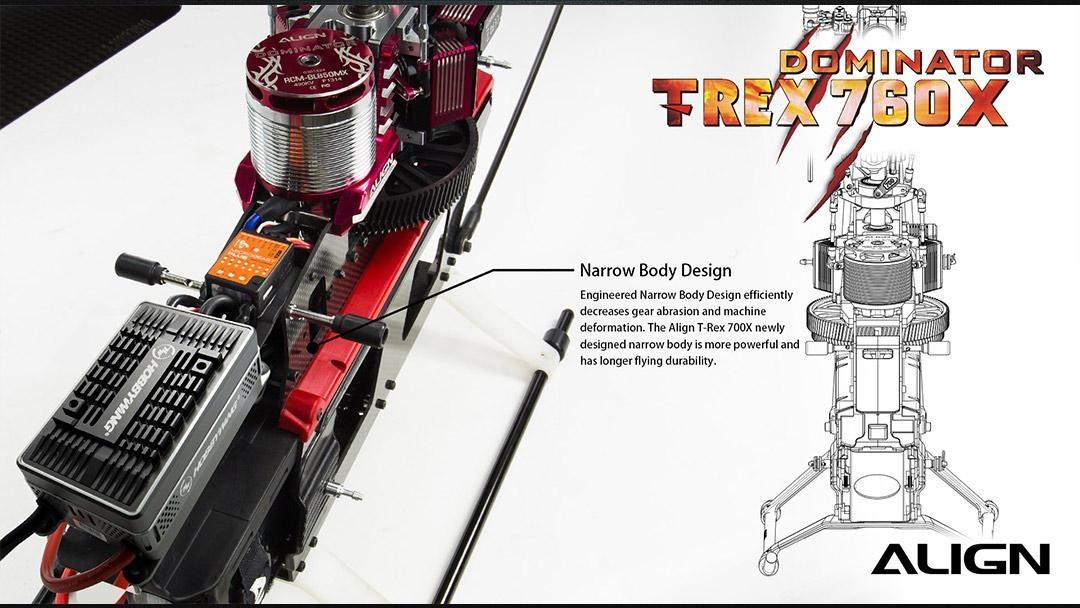

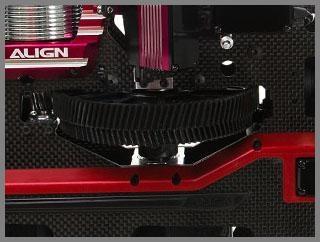

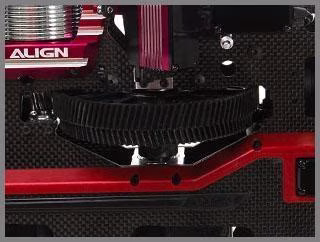

Engineered Narrow Body Design efficiently decreases gear abrasion and machine deformation. The Align T-Rex 700X newly designed narrow body is more powerful and has longer flying durability.

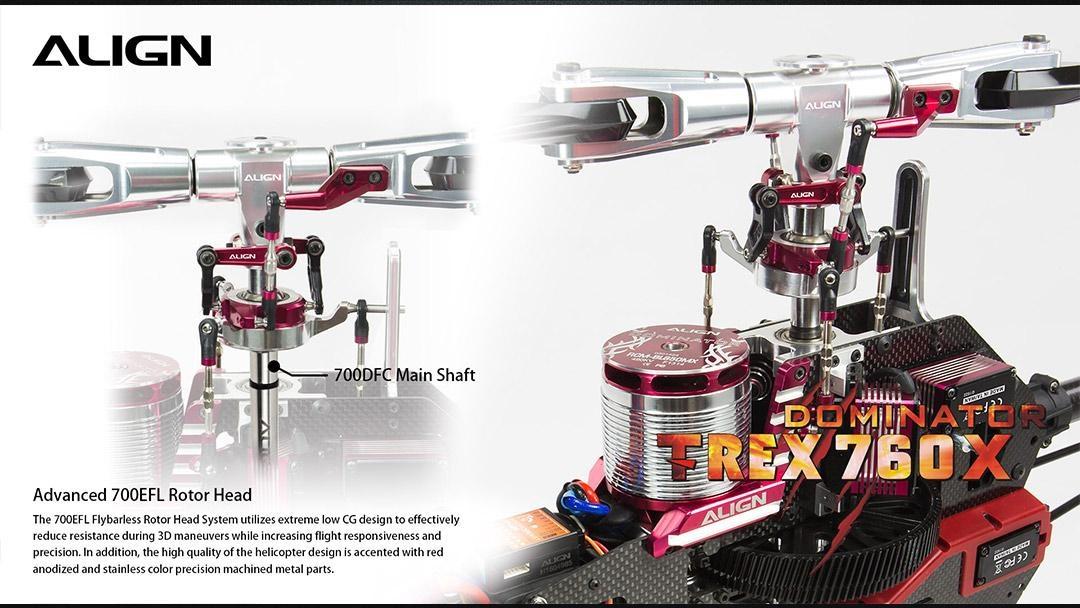

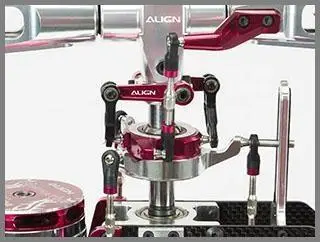

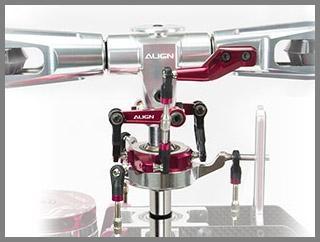

The 700EFL Flybarless Rotor Head System utilizes extreme low CG design to effectively reduce resistance during 3D maneuvers while increasing flight responsiveness and precision. In addition, the high quality of the helicopter design is accented with red anodized and stainless color precision machined metal parts.

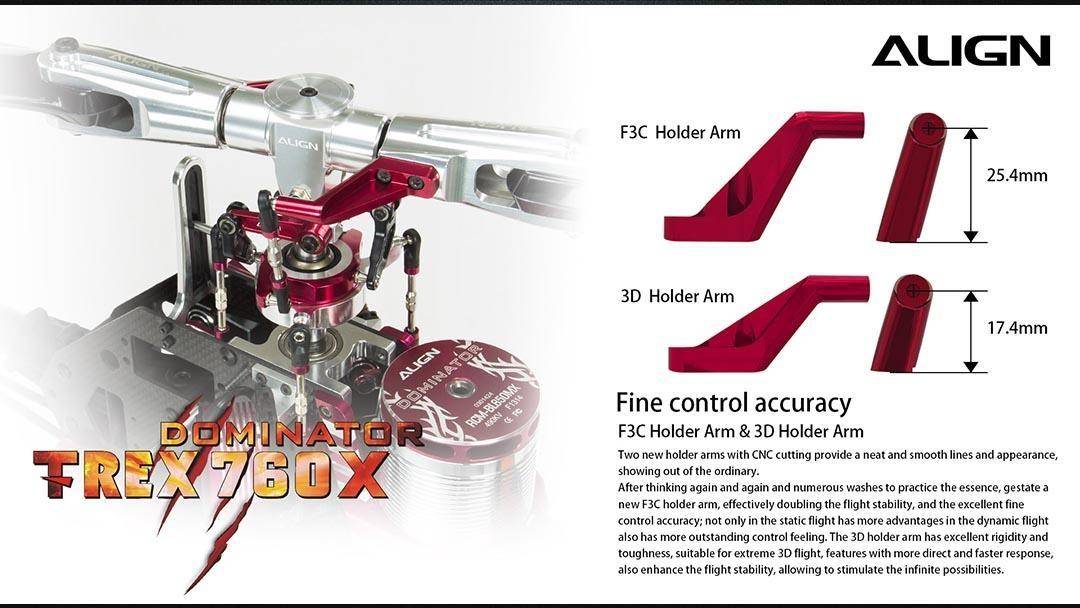

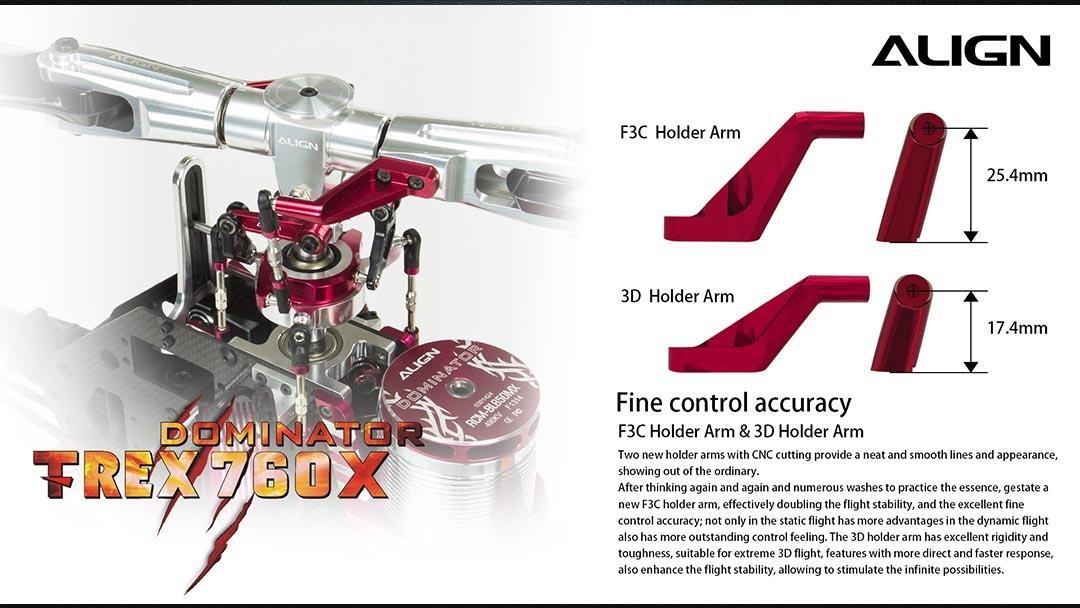

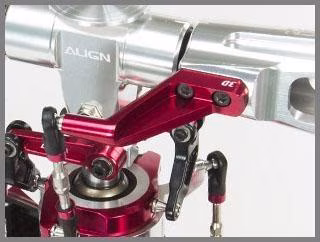

Two new holder arms with CNC cutting provide a neat and smooth lines and appearance, showing out of the ordinary. After thinking again and again and numerous washes to practice the essence, gestate a new F3C holder arm, effectively doubling the flight stability, and the excellent fine control accuracy; not only in the static flight has more advantages in the dynamic flight also has more outstanding control feeling. The 3D holder arm has excellent rigidity and toughness, suitable for extreme 3D flight, features with more direct and faster response, also enhance the flight stability, allowing to stimulate the infinite possibilities.

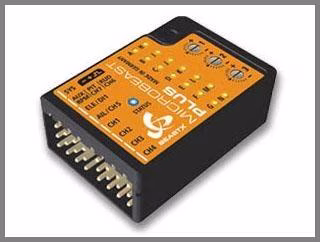

The high-end Microbeast 6-axis gyro with 32-bit high-speed processor is much precise and superior in programming and computing allow for significant handling performance and delicate response. In addition, the Microbeast PLUS gyro vibration-reduction improvement, strongly reduce the effects of the vibration to improve flying performance.

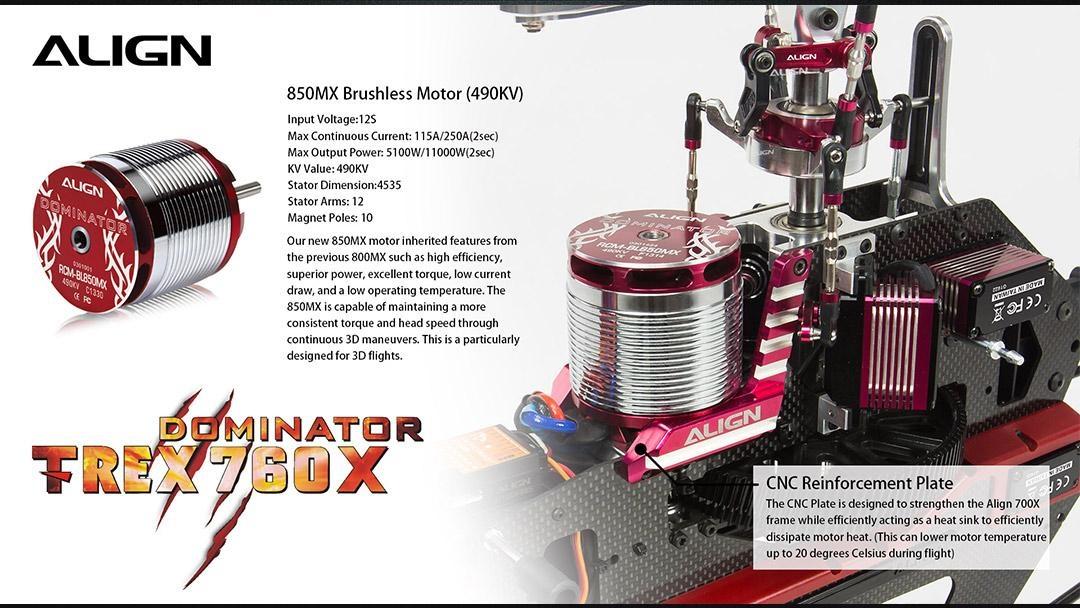

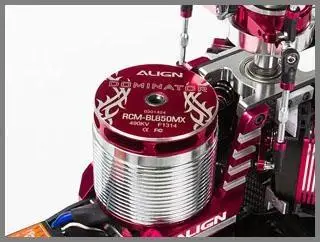

Our new 850MX motor inherited features from the previous 800MX such as high efficiency, superior power, excellent torque, low current draw, and a low operating temperature. The 850MX is capable of maintaining a more consistent torque and head speed through continuous 3D maneuvers. This is a particularly designed for 3D flights.

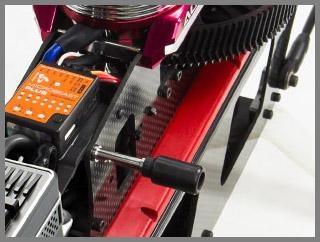

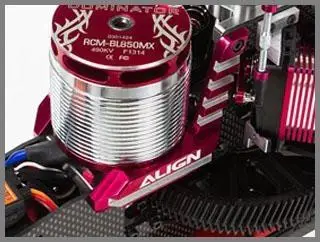

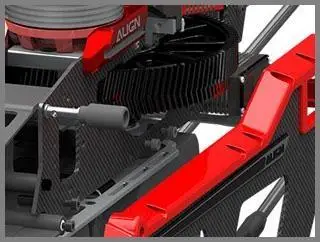

The CNC Plate is designed to strengthen the Align 700X frame while efficiently acting as a heat sink to efficiently dissipate motor heat. (This can lower motor temperature up to 20 degrees Celsius during flight).

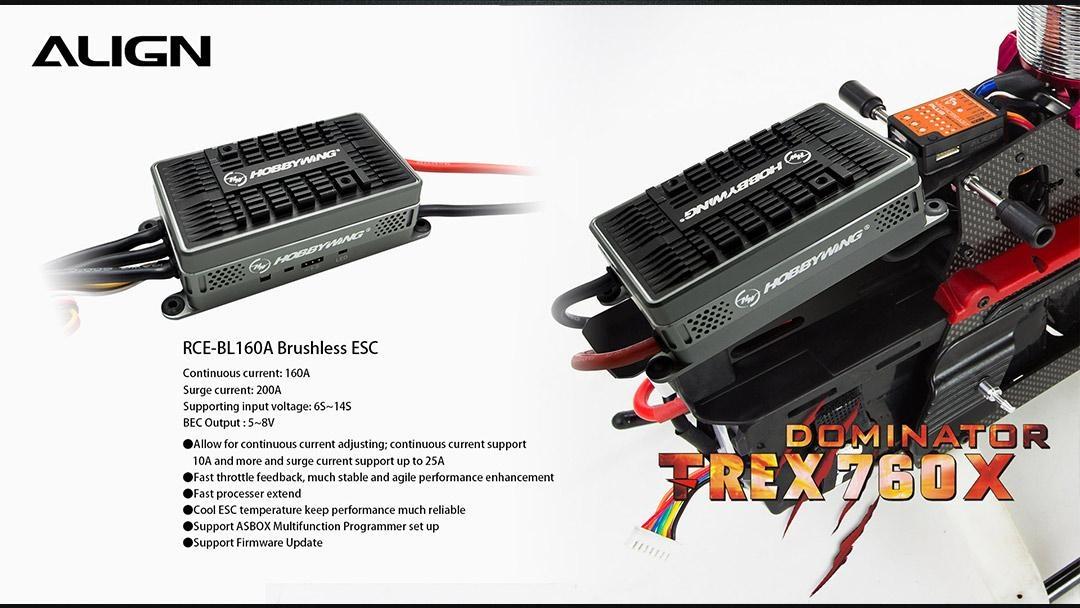

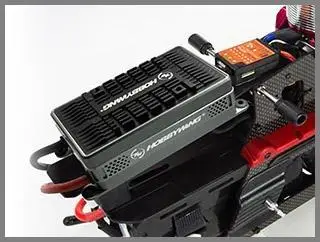

HOBBYWING Platinum HV V4 ESC:
1. Fast throttle feedback, improves performance.
2. Fast processor extend.
3. Cool ESC temperature improves performance.
4. Support ASBOX Multifunction Programmer.
5. Support Firmware Update.

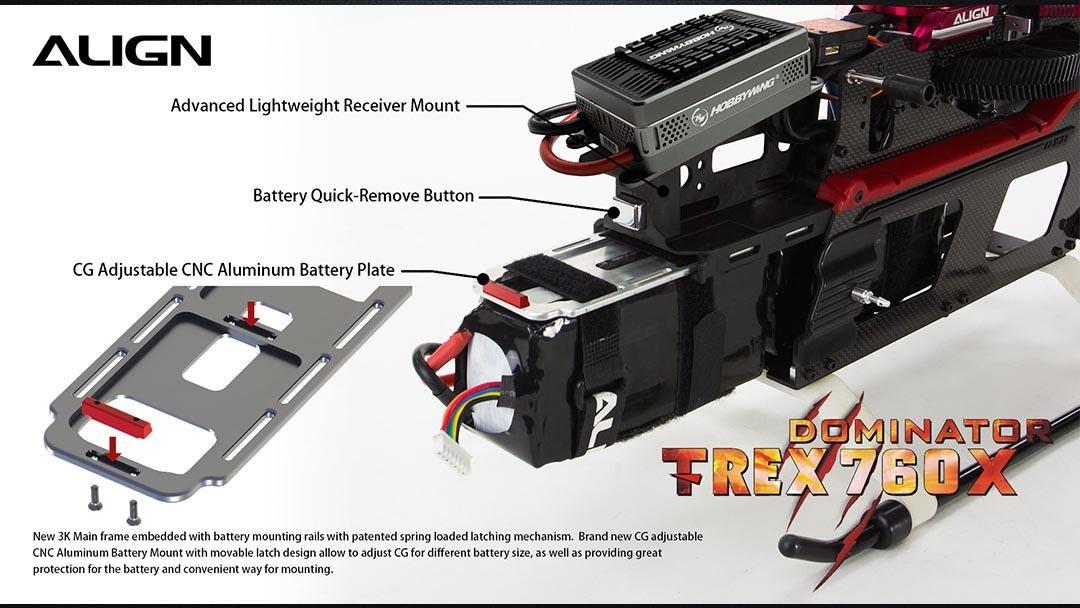

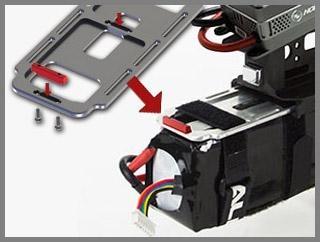

New 3K Main frame embedded with battery mounting rails with patented spring loaded latching mechanism. Brand new CG adjustable CNC Aluminum Battery Mount with movable latch design allow to adjust CG for different battery size, as well as providing great protection for the battery and convenient way for mounting.

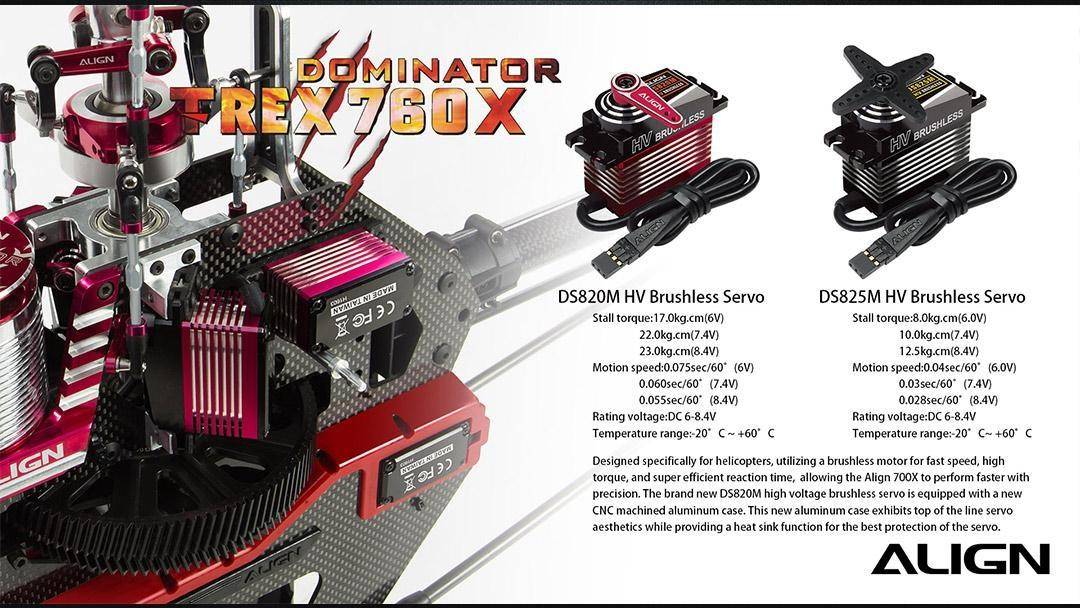

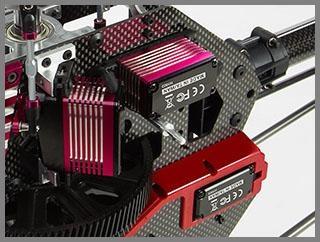

Designed specifically for helicopters, utilizing a brushless motor for fast speed, high torque, and super efficient reaction time, allowing the Align 700X to perform faster with precision. The brand new DS820M high voltage brushless servo is equipped with a new CNC machined aluminum case. This new aluminum case exhibits top of the line servo aesthetics while providing a heat sink function for the best protection of the servo.

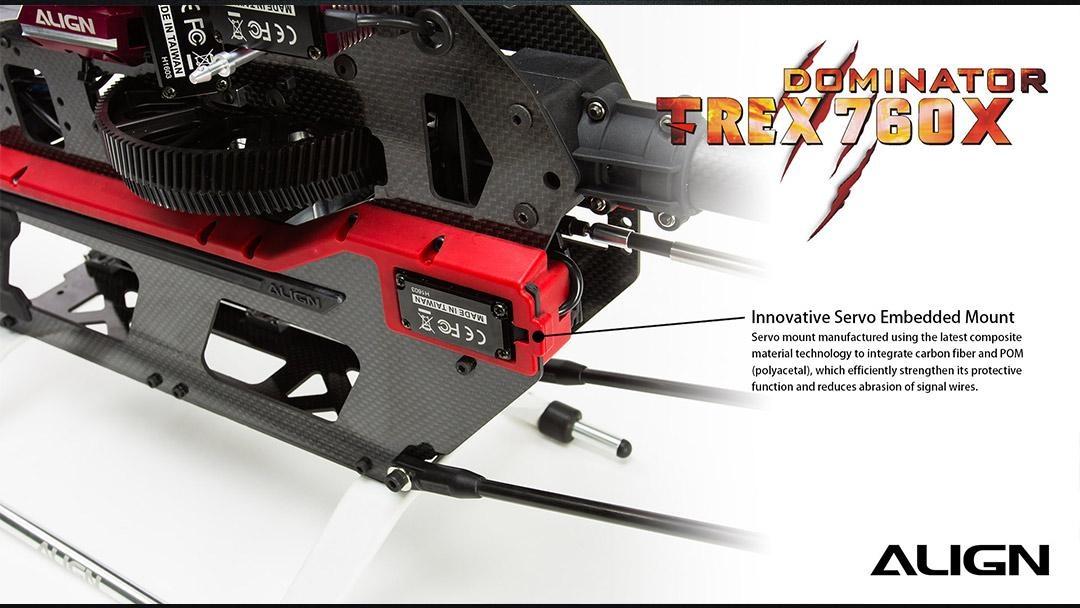

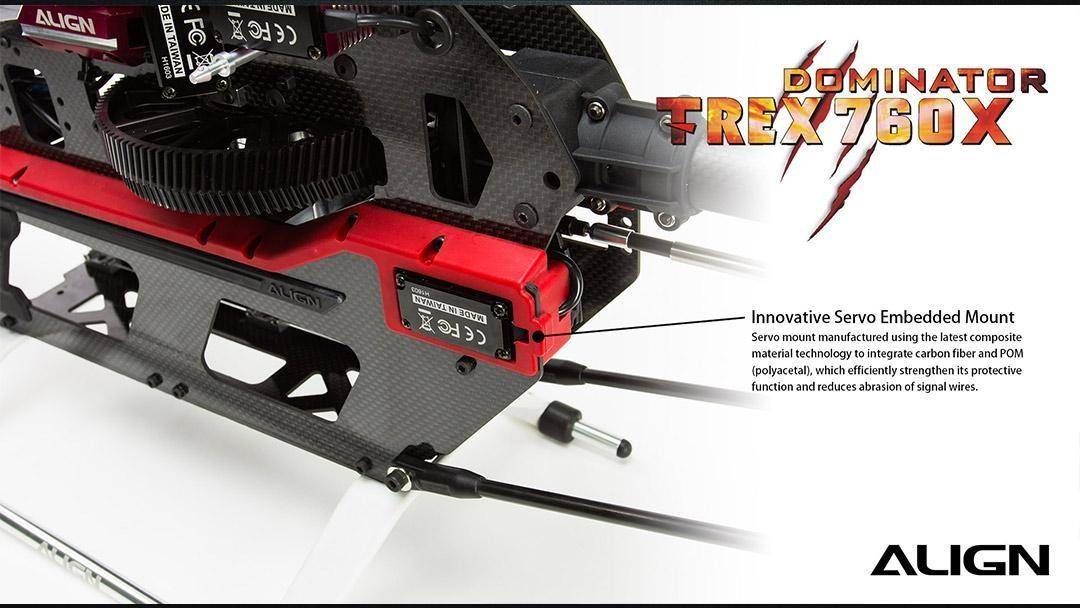

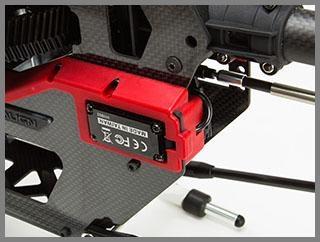

Innovative Servo Embedded Mount. Servo mount manufactured using the latest composite material technology to integrate carbon fiber and POM (polyacetal), which efficiently strengthen its protective function and reduces abrasion of signal wires.

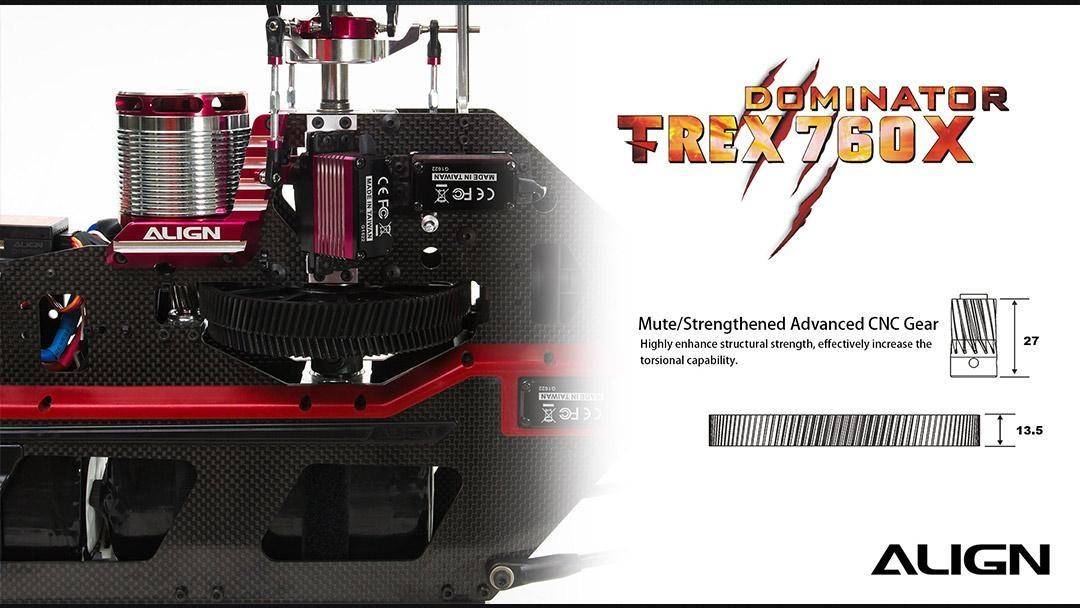

Highly enhance structural strength, effectively increase the torsional capability.

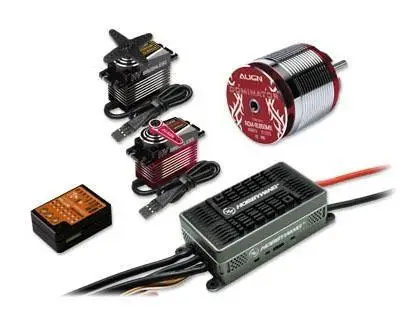

- T-REX 760X Kit
- Microbeast Flybarless System
- Platinum HV 200A V4 Brushless ESC
- 850MX Brushless Motor (490KV/4535)
- DS820M HV Brushless Servo x 3 Freq: 200hz
- DS825M HV Brushless Servo Pulse: 1520µs / Freq: 333hz
- 760mm Carbon Fiber Blades
- 105mm 3K Carbon Fiber Tail Blades

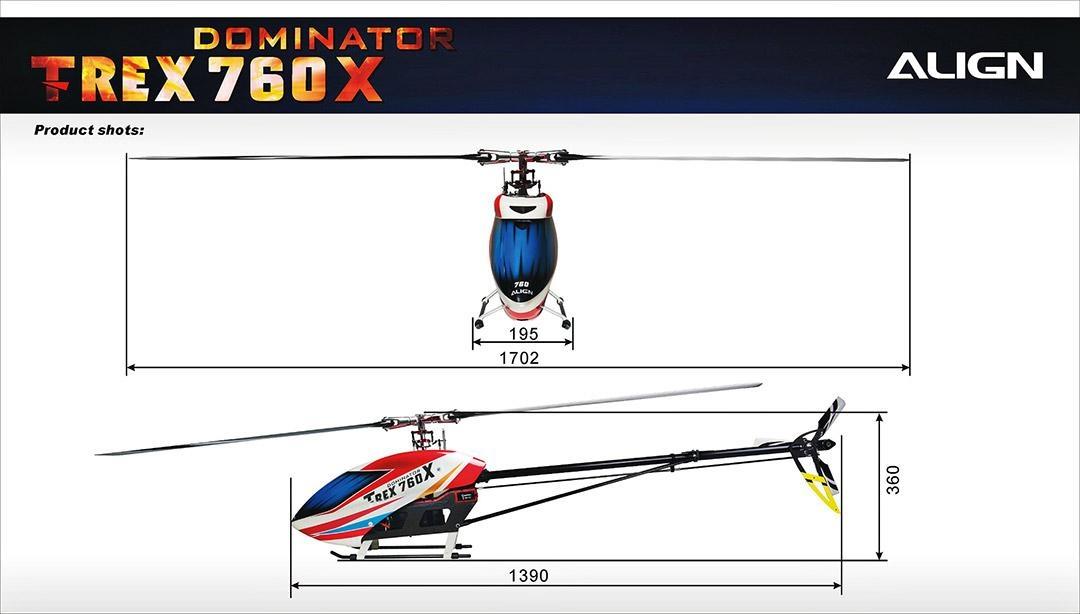

- Length: 1390mm - 54.72In
- Height: 360mm - 14.17In
- Width: 195mm - 7.68In
- Main Blade Length: 760mm - 29.92In
- Main Rotor Diameter: 1702mm - 67.01In
- Tail Rotor Diameter: 287mm - 11.30In
- Motor Drive Gear: 12T
- Main Drive Gear: 112T
- Autorotation Tail Drive Gear: 102T
- Tail Drive Gear: 23T
- Drive Gear Ratio: 9.33 : 1 : 4.43
- Weight (w/o battery): 3750g - 8.27Lbs
