470L Build / Setup (Development in Process)
MICROBEAST PLUS
Below are the light settings for the MicroBeast Plus used on Alan Szabo Jr. and Gale Align 470LT and 470LM.
| PARAMETER MENU (Menu LED Flashing quickly) | LIGHT SETUP | |
|---|---|---|
| A | Swashplate quick trim/ AttitudeControl trim | Used to trim helicopter, best not to adjust if an early beginner. |
| B | Control Style | PRO (RED) |
| C | Speed Fligh Stability | MEDIUM* (RED) |
| D | Rudder Rate Consistency | MEDIUM* (RED |
| E | Stick Deadzone | SMALL* (FLASHING RED) |
| F | Torque Precompensation | HIGH-INV (BLUE) |
| G | Cyclic Response | INCREASED (RED) |
| H | Pitch Boost | OFF* (PURPLE) |
| I | Throttle Response | NORMAL* (PURPLE) |
| J | Slow Rampup Speed | 200 RPS* (RED) |
| K | Fast Rampup Speed | 500 RPS* (RED) |
| L | AttitudeControl Mode | DISABLED* (FLASHING PURPLE) |
| M | (AttitudeControl Pitch) | NOT USED |
Standard Equipment

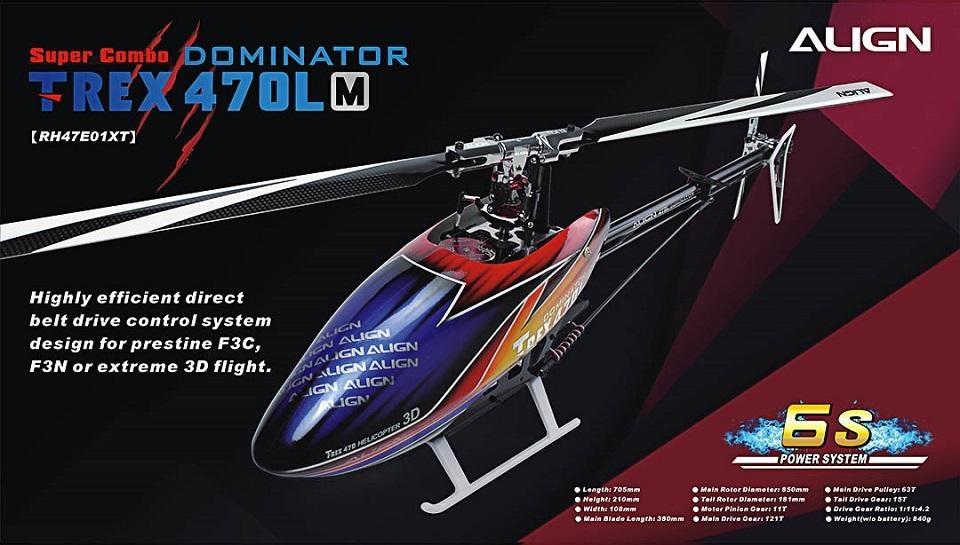

- T-REX 470L Dominator Kit x 1
- Microbeast PLUS Flybarless System x 1
- RCE-BL50X Brushless ESC x 1
- 470MX Brushless Motor (1800KV) x 1
- DS450 HV Brushless Servo x 3 Freq: 200Hz
- DS455 HV Brushless Servo x 1 Pulse: 1520µs / Freq: 333hz
- 380 Carbon Fiber Blades x 1 Set
- 69 Tail Rotor Blade x 1 Set
Specification
- Length: 755mm - 29.72In
- Height: 210mm - 8.27In
- Width: 108mm - 4.25In
- Main Blade Length: 380mm - 14.96In
- Main Rotor Diameter: 850mm - 33.46In
- Tail Rotor Diameter: 181mm - 7.13In
- Motor Pinion Gear: 11T
- Main Drive Gear: 121T
- Main Drive Pulley: 56T
- Tail Drive Gear: 15T
- Drive Gear Ratio: 11 : 1 : 3.73
- Weight (with Motor): 860g - 1.90Lbs
Additional Equipment Required for Assembly
- Transmitter (7-channel or more, helicopter system)
- Receiver (7-channel or more)
- 6S Li-Po 1400 ~ 1800mAh x 1 Recommend 1450mAh Part #: HBP14501
- Digital Pitch Gauge Part # HET80001
- Hex Screw Driver Set Part # HOT00002
