TB70 Super Combo RH70E59X (T-REX)
All-New ALIGN T-REX TB70 Super Combo RH70E59XW is specially designed for extreme 3D flight addicts.

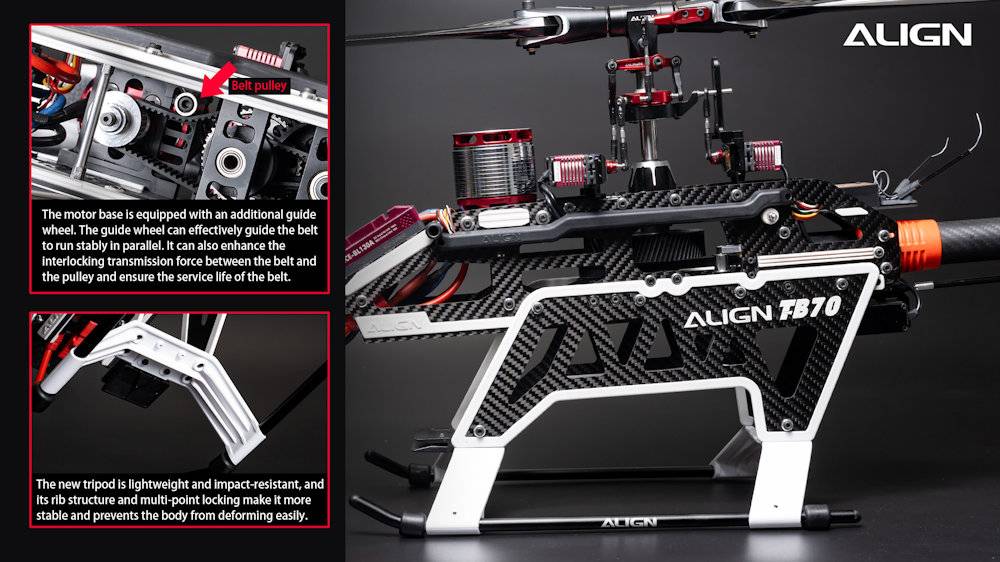

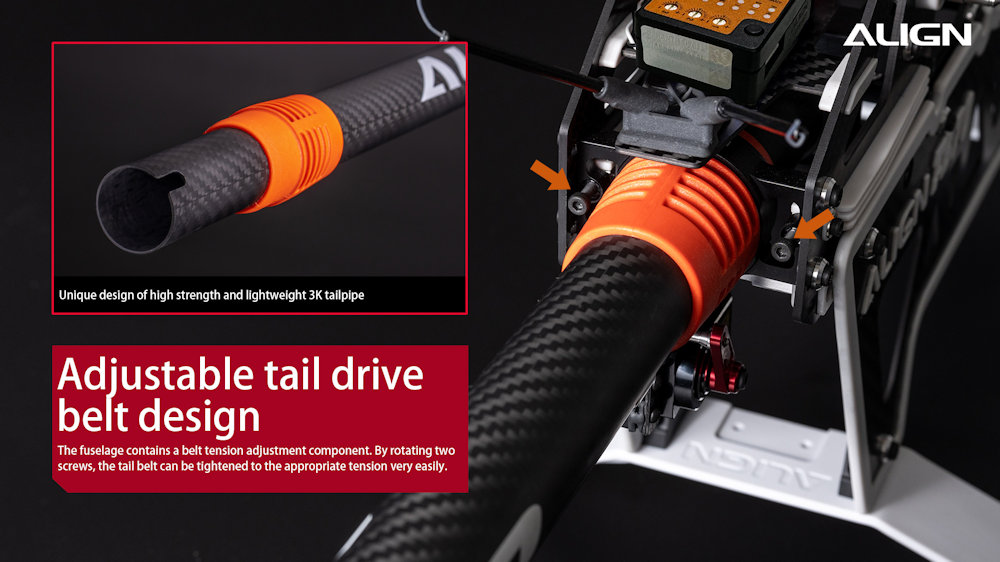

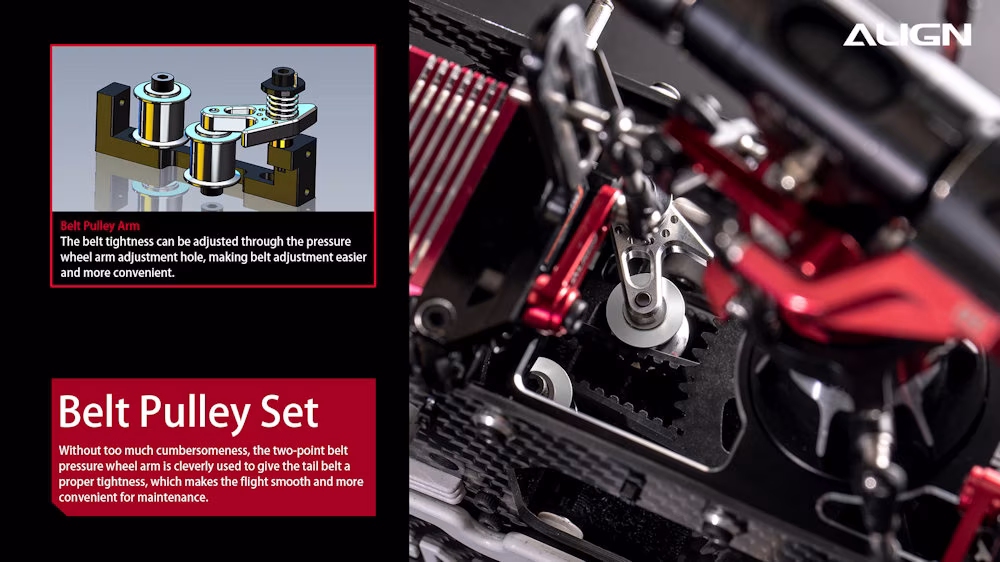

Efficient Belt-Drive Design

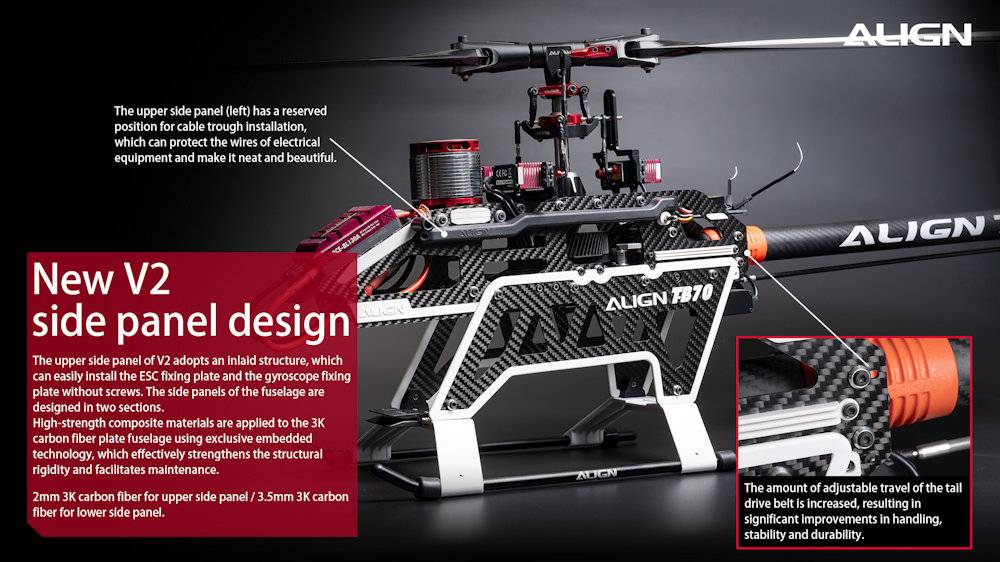

Integrated Composite Material Side Plates Engineered with Propitiatory Embedding Technology
Lighter, Quieter, and Stronger compared to Prior ALIGN TREX 700 Models

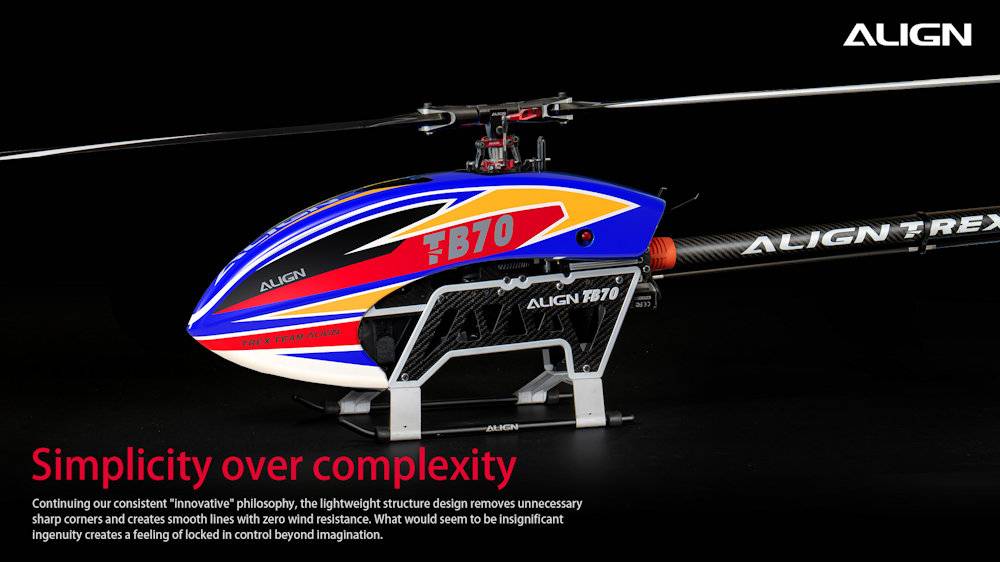

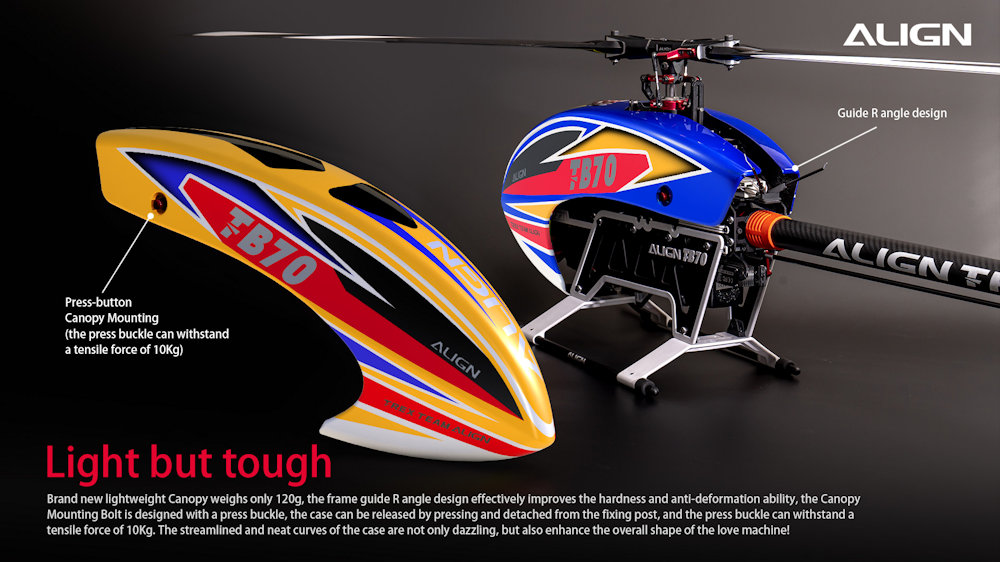

New Streamline Designed TB70 Canopy
Upgraded Canopy Mounting System
Regular Price $1,599.99
Now $1,359.99
Regular Price $1,599.99 Now $1,359.99

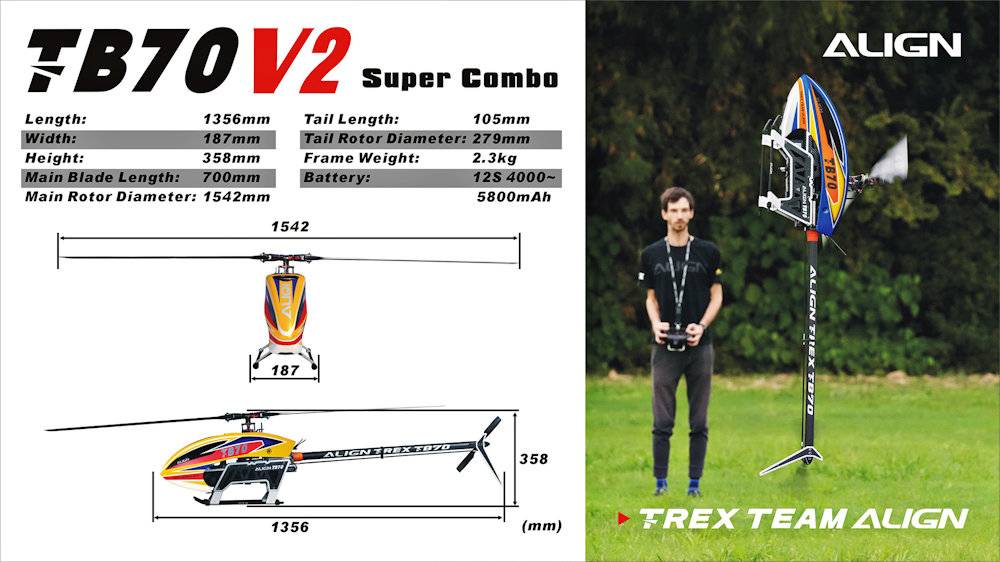

Specification
- Length: 1356mm - 53.39In
- Height: 358mm - 14.09In
- Width: 187mm - 7.36In
- Main Blade Length: 650mm - 730mm
- Main Rotor Diameter: 1542mm - 60.71In
- Tail Blade Length: 105mm - 115mm
- Tail Rotor Diameter: 279mm - 10.98In

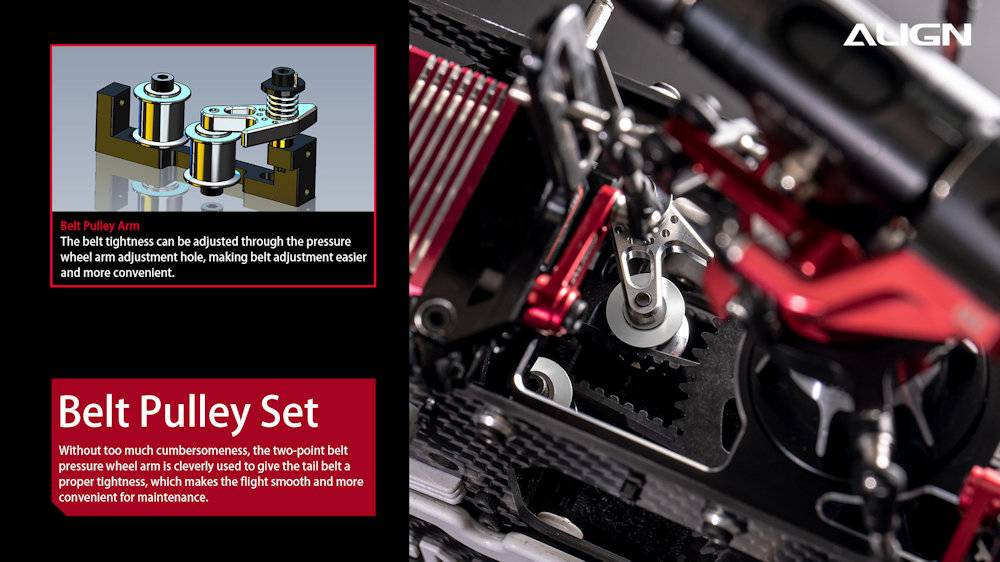

- Motor Belt Pulley: 22T
- Belt Pulley: 50T

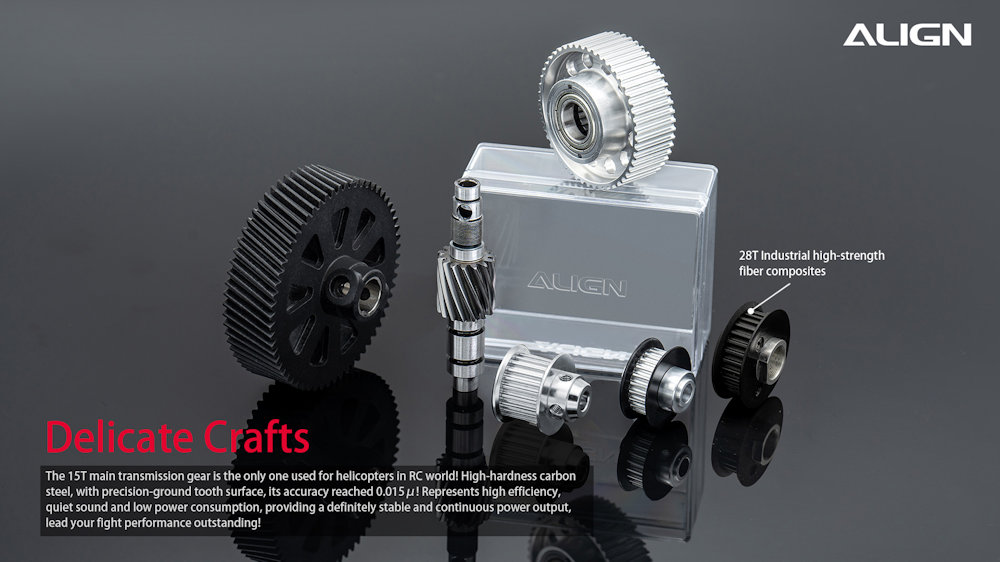

- Front Drive Main Shaft: 15T

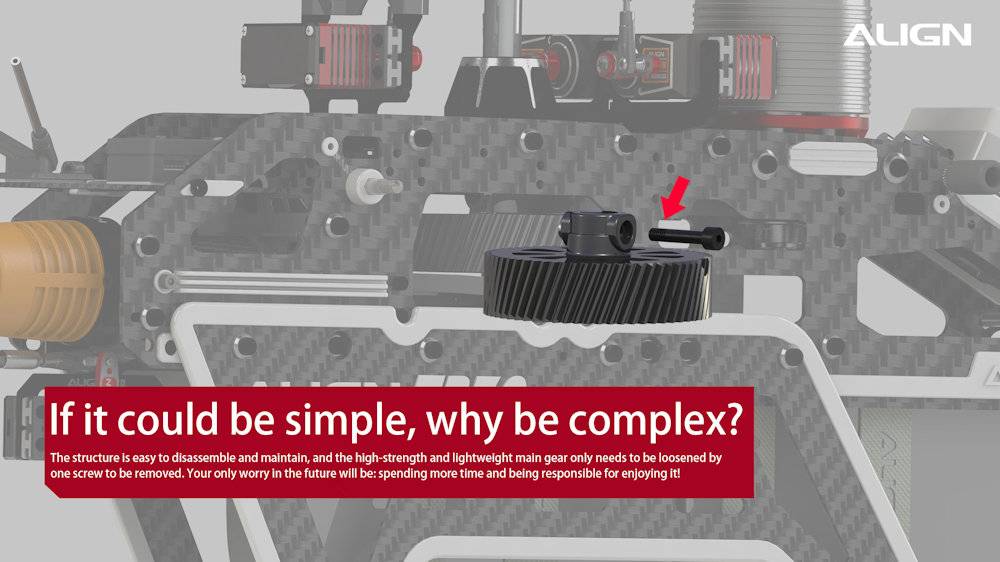

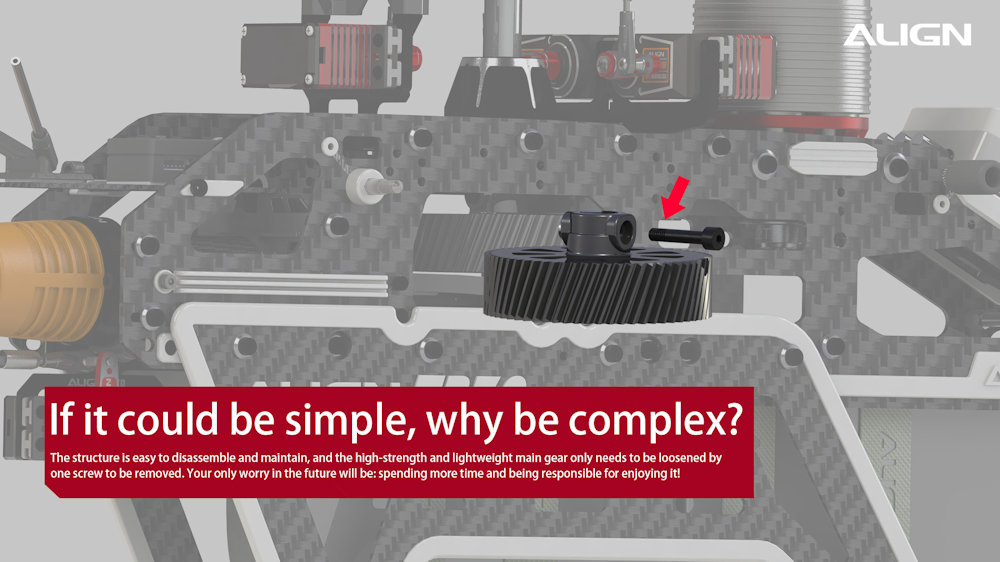

- Main Drive Gear: 62T
- Drive Gear Ratio: 9.38 : 1 : 4.83
- Max RPM (approx): 2400
- Weight (with Battery): 5kg - 11.02Lbs (ALIGN 12S 5200mAh)

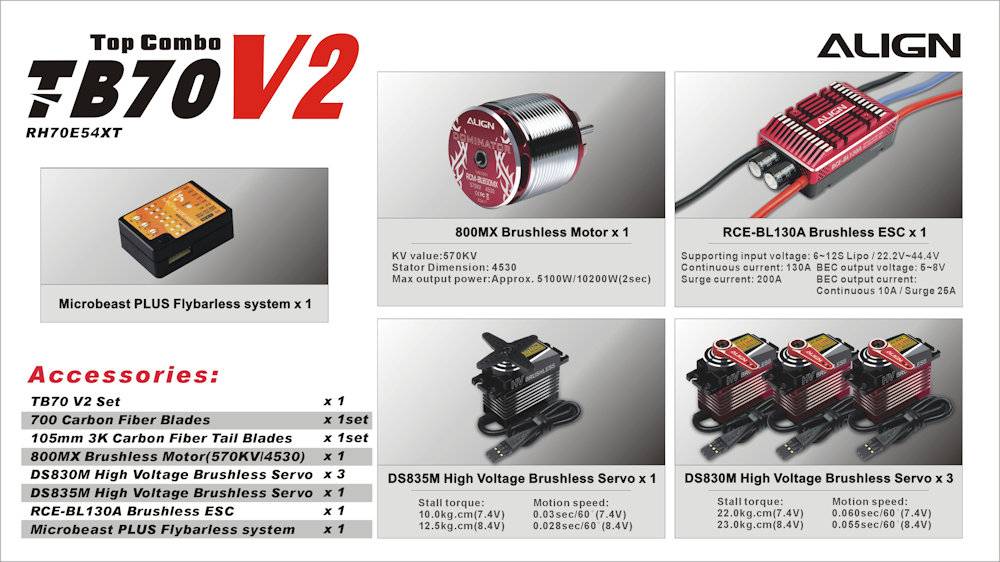

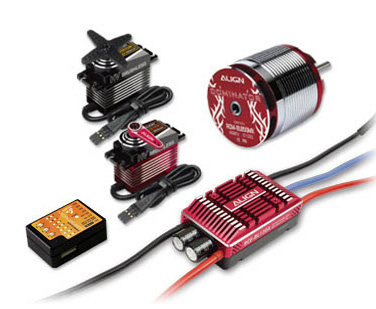

Electric Equipment
- T-REX TB70 V2 Kit x 1

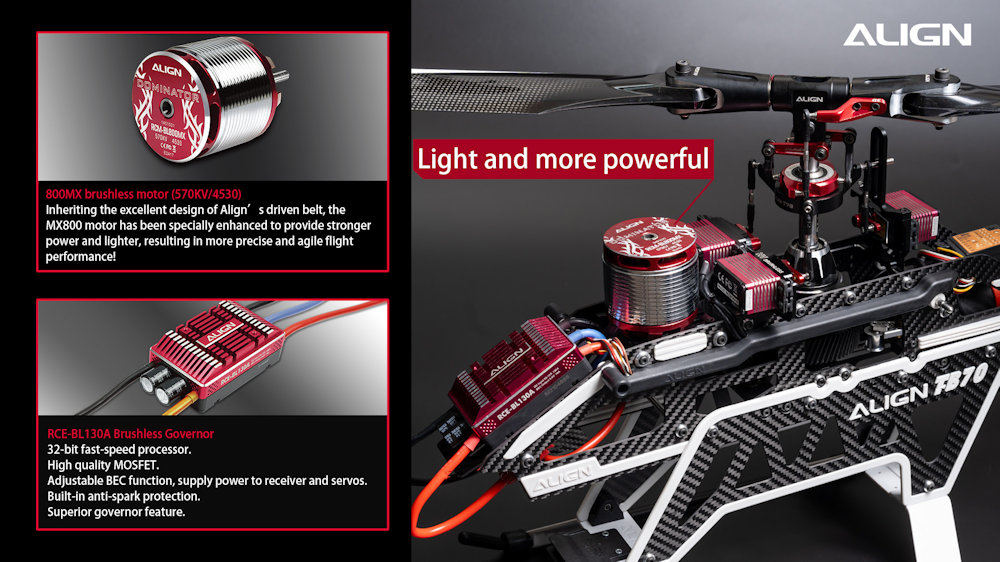

- RCE-LB130A Brushless ESC
- MICROBEAST² Flybarless System
- 800MX Brushless Motor (570KV/4530) x 1

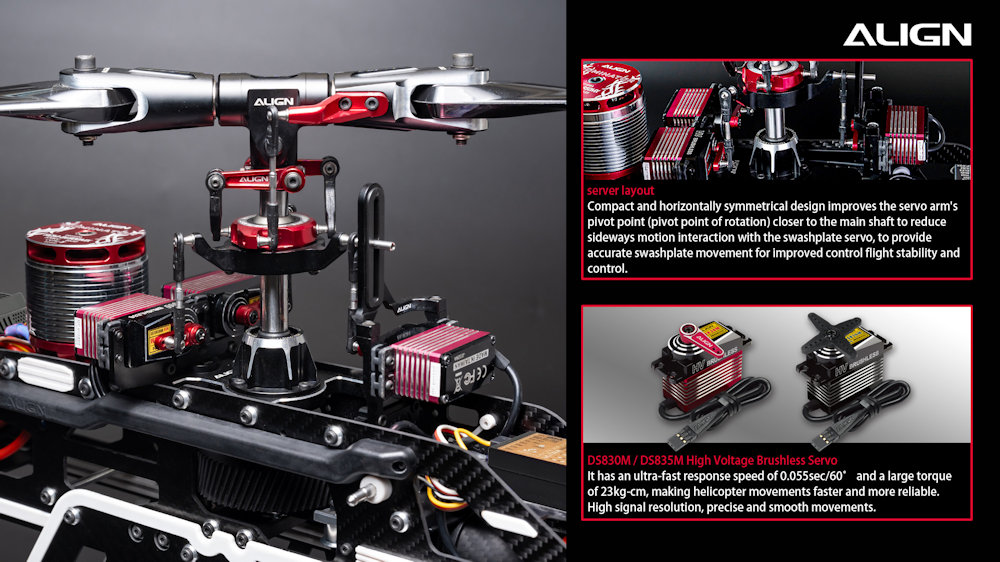

- DS830M HV Servo x 3 Freq: 200hz
- DS835M HV Servo x 1 Pulse: 1520µs / Freq: 333hz
- 700mm Carbon Fiber Blades x 1
- 105mm 3K Carbon Fiber Tail Blades x 1
