Description

ALIGN TB70 V2 (RH70E54XT)

Second-generation TB70: a 700-class flybarless electric helicopter running on 12S power (two 6S LiPo packs), with belt-driven tail.

• Main blades: 700 mm carbon (approx. 1542 mm rotor diameter)
• Tail blades: 105 mm carbon
• Power: 2 × 6S LiPo, 4000–5800 mAh
• Gear ratio: 9.38:1:4.83, approx. 2400 max head speed
• Motor: 800MX 570KV
• Servos (combo versions): DS830M cyclic / DS835M tail, high-voltage brushless
• Flying weight: approx. 5 kg

What's new in V2

• Lighter upper main frame
• Redesigned flybarless (gyro) mounting plate
• Upper side plates allow more tail belt adjustment
• Tail servo mount secured with four screws for better tail precision
• Strengthened main shaft and landing skid
• Motor mount adds wiring channels and a belt pulley arm

Model history

• Released: Mid-2024
• Status: Current
• Replaces: TB70 (RH70E51XT)

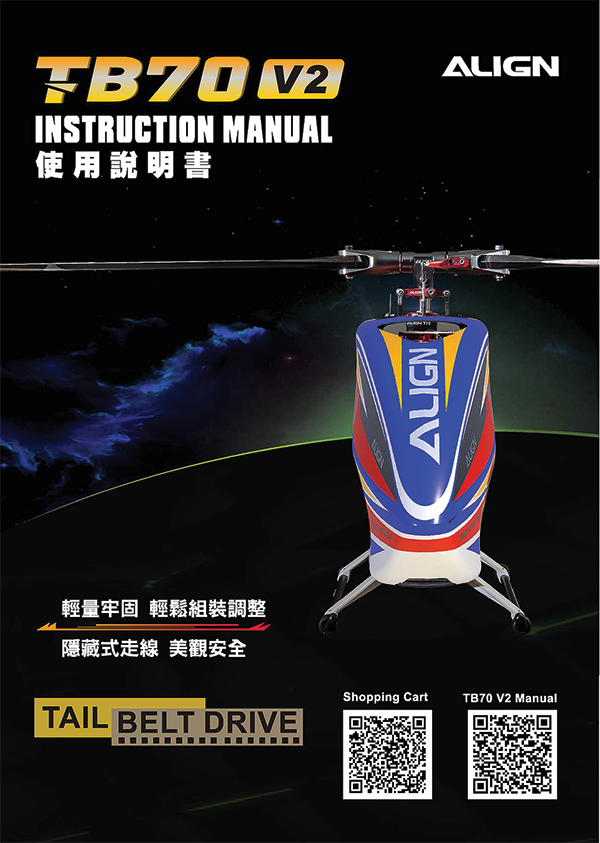

Manual covers assembly, setup and parts list. Original TB70 airframes can be upgraded to V2 specification.
