Description

ALIGN TB40 Top Combo / Kit (RH40E01XT)

380-class flybarless electric helicopter running on 6S power, with belt-driven tail.

• Main blades: 380 mm carbon (851 mm rotor diameter)
• Tail blades: 70 mm carbon (188 mm tail rotor diameter)
• Power: 6S 22.2V LiPo, 1850–2200 mAh
• Gear ratio: 6.44:1:4.04, approx. 3400 max head speed
• Motor: ALIGN 400MX 1100KV (Top Combo and Kit)
• Top Combo also includes: Platinum 60A ESC, 3 × DS450M cyclic servos, DS535M tail servo, Microbeast flybarless unit
• Weight: approx. 953 g without battery

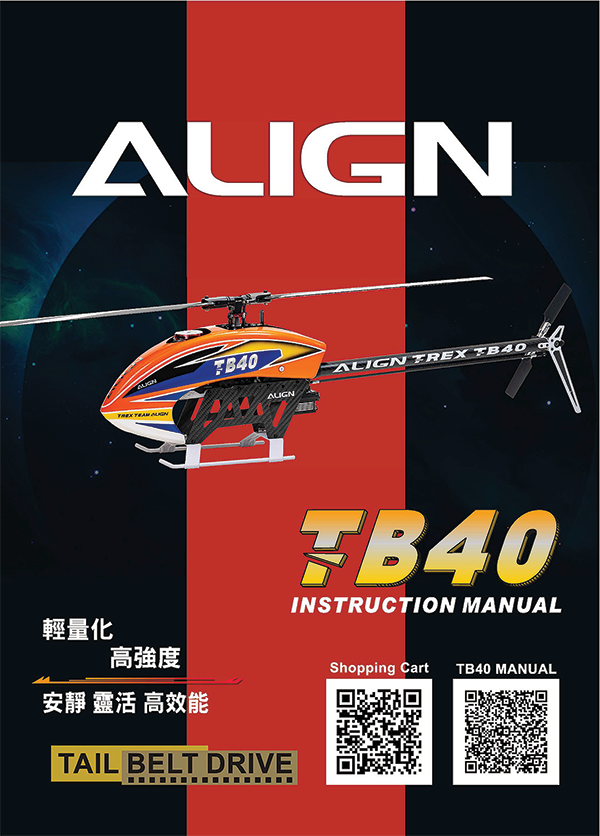

Manual version: January 4, 2024 (original release). Covers assembly, setup and parts list.
