Description

ALIGN T-REX 800E PRO Super Combo (RH80E16XT)

800-class flybarless electric helicopter built for 3D flight, with FL rotor head and torque tube tail drive, running on 12S power (two 6S LiPo packs).

• Main blades: 780 mm carbon (1740 mm rotor diameter)
• Tail blades: 115 mm carbon (301 mm tail rotor diameter)
• Power: 12S (2 × 6S LiPo)
• Gear ratio: 9.33:1:4.73
• Motor: ALIGN 850MX 490KV
• ESC: ALIGN RCE-BL200A 200A
• Servos: 3 × DS820M cyclic, DS825M tail (HV digital, metal gear)
• Flybarless: Microbeast PLUS
• Weight: approx. 4.1 kg without battery

Model history

• Released: 2021
• Status: Current
• Replaces: T-REX 800E PRO DFC Super Combo (RH80E10XT)

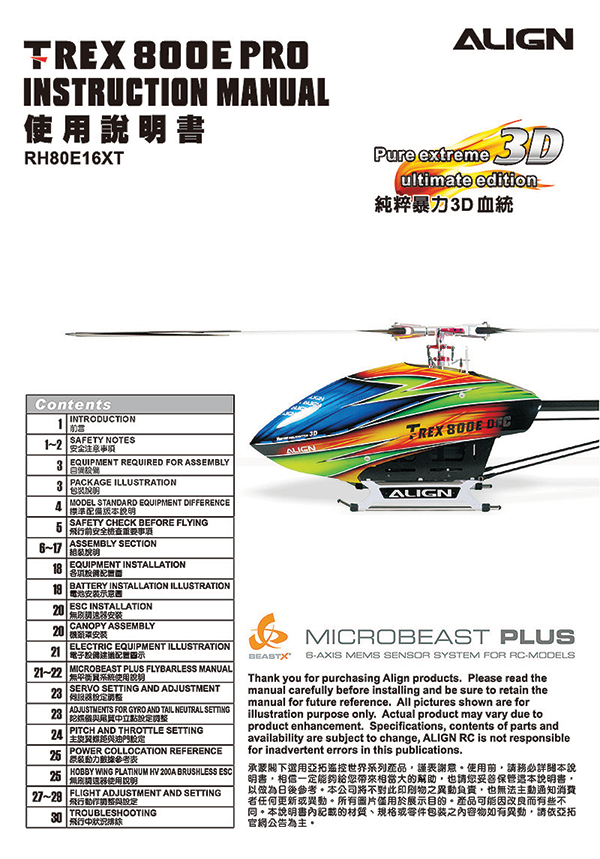

Manual covers assembly, setup and parts list. Original release edition; see the February 11, 2025 revision for the latest manual.
