Description

ALIGN T-REX 800E PRO DFC Super Combo / Kit (RH80E10XT / RH80E12XT)

800-class flybarless electric helicopter built for 3D flight, with DFC rotor head and torque tube tail drive, running on 12S power (two 6S LiPo packs).

• Main blades: 780 mm carbon (1740 mm rotor diameter)
• Tail blades: 115 mm carbon (301 mm tail rotor diameter)
• Power: 2 × 6S LiPo, 4500–5200 mAh, plus 1 × 2S LiPo, 1900–2300 mAh
• Gear ratio: 9.33:1:4.73
• Motor: ALIGN 850MX 490KV (both versions)
• Kit (RH80E12XT): airframe, 850MX motor, 780 mm main blades, 115 mm tail blades, carbon tail boom
• Super Combo (RH80E10XT): Kit plus Castle EDGE HV 160 ESC, 3 × BL815H cyclic and BL855H tail servos (HV brushless), Microbeast PLUS flybarless unit
• Weight: approx. 4.1 kg with motor

Model history

• Replaces: T-REX 800E PRO DFC GPRO Super Combo (RH80E06XT)
• Superseded by: T-REX 800E PRO Super Combo (RH80E16XT)

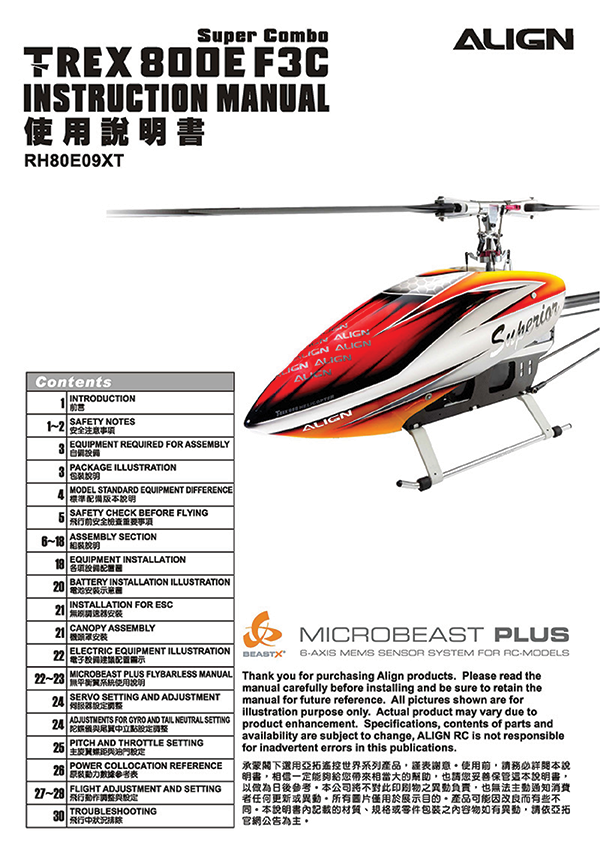

Manual covers assembly, setup and parts list for both versions. Original release edition; see the September 23, 2023 revision for the latest manual.
