Description

ALIGN T-REX 800E F3C Super Combo (RH80E09XT)

800-class flybarless electric helicopter designed for F3C precision competition, with FL flybarless rotor head and torque tube tail drive, running on 12S power (two 6S LiPo packs). Microbeast PLUS version of the 800E F3C.

• Main blades: 780 mm carbon (1740 mm rotor diameter)
• Tail blades: 115 mm carbon (301 mm tail rotor diameter)
• Power: 2 × 6S LiPo, 4500–5200 mAh, plus 1 × 2S LiPo, 1900–2300 mAh
• Gear ratio: 9.33:1:4.33
• Motor: ALIGN 850MX 490KV
• ESC: Castle EDGE HV 160
• Servos: 3 × BL815H cyclic, BL855H tail (HV brushless)
• Flybarless: Microbeast PLUS
• Weight: approx. 3.95 kg with motor

Model history

• Replaces: T-REX 800E F3C Super Combo (RH80E05XT)

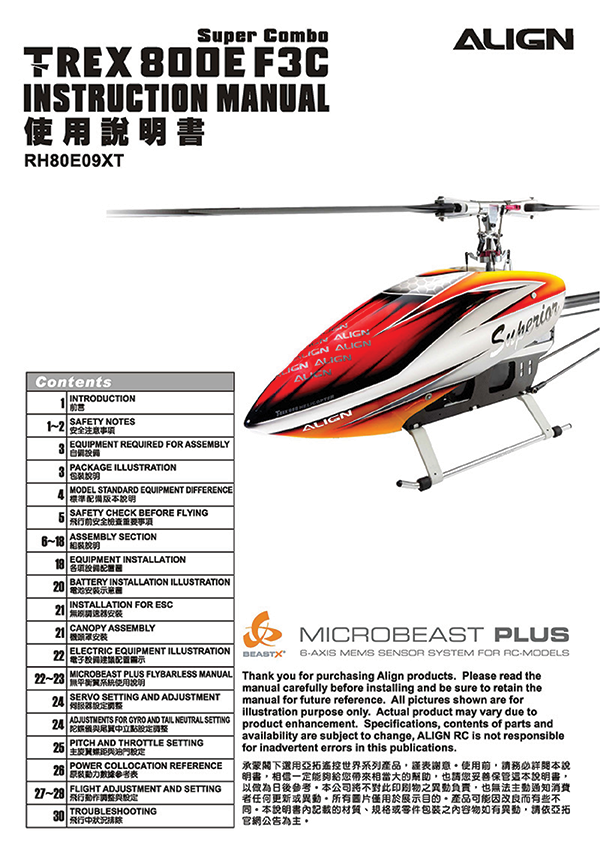

Manual covers assembly, setup and parts list.
