Description

ALIGN T-REX 800E PRO DFC GPRO Super Combo (RH80E06XT)

800-class flybarless electric helicopter built for 3D flight, with DFC rotor head and torque tube tail drive, running on 12S power (two 6S LiPo packs). Updated combo with the GPRO flybarless system.

• Main blades: 780 mm carbon (1740 mm rotor diameter)
• Tail blades: 115 mm carbon (301 mm tail rotor diameter)
• Power: 2 × 6S LiPo, 4500–5200 mAh, plus 1 × 2S LiPo, 1900–2300 mAh
• Gear ratio: 9.33:1:4.73
• Motor: ALIGN 850MX 490KV
• ESC: Castle EDGE HV 160
• Servos: 3 × BL815H cyclic, BL855H tail (HV brushless)
• Flybarless: ALIGN GPRO
• Also includes: 5.1V two-way step-down voltage regulator
• Weight: approx. 4.1 kg with motor

Model history

• Released: Late 2014
• Status: Discontinued
• Superseded by: T-REX 800E PRO DFC Super Combo with Microbeast PLUS (RH80E10XT)
• Replaces: T-REX 800E PRO DFC Super Combo (RH80E03X)

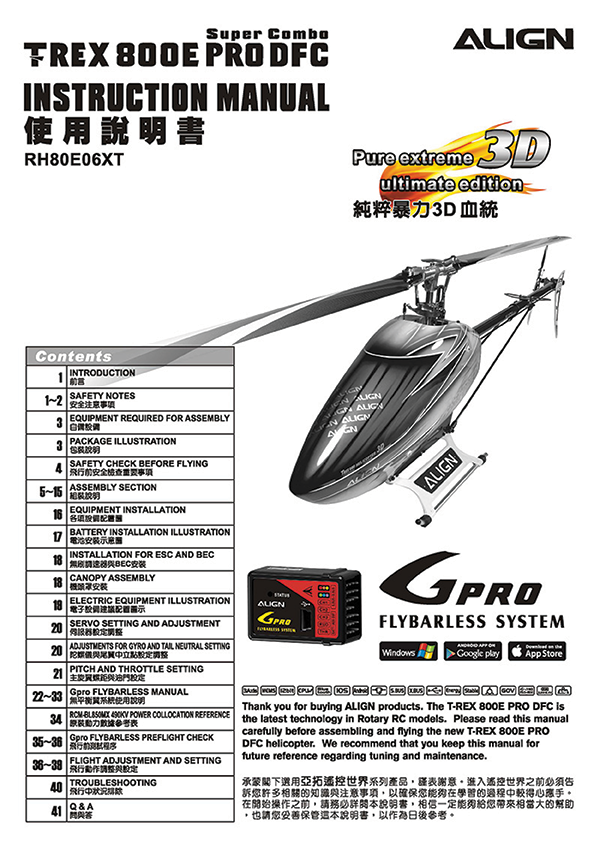

Manual covers assembly, setup and parts list.
