Description

ALIGN T-REX 800E F3C Super Combo (RH80E05XT)

800-class flybarless electric helicopter designed for F3C precision competition, with FL flybarless rotor head and torque tube tail drive, running on 12S power (two 6S LiPo packs).

• Main blades: 780 mm carbon (1740 mm rotor diameter)
• Tail blades: 115 mm carbon (301 mm tail rotor diameter)
• Power: 2 × 6S LiPo, 4500–5200 mAh, plus 1 × 2S LiPo, 1900–2300 mAh
• Gear ratio: 9.33:1:4.33
• Motor: ALIGN 800MX 440KV
• ESC: Castle EDGE HV 160
• Servos: 3 × BL815H cyclic, BL855H tail (HV brushless)
• Flybarless: ALIGN GPRO
• Weight: approx. 3.95 kg with motor

Model history

• Released: 2015
• Status: Discontinued
• Superseded by: T-REX 800E F3C Super Combo with Microbeast PLUS (RH80E09XT)

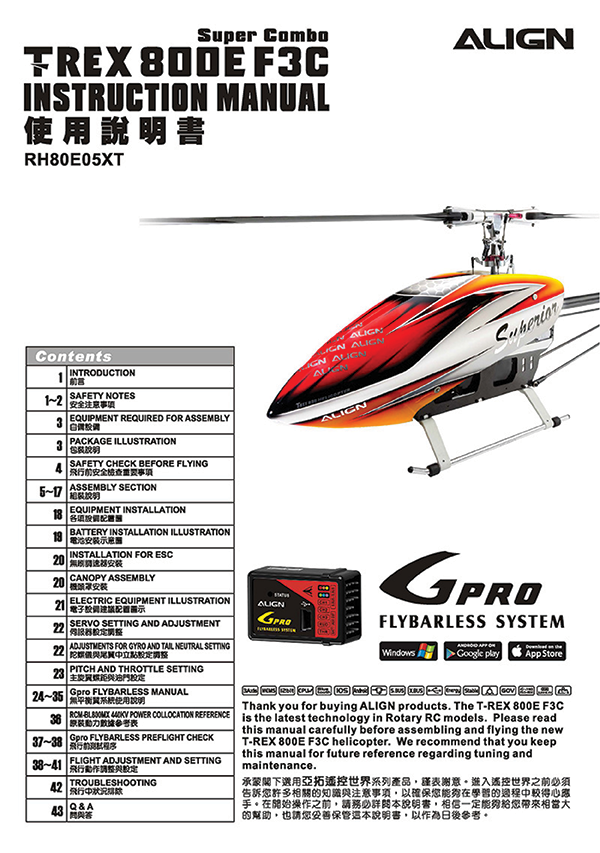

Manual covers assembly, setup and parts list.
