Description

ALIGN T-REX 800E PRO DFC Super Combo (RH80E03X)

800-class flybarless electric helicopter built for 3D flight, with DFC rotor head and torque tube tail drive, running on 12S power (two 6S LiPo packs).

• Main blades: 780 mm carbon (1740 mm rotor diameter)
• Tail blades: 115 mm carbon (301 mm tail rotor diameter)
• Power: 2 × 6S LiPo, 4500–5200 mAh, plus 1 × 2S LiPo, 1900–2300 mAh
• Gear ratio: 9.33:1:4.73
• Motor: ALIGN 850MX 490KV
• ESC: Castle EDGE HV 160
• Servos: 3 × BL800H cyclic, BL850H tail (HV brushless)
• Flybarless: ALIGN 3GX
• Weight: approx. 4.1 kg with motor

Model history

• Released: Mid-2013
• Status: Discontinued
• Superseded by: T-REX 800E PRO DFC GPRO Super Combo (RH80E06XT)
• Replaces: T-REX 800E DFC Super Combo (RH80E01X)

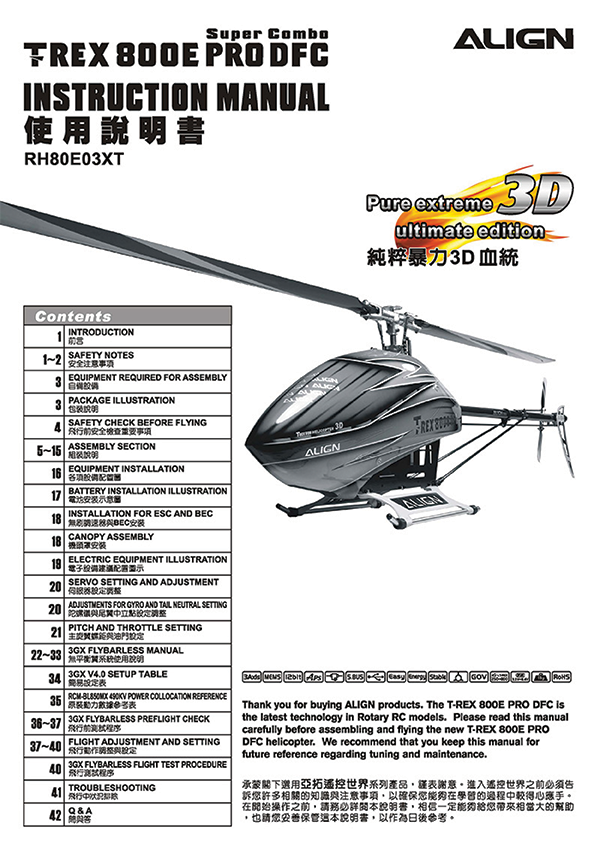

Manual covers assembly, setup and parts list.
