Description

ALIGN T-REX 800E DFC Super Combo (RH80E01X)

800-class flybarless electric helicopter with DFC rotor head and torque tube tail drive, running on 12S power (two 6S LiPo packs). Built with aerial photography in mind, with a gimbal mounting location.

• Main blades: 800 mm carbon (1780 mm rotor diameter)
• Tail blades: 115 mm carbon (301 mm tail rotor diameter)
• Power: 2 × 6S LiPo, 4500–5200 mAh, plus 1 × 2S LiPo, 1900–2300 mAh
• Gear ratio: 8.46:1:4.73
• Motor: ALIGN 750MX 450KV
• ESC: Castle ICE2 HV 120
• Servos: 3 × BL700H cyclic, BL750H tail (HV brushless)
• Flybarless: ALIGN 3GX
• Weight: approx. 3.5 kg with motor

Model history

• Status: Discontinued
• Superseded by: T-REX 800E PRO DFC Super Combo (RH80E03X)

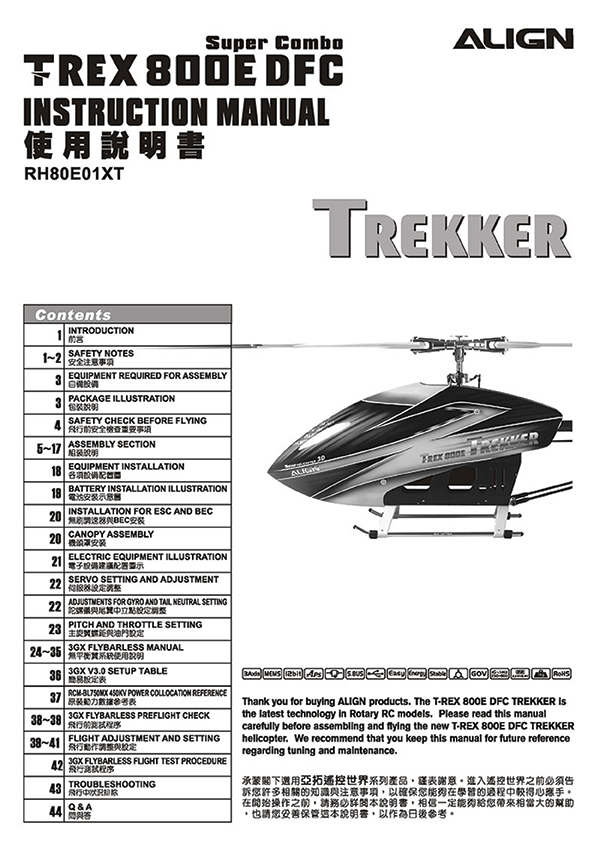

Manual covers assembly, setup and parts list.
