Description

ALIGN T-REX 760X Dominator Top Combo / Kit (RH76E01AT–RH76E04XT)

760-class flybarless electric helicopter running on 12S power (two 6S LiPo packs). Ships with both 3D and F3C main rotor holder arms.

• Main blades: 760 mm carbon (1702 mm rotor diameter)
• Tail blades: 105 mm carbon, 3-blade tail (287 mm tail rotor diameter)
• Power: 2 × 6S LiPo, 4500–6000 mAh
• Gear ratio: 9.33:1:4.43
• Motor: ALIGN 850MX 490KV
• Top Combo also includes: Platinum HV 200A ESC, 3 × DS820M cyclic servos, DS825M tail servo, Microbeast PLUS flybarless unit
• Weight: approx. 3.75 kg without batteries

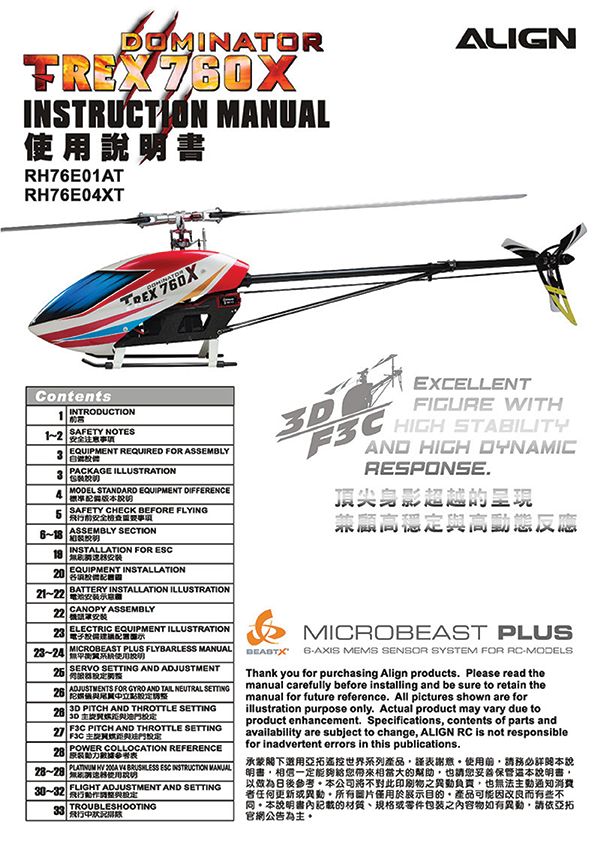

Manual version: December 12, 2019 (original release). Covers assembly, setup and parts list.
