Description

ALIGN T-REX 470LT Super Combo (RH47E09XT)

470-class flybarless electric helicopter with 470EFL rotor head and torque tube tail drive, running on 6S LiPo power.

• Main blades: 380 mm carbon (850 mm rotor diameter)
• Tail blades: 69 mm (181 mm tail rotor diameter)
• Power: 6S 22.2V LiPo, 1400–1850 mAh
• Gear ratio: 11:1:3.71
• Motor: ALIGN 470MX 1800KV
• ESC: RCE-BL50X 50A with adjustable 5.0–8.4V BEC
• Servos: 3 × DS450M cyclic, DS455M tail (HV brushless, metal case)
• Flybarless: Microbeast PLUS
• Weight: approx. 871 g without battery

Model history

• Released: Mid-2017

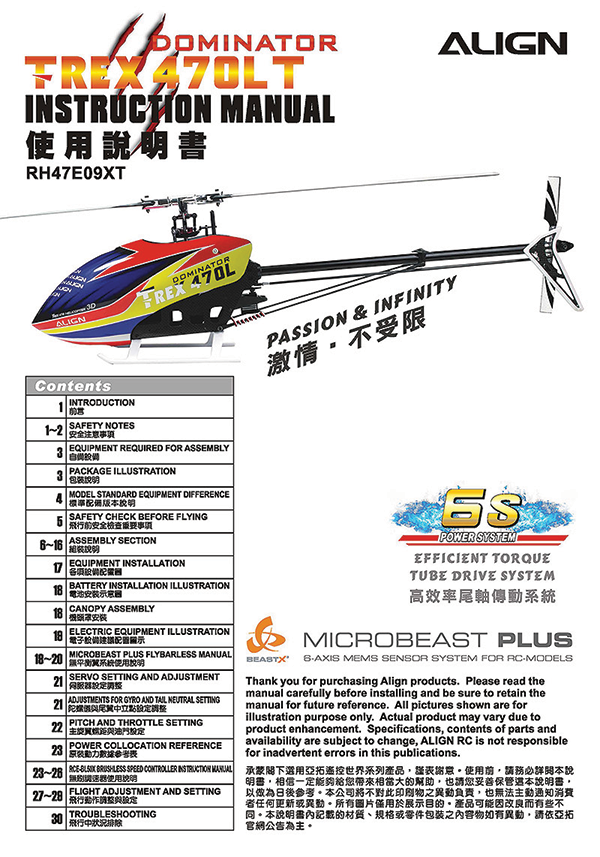

Manual covers assembly, setup and parts list. Updated revision; supersedes the January 15, 2022 edition.
