Description

ALIGN T-REX 470LP Super Combo / Kit (RH47E02XT / RH47E03XT)

470-class flybarless electric helicopter with 470EFL rotor head and belt-driven tail, running on 6S LiPo power. The lightest and most affordable of the 470L series.

• Main blades: 380 mm carbon (850 mm rotor diameter)
• Tail blades: 69 mm (181 mm tail rotor diameter)
• Power: 6S 22.2V LiPo, 1400–1850 mAh
• Gear ratio: 11:1:3.73
• Motor: ALIGN 470MX 1800KV
• Kit (RH47E03XT): airframe, 470MX motor, main and tail blades (ESC, servos and flybarless unit not included)
• Super Combo (RH47E02XT): Kit plus RCE-BL50X 50A ESC, 3 × DS450 cyclic and DS455 tail servos (HV brushless) and Microbeast PLUS flybarless unit
• Weight: approx. 840 g without battery

Model history

• Released: Late 2016

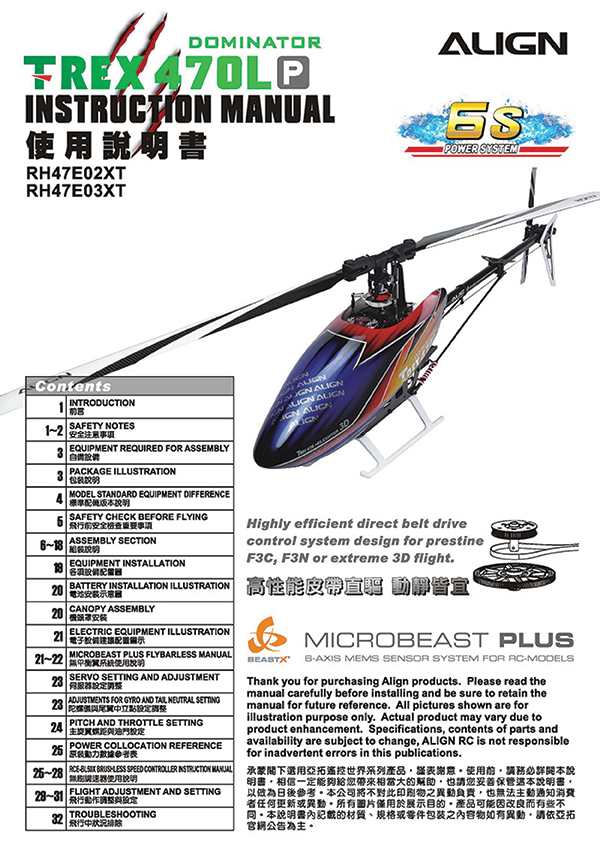

Manual covers assembly, setup and parts list for both versions. Original release edition; see the January 31, 2024 revision for the latest manual.
