Description

ALIGN T-REX 470LM Super Combo / Kit (RH47E01XT / RH47E06XT)

470-class flybarless electric helicopter with 470EFL rotor head and belt-driven tail, running on 6S LiPo power.

• Main blades: 380 mm carbon (850 mm rotor diameter)
• Tail blades: 69 mm (181 mm tail rotor diameter)
• Power: 6S 22.2V LiPo, 1400–1850 mAh
• Gear ratio: 11:1:3.73
• Motor: ALIGN 470MX 1800KV
• ESC: RCE-BL50X 50A with adjustable 5.0–8.4V BEC
• Kit (RH47E06XT): airframe, 470MX motor, RCE-BL50X ESC, main and tail blades (servos and flybarless unit not included)
• Super Combo (RH47E01XT): Kit plus 3 × DS450M cyclic and DS455M tail servos (HV brushless, metal case) and Microbeast PLUS flybarless unit
• Weight: approx. 860 g without battery

Model history

• Released: Late 2016

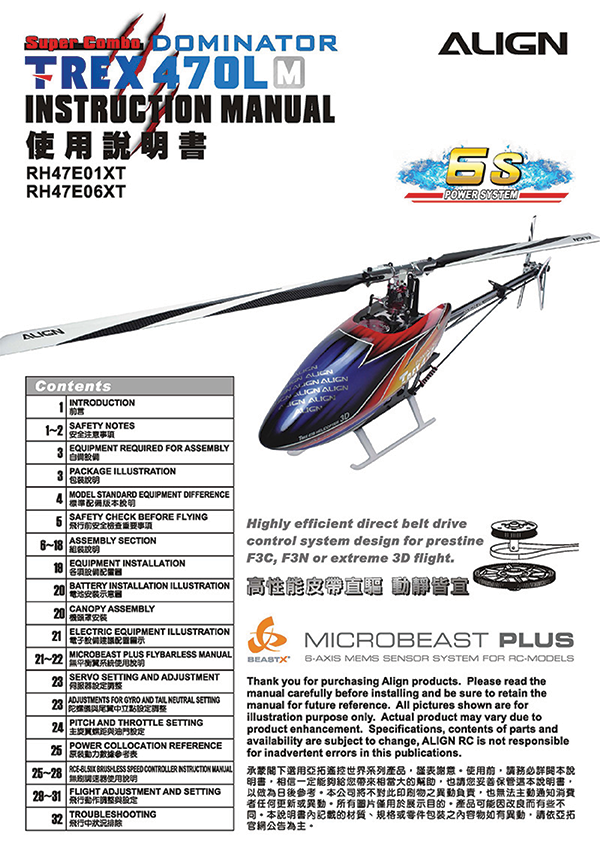

Manual covers assembly, setup and parts list for both versions. Updated revision; supersedes the October 24, 2016 edition. See the January 31, 2024 revision for the latest manual.
