Description

ALIGN T-REX 300X Dominator RTF Super Combo / Combo (RH30E01XT / RH30E02XT)

300-class flybarless electric helicopter with DFC rotor head and belt-driven tail, running on 3S LiPo power.

• Main blades: 230 mm carbon (525 mm rotor diameter)
• Tail blades: 50 mm (143 mm tail rotor diameter)
• Power: 3S 11.1V LiPo, 1300 mAh
• Gear ratio: 8.21:1:3.08
• Motor: ALIGN 300MX 3700KV
• ESC: RCE-BL25A 25A with adjustable 5.0–8.4V BEC
• Servos: 3 × DS450 cyclic, DS455 tail (digital HV)
• Combo (RH30E02XT): airframe, blades, motor, ESC, servos
• RTF Super Combo (RH30E01XT): Combo plus MiniGRS flybarless system, A10 transmitter, Mini A.BUS receiver, 3S 1300 mAh battery and RCC-3SX charger
• Weight: approx. 418 g without battery

Model history

• Released: Later in 2019
• Status: Discontinued (late 2025 / early 2026)
• Superseded by: No direct replacement

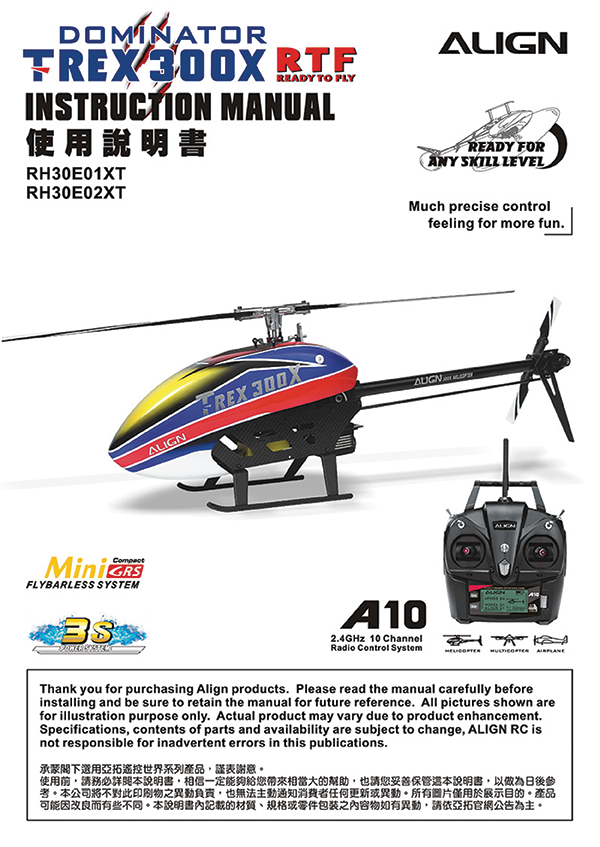

Manual covers assembly, setup and parts list for both versions.
