After performing many tests to determine the most efficient aerodynamic canopy we are pleased to release this brand new lightweight canopy! This ultimate canopy made of glass and carbon fiber is lightweight and achieves the best dynamic performance. The canopy has a new unique paint scheme for the latest member of the T-REX family.
Maintaining the proper Center of Gravity CG is essential for helicopters. After extensive Research and Development, moving the engine forward allowed the fuel tank to be positioned in the center of the main shaft. This optimum location for the fuel tank permits the 600XN to maintain consistent CG as the fuel level changes during flight.
Designed specifically for helicopters, utilizing a brushless motor for fast speed, high torque, and superior, efficient reaction time allows the Align 600XN precise, fast performance. The brand new DS820M high voltage brushless servo has a with a new CNC machined aluminum case. The new aluminum case design is aesthetically appealing while acting as a highly efficient heat sink for superior protection of the servo,
High voltage output: 6A 7.4V BEC with down / regulation system for stable power to the CCPM server channel for receivers and servos. Includes a built-in one-button push glow plug igniter eliminating the hassle of using traditional electric clip plug on igniters. Also increased external high-frequency filter capacitance to effectively reduce the interference generated by external noise; such as high-speed and high torque servos.

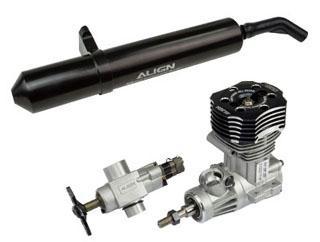

MADE IN JAPAN ALIGN Hyper engine for superior 55 size helicopter
●40L dual needle carburetor allows for precise adjustment.
●Delivers more horsepower for higher head speed.
●Brand new crankshaft design. Increase the efficiency of intake/exhaust and makes the power stronger.
●Besides good looks and excellent cooling, the engine is machined blue alumite heat sink head also boosts combustion efficiency for more power stability.
●Same size connector to the mount and the muffler as what Align 50 Hyper engine to Maximize the efficiency when operating with ALIGN 50 High-Performance Muffler.
- T-REX 600XN Nitro Kit
- Align 55H Engine
- Align 50 High Performance Muffler
- DS825M HV Brushless Servo x 3 Freq: 200hz
- DS820M HV Brushless Servo Pulse: 1520µs / Freq: 333hz
- DS530 HV Brushless Throttle Servo
- B6M 2 In 1 HV Regulator Remote Glow
- Beastx Governor Sensor
- 600 Nitro Carbon Fiber Blades
- 95mm 3K Carbon Fiber Tail Blades
- Length: 1152mm - 45.35In
- Height: 356mm - 14.01In
- Width: 189mm - 7.44In
- Main Blade Length: 600mm - 23.62In
- Main Rotor Diameter: 1354mm - 53.31In
- Tail Rotor Diameter: 260mm - 10.24In
- Motor Drive Gear: 20T
- Main Drive Gear: 170T
- Autorotation Tail Drive Gear: 180T
- Tail Drive Gear: 40T
- Drive Gear Ratio: 8.5 : 1 : 4.5
- Fule Tank Capacity: 440cc
- Takoff Weight: Approx 3400g - 7.50Lbs
Additional Equipment Required for Assembly
- Transmitter (6-channel or more, helicopter system)
- Receiver (6-channel or more)
- FBL Unit - Recommend BeastPlus
- 2S Li-Po 1900 ~ 2800mAh Recommend 2800mAh HBP28003
- Swashplate Leveler H70118
- Digital Pitch Gauge HET80001
- Hex Screw Driver Set HOT00002
- Engine Starter HFSSTQ01
- Fuel Pump Recommend Jersey Modeler
