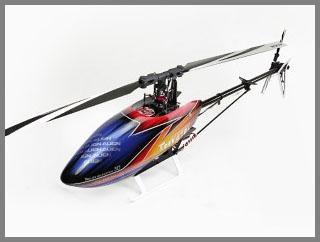

Following the release of the T-REX 450L, which introduced an innovative design and came equipped with high-end electronic equipment. Align's most anticipated helicopter release in 2016 the T-REX 470L is born. No matter whether you are a newcomer or a professional, the brand new T-REX 470L will give you the new flying feel again.
470EFL Main Rotor Head provides superior flight stability and offers a lower CG design to reduce flying resistance while providing a more rigid and fast rotor head response. To improve the strength and durability of the main and feathering shaft the 470 main shaft outer dimension was increased from Ø5mm to Ø6mm, while the feathering shaft outer dimension was increased from Ø4mm to Ø5mm. The 470L has adopt a high standard 1.2mm 3K carbon fiber main frame and a wider body design which increases the size of the battery compartment allowing the use of larger capacity battery. The 470L utilizes a high efficient belt drive assembly design with an innovative adjustable belt guide pulley, providing a convenient way to adjust the belt tension by releasing or tightening the screw. This screw is used to maintain optimal belt tension improving the life of the belt and lowering maintains costs. The landing skid is tilted 5 degrees forward to improve crashworthiness and makes T-REX470L more avant-garde and dynamic.
The T-REX 470L is equipped with the large outer diameter 470MX motor (1800KV) which is highly efficient providing superior power, excellent torque, improved current draw, and a lower operating temperature which are excellent improvements as compared to the 460MX motor. The brand new DS450 digital cyclic servos and DS455 digital tail servo, support up to V8.4, high voltage input, improving the servos torque and speed. The new RCE-BL50X brushless ESC with an internal BEC provides 5.0V to 8.4V which can be set based on servo specification. The new high-end electronics effectively enhance flight performance.
Manufactured using the latest composite technology to embed brass inserts into main shaft bearing block, which enhance the structural integrity and strength. You can feel the solid structure even in extreme 3D flight.
Brand new latching battery tray which utilizes integrated mounting rails inside the frames to simplify insertion / removal of battery while providing protection for the battery.

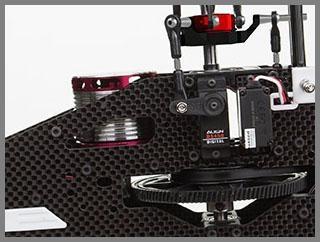

DS450M HV Cyclic and DS455 HV Rudder servos support up to 8.4V for superior responsiveness, extreme torque, and improved performance.

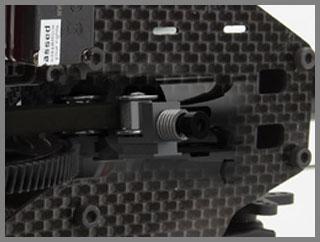

Innovative adjustable belt guide pulley, allows a convenient way to adjust the belt tension by releasing or tightening the screw. The screw is used to maintain optimal belt tension over time.
The One Way Bearing is manufactured using bearing steal, and after heat treatment, the hardness is HRC50-55. This larger bearing has a higher load carry capacity which reduces the loss of momentum and improves the efficiency, speed, and smoothness of the main rotor. The new main gear case and all-metal central pulley transmission system is an efficient design to deliver the ultimate performance.
Newly designed vertical tail servo mount to improve CG while increasing the responsiveness of 3D flight.
The newly designed dual point supported tail control assembly delivers slop free performance while improving rudder resolution and precision.
- T-REX 470LT Dominator Kit
- Microbeast PLUS Flybarless System
- RCE-BL50X Brushless ESC
- 470MX Brushless Motor (1800KV/2818)
- DS450 HV Brushless Servo x 3 Freq: 200Hz
- DS455 HV Brushless Servo Pulse: 1520µs / Freq: 333hz
- 380 Carbon Fiber Blades x 1 Set
- 69 Tail Rotor Blade x 1 Set
- Length: 755mm - 29.72In
- Height: 210mm - 8.27In
- Width: 108mm - 4.25In
- Main Blade Length: 380mm - 14.96In
- Main Rotor Diameter: 850mm - 33.46In
- Tail Rotor Diameter: 181mm - 7.13In
- Motor Pinion Gear: 11T
- Main Drive Gear: 121T
- Main Drive Pulley: 56T
- Tail Drive Gear: 15T
- Drive Gear Ratio: 11 : 1 : 3.73
- Weight (w/o Battery): 840g - 1.85Lbs
